The camera has the following key features:
- Equipped with a 3MP fixed lens and a 3MP PT lens, it simultaneously protects two different areas, effectively reducing blind spots. With full-color night vision functions, it ensures clear images even at night;
- The 4mm fixed lens offers a wide angle, and the 6mm PT telephoto lens details facial features and license plates;
- Automatic tracking of active objects. The interconnected lenses, together with human tracking algorithms, help to accurately record movements. In the TDSEE app, you can tap a point in the fixed area to make the PT lens move to that place;
- Wi-Fi 6 technology for smooth video. Wi-Fi 6, with a special antenna, offers improved anti-interference performance and reduced latency, thus extending the range of security;
- Three storage options. Videos can be saved to local Micro SD, cloud or NVR/NAS;
- Triple encryption protection. Triple encryption ensures data security during transmission, cloud storage, and account authentication.

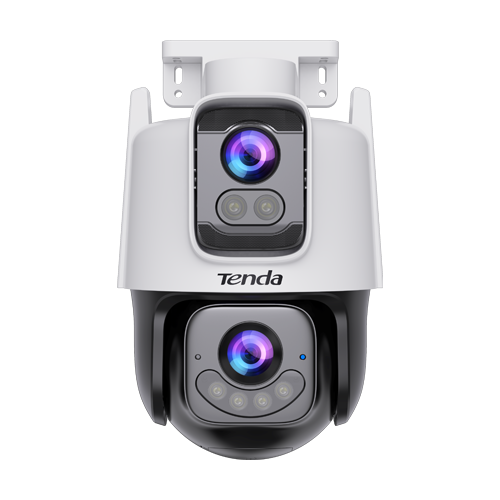

Technical specifications of the TENDA PT WI-Fi IP camera, 3MP+3MP, Dual-Lens, Audio, Alarm:
- Model / manufacturer: TENDA
- Fixed lens camera specifications:
- Sensor: 1/3″ Progressive Scan CMOS
- Resolution: 3MP (2304×1296), 1080P, 720P @ 25fps
- Camera lens: 4mm, Horizontal viewing angle 82.3
- Day/night illumination: White light and IR up to 30 meters
- Movable lens camera specifications:
- Sensor: 1/3″ Progressive Scan CMOS
- Resolution: 3MP (2304×1296), 1080P, 720P @ 25fps
- Lens: 6mm, Horizontal viewing angle 51.8
- IR Distance: White light and IR up to 30 meters
- PT: Pan range 0 ~ 355, Tilt range: 0 ~ 90
- General specifications:
- WDR: Digital WDR
- Video Analytics (VCA): Motion Detection / People and Vehicle Detection / Line Crossing Detection / Intruder Detection
- Compression: H.265/H.264
- Storage; Micro SD, up to 512 GB (not included)
- Audio: Built-in microphone and speaker
- Alarm: Audio and visual alert
- Wi-Fi: IEEE 802.11 b/g/n/ax, 2.4GHz, 287 Mbps
- Network interface: 1 x RJ45 10/100M
- Operating temperature; -30 C ~ +60C, IP65
- Power supply: 12V DC 1A
- Dimensions: 203mm x 122mm x 62mm
- Weight: 527g
