Swing gate automation kit 2×2.5m -MOTORLINE

MOTORLINE
Availability:

In stock


514,15 inc VAT

In stock

Bank transfer, Invoice with VAT or no VAT(VIES confirmation), VISA card, Mastercard credit card or PayPal. You can pay for your order comfortable cash on delivery in Bulgaria,Hungary and Greece Easy Returns 14 days for return for items in as new condition 5000+ Successful Worldwide Deliveries We ship from Europe. Shipping cost is from 10 euros depending on the country

Kit for swing gates automation, for residential, size 2.5m / sheet weight of 200 kg / sheet.
TELICA230-KIT at Motorline allows the opening of the doors to swing away from the axis of the hinge arm up to 350 mm.
Performance and high reliability motors suitable for thick poles, gantries, usable where they can mount linear automation beds.
Function configurable from the front panel: setting power opening / closing, locking delayed, closure delayed, gradual decrease in speed at the ends of the race, partial opening of the gate for pedestrian access, etc.
& nbsp;

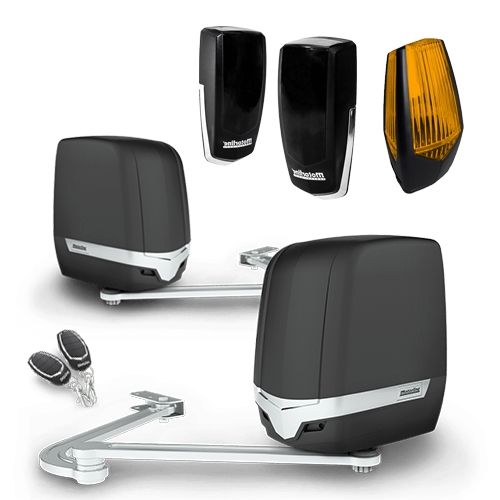

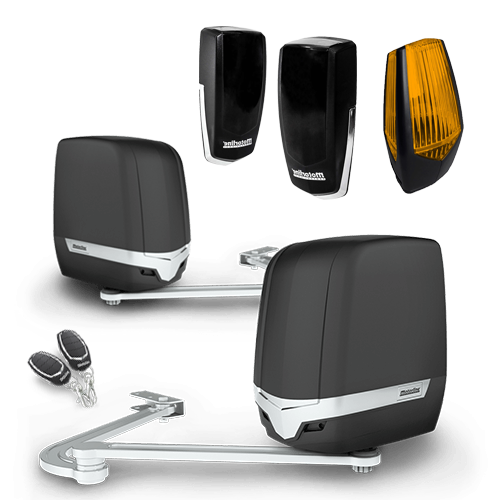

KIT Content:

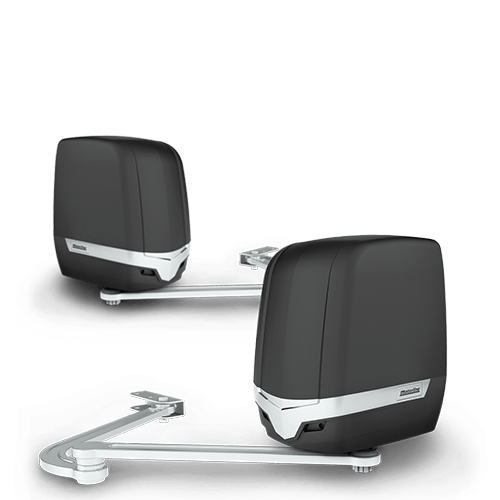

Engines 230 V shockproof construction in housing and the possibility of manual operation intenperii 2 pieces
Control panel – 1 piece
Remotes – 2 pieces
Photocells – 1 set
Warning light – 1 piece
Mounting accessories.
Manufacturer: MOTORLINE
Automation Type: Gate swing
Max. leaf 200kg
Max. leaf 2.5 meters
Cycle time: 25% (residential use)
Angle max. Opening 120-degree
Thermal protection: 120 C
Motor operating voltage 230V AC 50Hz
Power supply: 230V AC 50Hz
Motor traction force I 2300
Motor power: 180W
Operating temperature: -25 ~ + 55 ° C IP54

SKU: TELICA230-KIT Categories: ,
