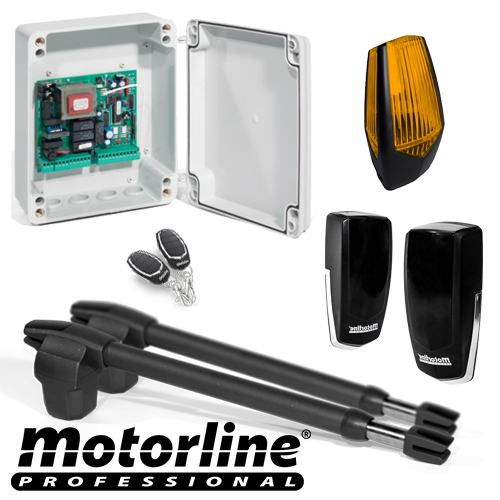

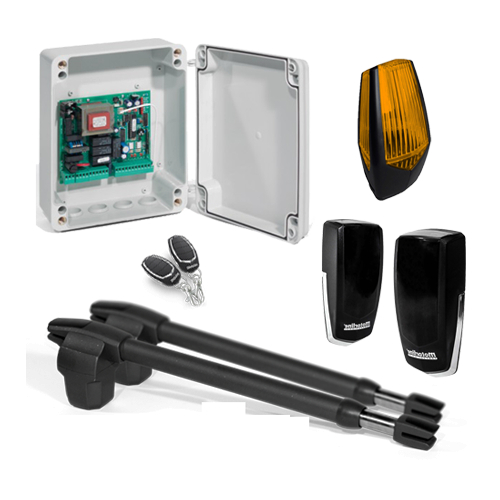

Kit for swing gates automation, for residential, size 4 m / sheet weight 350kg / sheet.
LINCE600-KIT from Motorline allows opening the gates swing both outwards and inwards.
Performance and high reliability, engines suitable for thick pillars, due to expandable spiral arms.
configurable functions of the central panel: adjustment force opening / closing, locking delayed locking timer, the gradual decrease of the speed at the ends race, partial opening for pedestrian access gate, etc.

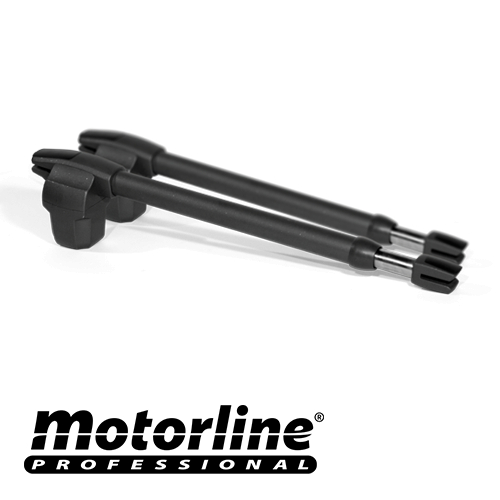

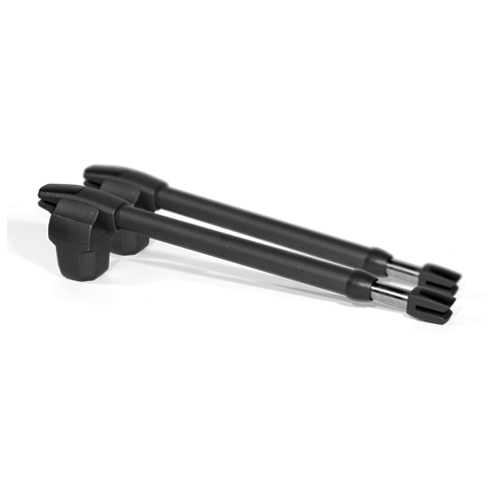

230 V screw motors integrated in metal construction shock resistance and the possibility of manual operation intenperii 2 pieces

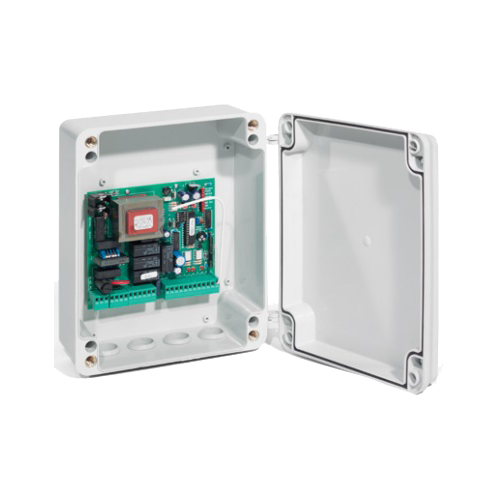

Control panel – 1 piece
Remotes – 2 pieces
Photocells – 1 set
Warning light – 1 piece
Type Automation: Swing Gate
Max. sheet 350kg
Max. sheet 4m
Opening speed: 0.6m / s
Work cycle: 25% (residential use)
Angle max. Opening: 120-degree
Race Engine 600mm
Thermal protection: 120 C
Motor operating voltage 230V AC 50Hz
Power supply: 230V AC 50Hz
Motor traction force: 2300 N
Motor power: 180W
Operating temperature: -25 ~ + 75 ° C IP54
Automation Type: swing gates
