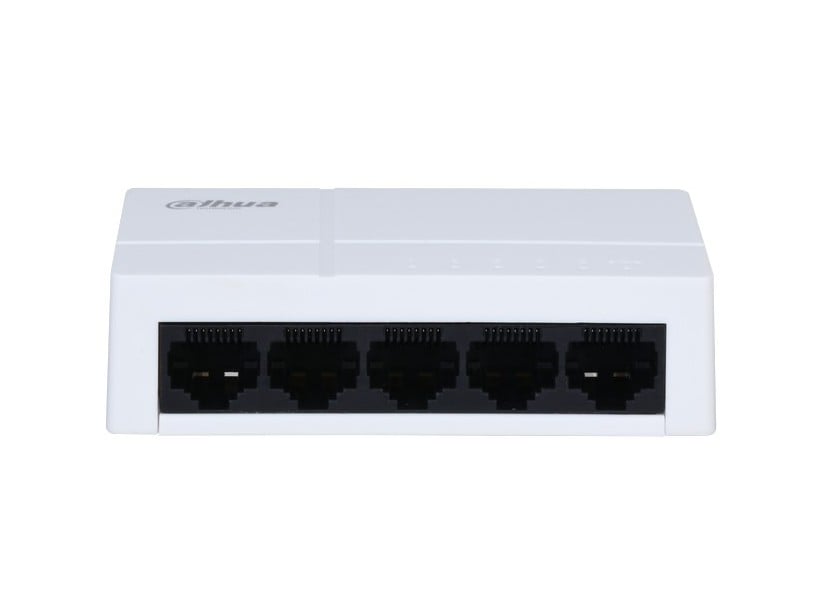

5-port Gigabit Switch, 5VDC, Plug and Play, Dahua PFS3005-5GT-L-V2

With a robust and modern design, the PFS3005-5GT-L-V2 switch features 5 Gigabit ports of 10 / 100 / 1000Mbps, with a power consumption of 1.5W.

The switch is powered at 5VDC, and the Plug & Play function offers simple device connection without requiring further configurations. The high performance of this switch is characterized by the ports’ ability to transmit streams at high speeds without any delays / interruptions.

Also, the device is easy to install, depending on your needs.

Technical specifications:

• ethernet port: 5
• ethernet port speed: 10/100/1000 mbps
• function slots: 5 × 10/100/1000 base-t (port 1-5)
• power supply: 5 vdc / 1 a
• operating temperature: 0°C +45°C
• operating humidity: 5% 95% rh
• storage temperature: -40°C +70°C
• storage humidity: 5% 95% rh
• power consumption: 0.5 w (idle) / 1.5 w (maximum)
• switching capacity: 10 gbit
• packet forwarding rate: 7.44 mpps
• packet buffer size: 1 mbit
• mac table size: 2k
• electrostatic protection: 8 kv (air) / 4 kv (contact)
• surge protection: 2 kv (common mode)
• net weight: 0.12 kg
• gross weight: 0.23 kg
• product dimensions: 86.4 × 52.0 × 23.0 mm
• packaging dimensions: 94.0 × 111.0 × 67.0 mm
• casing material: plastic
• certifications: ce, fcc
