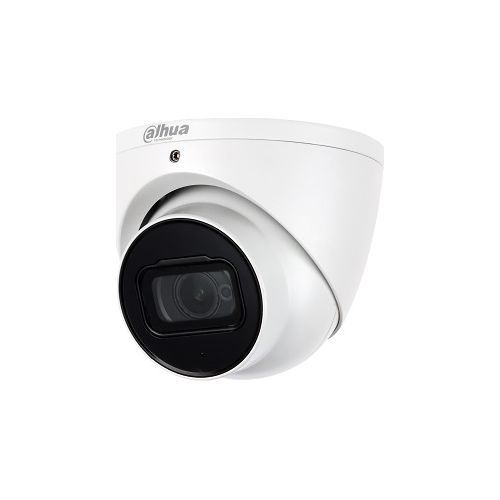

Surveillance camera Dahua HAC-HDW2249T-A-NI-0360B HDCVI Starlight Dome Full-color 2MP CMOS 1 / 2.8 ”, 3.6mm, WDR, Microphone, IP67

Bullet surveillance camera Dahua HDCVI and Analog Full-color Starlight HAC-HDW2249T-A-NI-0360B
The camera is equipped with an image sensor modern 1 / 2.8 “2MP Progressive Scan CMOS , which lets you capture video at a resolution of 2Mpx . technology Full Color and many correction functions available, including WDR, 3DNR ensures excellent image quality obtained. the optical system of the camera creates modern lens with a focal 3.6 mm.

The device is also equipped with an audio input and a microphone. The camera is characterized by a high degree of resistance to adverse weather conditions ( IP67 ).
& nbsp;
Camera Technology Full Color
Camera Dahua Full Color ensures images colors even light conditions very difficult . The ability to capture detailed pictures in low light comes from two advanced hardware technologies: objective F1 F1 advanced light sensor high-end . These features allow more light to enter the lens, thus increasing the brightness and image capture is possible in a full palette of colors, brightness and sharpness never seen CCTV systems.
OSD embedded
Camera HAC-HDW2249T-A-NI stands out from the competition through a quick and easy configuration of all settings and changes. The device is equipped with a OSD menu intuitive and clear, allowing you to change instantly available imaging parameters directly from the recorder synchronized with the corresponding calls. modern Menu screen change ensures remote monitoring system settings without having to physically interfere with one room. This possibility is a convenient solution that ensures user comfort and efficiency of work. Access to the interface itself can be initiated using on CoC (Control over Coax). The camera supports 11 languages ​​OSD (Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish).

Technical Specifications

Sensor
progressive scan CMOS 1 / 2.8 “2MP

Resolution
1920 (H) x 1080i HD (V), 2Mpx

Scanning System
Progressive

Instant
1 / 4s ~ 1 / 100,000s (PAL)
1 / 3s ~ 1 / 100,000s (NTSC)

sensitivity
0.001Lux / F1.0

Signal / noise
& gt; 65dB

Adjusting
Pan: 0 ° ~ 360 °
Tilt: 0 ° ~ 70 °
Rotation: 0 ° ~ 360

Goal

Type
Fixed focus

Focal Length
3.6 mm (F1.0)

angle view
H: 89.5 °

Focus adjustment
Constant

Macro mode
1600 mm (63 “)

Distance LIKE
Detection: 53m.
Note: 21m.
Recognition: 11m.
Identification: 5m

Images

Maximum Resolution
2Mpx 1920x1080p

processing speed and resolution
25/30 fps @ 2Mpx
25/30 fps @ 720p
50/60 fps @ 720p

Day night
Color

Compensation fund
BLC / HLC / WDR 120dB

Get control
Automatic control (AGC)

Noise Reduction
2D / 3D

white balance
Auto (AWB) / Manual

Connect

Video
1x 1 V pp, BNC, 75Ω (HD / CVBS)

Audio
1x input (RCA jack), built-in microphone

Power
1 x socket 5.5 / 2.1 cable

Features

Operating Mode
HD-CVI, HD-TVI, AHD, CVBS – Change DIP switch

OSD
yes

Languages ​​OSD
Polish, English, Chinese, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian

class tightness
IP67

General

Certificates
CE (EN55032, EN55024, EN50130-4)
FCC (FCC 47 CFR Part 15, Subpart B, ANSI C63.4-2014)
UL (UL60950-1 + CAN / CSA C22.2 no. 60950-1)
2020- 03-19

casing material
Aluminum

Power
12 V DC (± 30%)

Power consumption
2.4W max (12V DC)

humidity
0 ~ 95% (non-condensing)

ambient temperature
-40 ° C ~ + 60 ° C (-40 ° F ~ 140 ° F +)

working temperature
-40 ° C ~ + 60 ° C (-40 ° F ~ 140 ° F +)

Weight
480g

dimensions (W / H)
Ø106×99.2mm (Ø4.17 “x 3.9”)

& nbsp;
See pictures wherever you are!
Producers from Dahua allows users to download software on your mobile phone, allowing them to view live images and recordings made by surveillance systems. Also, downloading images can be done by computer browser.
Quick and easy!
gDMSS app for Android can be downloaded from HERE
iDMSS iPhone application can be downloaded HERE
