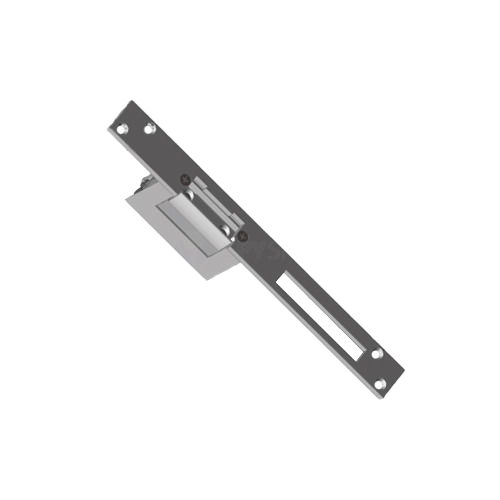

Electromagnet fail locked, 12V, 230mA mechanical memory, with long support plate – ASSA ABLOY YB17-12D-LH

YB17-12D-LH Strike Lock with Mechanical Memory

The YB17-12D-LH is a fail-locked strike lock equipped with a mechanical memory function, ideal for access control applications where temporary unlocking is required following a short command. Its recessed, fully reversible, and energy-efficient design makes it suitable for use in commercial and residential buildings.

Intelligent Operation with Mechanical Memory

The strike lock remains unlocked after a short power command, until a complete door opening/closing cycle is performed. This mechanism allows for efficient access management without requiring continuous power.

Robust and Durable Construction

Made from a die-cast zinc+aluminum alloy, the YB17-12D-LH ensures a mechanical resistance of up to 250 kg. It is designed for long-term reliability under heavy use conditions.

Versatile and Efficient Installation

The recessed mounting, adjustable strike plate, and compatibility with left or right-hand doors make this strike lock a flexible solution. Includes a long installation plate for easy integration into existing systems.

Main Technical Specifications

• Operating type: fail-locked with mechanical memory
• Remains unlocked after short power command
• Mechanical resistance: 2500N (250Kg)
• Power supply: 12Vdc / 230mA
• Coil resistance: 52 Ohm
• Material: die-cast zinc + aluminum
• Operating temperature: -15C to +40C
• Mounting: recessed, fully reversible
• Includes long mounting plate
• Not compatible with fire-resistant doors

Advantages

• Intelligent operation with temporary unlocking retention
• Low energy consumption
• Discreet and aesthetic mounting
• Universal compatibility for left/right doors
• Adjustable strike plate for precise positioning
• Mounting plate included for quick installation
• Increased security through fail-locked system
