Low consumption, fail secure, mechanical release, 12 VDC powered, strike electromagnetic lock – ASSA ABLOY E7E-E4139

Availability:

In stock
Add to wishlist

Without VAT

€30,68

In stock

Bank transfer, Invoice with VAT or no VAT(VIES confirmation), VISA card, Mastercard credit card or cash on delivery. You can pay for your order comfortable cash on delivery in Bulgaria, Hungary, Greece, Poland, Slovakia, Slovenia, Czech Republic and Croatia. Easy Returns 14 days for return items. We ship from Europe. Shipping cost is starting at 10.64 euros without vat depending on the country and weight. Free shipping on orders over €500, oversized deliveries may incur additional shipping charges depending on product weight and dimensions

ASSA ABLOY E7 Electromagnetic Lock 12V DC FaFix Adjustable Reversible DIN Mechanical Release

Overview
The ASSA ABLOY E7 electromagnetic lock is ideal for DIN doors, opening on the right or left, being completely reversible by rotating 180 degrees. It has an adjustable FaFix stopper for flexible positioning. The product is not recommended for fire-resistant doors and does not include a support plate.

Technical specifications

  • Power supply voltage: 12 Vdc

  • Consumption at 24 Vdc: 270 mA

  • Operating temperature: -15C to +40C

  • Breaking resistance: 3500 N (350 Kg)

  • Lock body material: die-cast zinc alloy

  • Stopper material: die-cast zinc alloy and brass

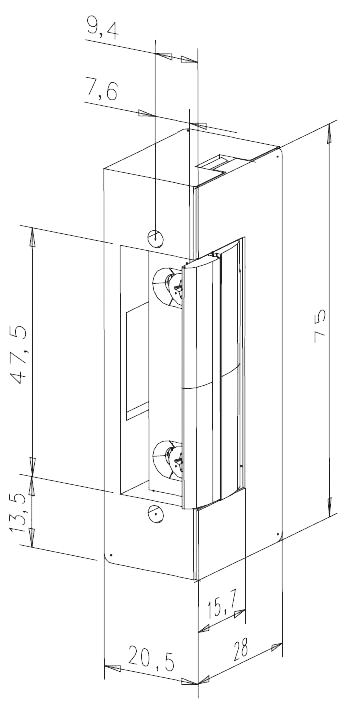

  • Dimensions: 75 x 20.5 x 28 mm

  • Mechanical release: Yes

  • Mechanical memory: No

Advantages

  • Adjustable stopper position via FaFix system

  • Completely reversible design, suitable for right or left DIN doors

  • Robust construction of metal alloys for durability and resistance

  • Safe operation within the specified temperature range

Recommended applications

The ASSA ABLOY E7 electromagnetic lock is suitable for interior and access doors, in commercial or residential spaces without fire resistance requirements, providing efficient access control.
