IP Camera, Wi-Fi, Dual-Lens Pan&Tilt 4MP, Two-Way Audio, Alarm, IR 30M, Color 24/7 – EZVIZ CS-H90(2x4MP)

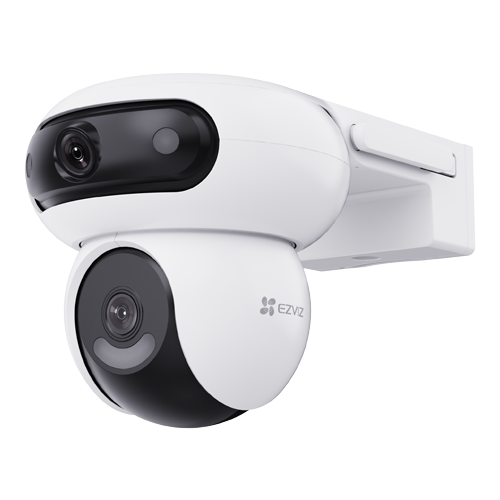

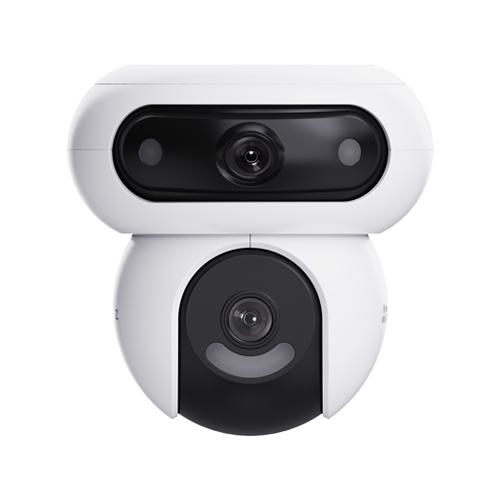

The H90 Dual is an advanced surveillance solution equipped with two independent lenses integrated into a compact housing. The system combines a Pan&Tilt lens with a second ultra-wide angle lens, providing extended monitoring without blind spots.

Technical specifications EZVIZ IP camera, Wi-Fi, Dual-Lens Pan&Tilt 4MP:

• Model / manufacturer: EZVIZ
• Image sensor: F1.6 @ 1/3″ Progressive Scan CMOS
• Resolution: 2K (2880 × 1620) @15fps
• Video compression: H.265 / H.264
• Illumination distance: White light up to 40 meters and IR up to 30 meters, 24/7 color images
• Lens: Upper lens: 2.8mm, viewing angle 110; Lower lens: 6mm, viewing angle 60
• PT Stroke: Pan: 324; Tilt: 90
• WDR: Digital WDR
• Wi-fi: IEEE802.11b, 802.11g, 802.11n, 2.4Ghz
• Wi-Fi distance: max. 220 meters in open field
• Audio: built-in microphone and speaker, two-way communication
• Recording: Micro SD, up to 512 GB (not included), EZVIZ CloudPlay storage
• Smart functions: AI-powered human/vehicle shape detection, Active defense with siren and strobe light, Color night vision, Auto-tracking, Smart integration with Google Assistant and Amazon Alexa, Enhanced dual Wi-Fi antennas, etc.
• Power supply: DC 12V /1.5A (power adapter included)
• Operating temperature: -30 ~ to 50 C, IP65
• Dimensions: 224 × 135 × 136 mm
• Weight: 723 gr.
• Box contents: – H90 Dual 2K+ Camera – Power adapter – Drilling template – Screw kit – Waterproof kit – Regulatory information x2 – Quick start guide

Intelligent motion control system

The H90 Dual uses a sophisticated mechanical system, based on three drive motors, that allows simultaneous and independent rotation of the two lenses. This configuration optimizes surveillance by simultaneously monitoring two distinct areas or by recording an activity from different perspectives and with more detail.

Automatic patrol and full coverage

At set time intervals, the lower lens can perform rotation checks to eliminate blind spots. You can customize patrol routes or enable full rotation mode for extended and automatic coverage.

Advanced motion detection and intelligent alerting

The H90 Dual can detect and classify moving objects, providing accurate real-time alerts. The system recognizes the difference between a person, a vehicle, and other moving objects, improving the accuracy of notifications and reducing unwarranted alarms. If a member of your family stops in front of the driveway or someone parks in the detected area, you will be notified immediately.

Active surveillance and intruder deterrent measures

The H90 Dual is equipped with the advanced EZVIZ active defense function, providing additional protection. Upon detecting an intruder, the system automatically triggers a high-intensity siren and activates two bright spotlights, designed to deter unauthorized access. This technology contributes to the protection of the monitored perimeter through a rapid and effective response to suspicious events.
