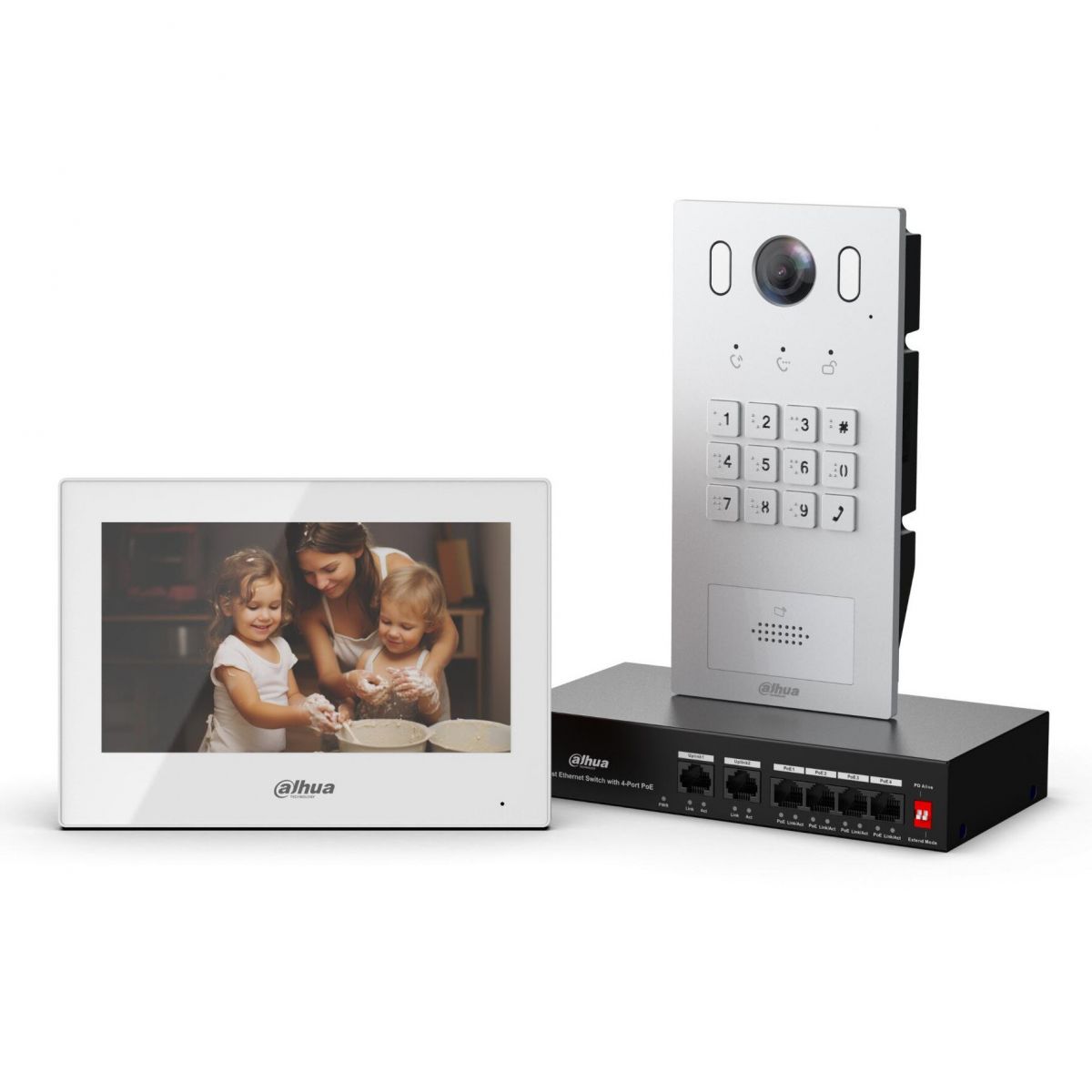

IP video intercom kit Dahua KTP05, 2MP camera, 7 inch touch monitor, PoE, RFID and PIN access control, mobile app, WDR, IP65, smart video intercom system for home and business

Dahua KTP05 is a modern IP video intercom kit designed for access control and efficient monitoring of homes or commercial spaces, offering an excellent balance between performance and ease of use.

The system includes an outdoor station equipped with a 2 MP camera, capable of delivering clear and detailed images even in difficult lighting conditions, thanks to features such as WDR and digital noise reduction. The wide viewing angle allows surveillance of an extended area, increasing the level of security.

The outdoor station is built for outdoor use, featuring protection against water and mechanical shocks. It allows access through multiple methods, including PIN code, card, or remote control via mobile application.

Indoors, the kit includes a 7-inch touchscreen monitor with 1024 x 600 resolution, which allows clear viewing of video calls and easy management of system functions. Two-way audio communication ensures clear interaction with visitors.

The system supports a large number of users and cards, making it suitable for both individual homes and small or medium buildings. It also offers smart functions such as video message recording when you do not answer and remote control capability.

Connectivity is achieved via IP network, and PoE power supply simplifies installation by eliminating the need for additional cables. The system can be integrated with other security equipment, providing extended access control.

Dahua KTP05 stands out through its modern design, solid construction and advanced functions, being a complete and reliable solution for securing access to a property.

Technical specifications IP video intercom kit Dahua KTP05, 2MP camera, 7 inch touch monitor, PoE, RFID and PIN access control, mobile app, WDR, IP65, smart video intercom system for home and business:

General specifications:

IP video intercom kit (outdoor station + indoor monitor)

Operating system: embedded Linux

Interoperability: ONVIF

Network protocols: SIP, P2P, IPv4, DNS, RTSP, RTP, TCP, UDP

Outdoor station camera (VTO)

Sensor: 1/2.9″ CMOS, 2 MP

Video resolution: up to 720p (main stream), substream up to 1080p

Viewing angle: approx. 140 horizontal, 80 vertical, 160 diagonal

WDR: 120 dB

Noise reduction: 3D NR

Video compression: H.264, H.265

Frame rate: up to 25 fps

Day/night mode: automatic

Illumination: white light

Audio

Two-way audio

Audio compression: G.711a, G.711u, PCM

Built-in microphone

Integrated speaker

Functions: noise reduction and echo cancellation

Indoor monitor

Display: capacitive TFT touch

Screen size: 7 inch

Resolution: 1024 x 600

Access control

Unlock methods: PIN, IC card, mobile app

Capacity: up to 5000 users

Support: up to 10000 cards

Wiegand interface

Power and connectivity

Power supply: PoE (802.3at) or 12 V DC

Consumption: approximately 600 mA

Connectivity: IP network

Video decoding: H.264 / H.265

Inputs / outputs

6 alarm inputs

1 alarm output

Construction and protection

Material: aluminum front panel

Mechanical keypad

Protection rating: IP65

Impact resistance: IK08

Other features

Real-time audio-video communication

Remote control via mobile application

Compatibility with Dahua IP equipment

Suitable for residential and small commercial use
