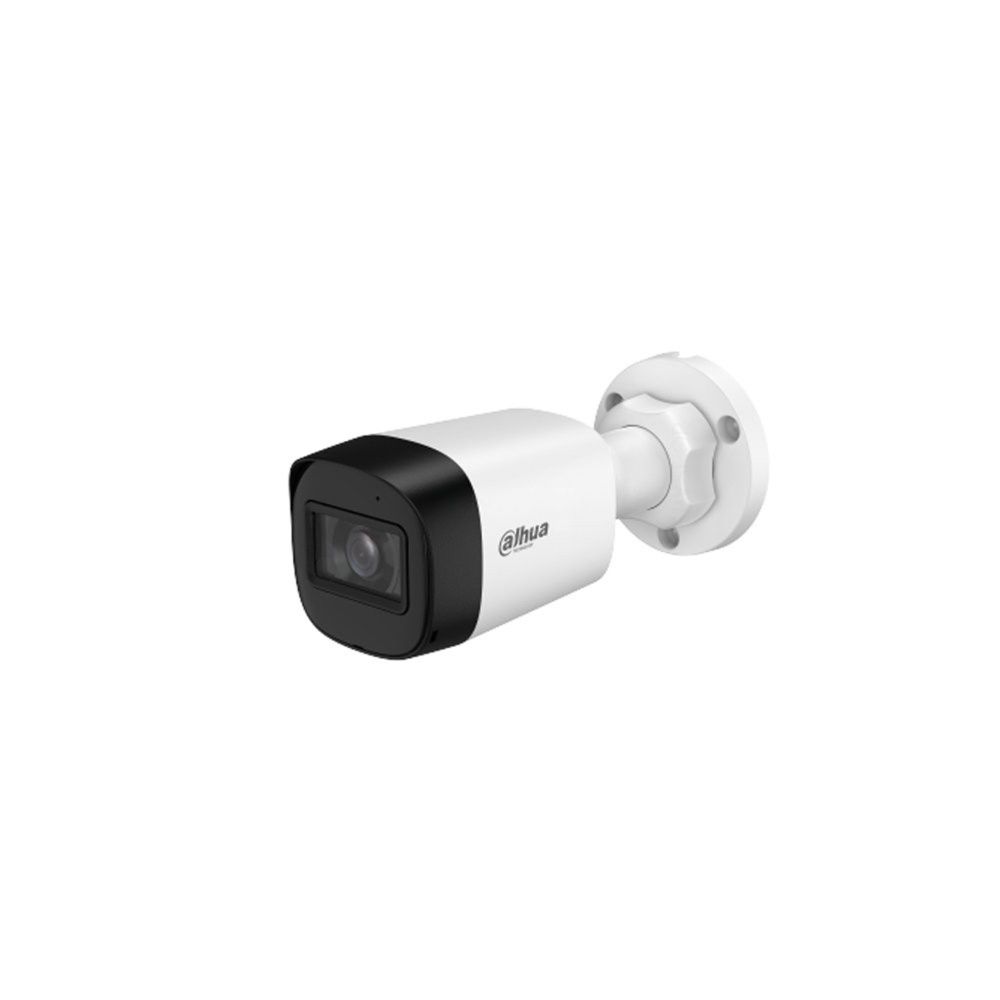

Dahua HAC-HFW1500RL-0280B-S3-DIP outdoor surveillance camera, 5 MP, IR 30 m, 2.8 mm

The Dahua HAC-HFW1500RL-A-0280B-S3 is an outdoor HDCVI surveillance camera, designed for residential, commercial, and industrial applications where clear images are required. The camera offers 5MP resolution, making it suitable for identifying relevant details in areas such as courtyards, parking lots, access paths, or outdoor perimeters.

Technical specifications of the outdoor camera Dahua HAC-HFW1500RL-0280B-S3-DIP, 5 MP, IR 30 m, 2.8 mm:

• Image sensor: 5 MP CMOS
• Resolution: 5 MP (2880 × 1620 pixels)
• Scanning system: Progressive
• Electronic shutter speed: PAL: 1/25 s – 1/100000 s; NTSC: 1/30 s – 1/100000 s
• Minimum illumination: 0.01 lux (F1.6, color), 0.001 lux (F1.6, black and white), 0 lux with illuminator active
• Signal-to-noise ratio (SNR): > 65 dB
• IR illumination distance: up to 30 m
• Illuminator control: Auto / Manual
• IR LEDs: 3 × IR LED
• Angle adjustment: Pan 0°–360°, Tilt 0°–90°, Rotation 0°–360°
• Lens type: Fixed, 2.8 mm
• Lens mount: M12
• Maximum aperture: F1.6
• Field of view: 113° horizontal, 62.1° vertical, 134.3° diagonal
• Video standards: CVI, TVI, AHD, CVBS
• Frame rate: up to 25 fps (PAL), up to 30 fps (NTSC)
• Day/night mode: Auto ICR, Color, Black and White
• Light control: BLC, HLC, DWDR
• White balance: Auto, Area
• Noise reduction: 3D NR
• Illumination mode: Smart IR
• Image mirroring: Yes
• Privacy masking: up to 8 zones, enable/disable
• Video output: 1 × BNC, selectable CVI / TVI / AHD / CVBS
• Supply voltage: 12 VDC ±30%
• Maximum power consumption: 3.7 W (with IR active)
• Operating temperature: -40°C to +60°C
• Humidity: < 95% RH, non-condensing
• Protection rating: IP67
• Casing material: Plastic
• Dimensions: 161.6 × 70.0 × 69.7 mm
• Net weight: 0.20 kg
• Mounting: Wall, ceiling, or pole
