Dahua complete surveillance kit 8 cameras 2MP Infrared 40 meters IP67, DVR 8 channels WizSense 1080N/720p, mounting accessories

For those who want impeccable security and top performance, the Dahua surveillance kit , composed of 8 HAC-HFW1200TH-I4-0280B-S5 cameras and the XVR1B08-I DVR , is the perfect choice. The robust cameras offer clear images at Full HD resolution, IR illumination up to 40 meters for monitoring at night, and resistance to extreme conditions. In the center of the kit, the DVR integrates smart technology, multiple compatibility and efficient storage with Smart H.265+. This package is ideal for monitoring homes, offices or industrial spaces, offering a perfect balance between advanced technology and ease of use.

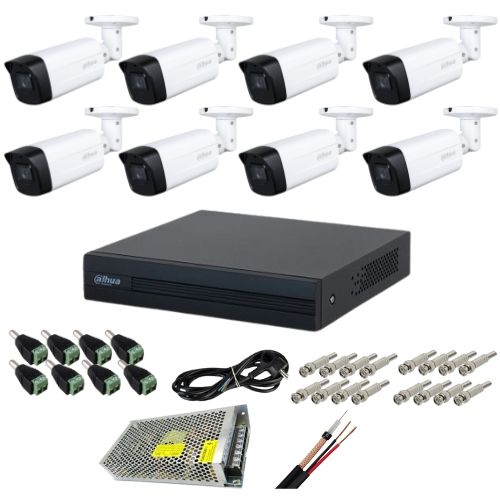

Dahua complete surveillance kit components:

• 8 x Dahua HDCVI Cameras 2MP, HAC-HFW1200TH-I4-0280B-S5 , Smart IR 40m, 2.8mm lens, IP67
• 1 x DVR Dahua AI WizSense, XVR1B08-I , 8 channels, 1080N/720p, Pentabrid
• 1 x RG59 coaxial cable with power supply 2×0.75 mm roll 100 m
• 16 x BNC plug connectors with screw for coaxial cable
• 1 x Power supply 12V 20A
• 1 x Mains power cable with SHUCKO plug and 3 wires
• 8 x TATA power plugs with screw

Dahua HDCVI camera 2MP, Smart IR 40m, 2.8mm lens, IP67 – HAC-HFW1200TH-I4-0280B-S5

The Dahua HAC-HFW1200TH-I4-0280B-S5 HDCVI camera offers a resolution of up to 1080p at 30fps, with switchable HD/SD output. It has a fixed lens of 2.8mm and intelligent IR illumination, with a maximum range of 40m for visibility at night. The IP67 resistant housing makes it ideal for outdoor use.

Technical specifications of the Dahua 2MP HAC-HFW1200TH-I4-0280B-S5 camera:

• Manufacturer: DAHUA

• Sensor: 1/2.7 inch CMOS

• Resolution: 2MP

• Lens: 2.8mm viewing angle 101

• Minimum illumination: 0.02 Lux/F1.9, 30IRE, 0 Lux IR on

• IR distance: 40m
• Special functions: BLC/HLC/DWDR

• Plug: BNC

• Video output: CVI/TVI/AHD/CVBS

• Audio: It doesn”t have

• Power supply: 12V ±30% DC

• Consumption: Max 2.8W (12V DC, IR on)

• Operating temperature: From -40C to +60C

• Degree of protection: IP67

• Case type: Bullet, metal+plastic

• Dimensions: 240.7 mm × 90.7 mm × 90.4 mm

• Weight: 0.41 Kg


Smart IR technology from Dahua

It is designed to optimize the infrared (IR) lighting depending on the distance between the surveillance camera and the filmed object. This prevents overexposure of images in low light conditions, providing clear details, even at night.

Main features:

• Adaptive IR intensity control: The camera automatically adjusts the intensity of the IR light to avoid the “whitening” effect of objects close to the camera.
• Improved distance visibility: Smart IR ensures that objects further away from the camera are well-lit and clear.
• Nighttime performance: This technology is ideal for nighttime monitoring scenarios, offering a balanced image regardless of lighting conditions.
• Through Smart IR, Dahua cameras offer high quality images even in total darkness, being an excellent solution for surveillance in various environments.

Download the technical sheet

DVR Dahua XVR1B08-I AI WizSense, 8 channels, 1080N/720p, Pentabrid

Dahua XVR1B08-I is a state-of-the-art DVR offering advanced functions, such as SMD Plus on 4 analog channels, for accurate alarms when detecting people and vehicles. With 8-channel AI encoding, it optimizes storage and bandwidth, maintaining essential details in videos. Compatible with HDCVI, AHD, TVI, CVBS and IP video inputs, it supports up to 10 IP cameras up to 6 MP and a data stream of 40 Mbps. Smart H.265+ and H.265 technology allows efficient data compression, ensuring significant savings without compromising quality.

Dahua 8-channel WizSense Audio DVR technical specifications:

• Main processor: Built-in processor
• Operating system: Embedded Linux
• SMD Plus: 4-channel performance; AI search Search by target classification (human, vehicle)
• Analog camera input: 8 channels, BNC
• CVI camera input: 1080p at 25/30 fps, 720p at 25/30 fps
• AHD camera input: 1080p at 25/30 fps, 720p at 25/30 fps
• TVI camera input: 1080p at 25/30 fps, 720p at 25/30 fps
• CVBS camera input: PAL/NTSC
• IP camera input: 8+2 channels, each channel up to 6MP
• Audio Input/Output: 1/1, RCA
• Bidirectional communication: Only through RCA ports
• Compression: AI/H.265+/H.265/H.264+/H.264 encoding
• Resolution: 1080N; 720p; 960H; D1; CIF
• Recording rate: Main stream: 8 channels: first channel 1080N/720p (1 fps25/30 fps), others 1080N/720p (1 fps15 fps); 960H/D1/CIF/(1 fps25/30 fps) Sub stream: 8 channels: CIF (1 fps7 fps)
• Bit rate: 32 kbps4096 kbps per channel
• Registration method: Manual; Program (General, Continuous); MD (Video detection: motion detection, video loss, manipulation); Alarm; Stop
• Recording interval: 1 min 60 min (default: 60 min), Pre-recording: 1 s30 s, Post-recording: 10 s300 s
• Audio compression: G.711A; G.711U; PCM
• Audio bit rate: 64 kbps per channel
• Interface: 1 HDMI; 1 VGA
• Resolution: 1920 × 1080, 1280 × 1024, 1280 × 720
• Interface: 1 RJ-45 port (100 Mbps)
• Network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wifi; 3G/4G; SNMP; UPnP; RTSP; UDP; SMTP; NTPs; DHCP; DNS; IP filter; PPPoE; DDNS; FTP; Alarm server; P2P; IP Search (Accept Dahua IP Camera, DVR, NVS, etc.)
• Max. User access: 128 users
• Interoperability: ONVIF 16.12, according to CGI
• Trigger events: recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
• Video detection: Motion detection, MD areas: 396 (22 × 18), video loss, manipulation and diagnosis
• Alarm input: No
• Relay output: No
• HDD: 1 SATA port, capacity up to 6 TB
• Auxiliary interface: USB 2 USB ports (USB 2.0)
• Power supply: DC 12 V/1.5 A
• Power consumption (without HDD): < 7 W
• Dimensions: 197.0 mm × 202.9 mm × 41.5 mm
• Net weight (without HDD): 0.56 kg
• Operating conditions: From 10 C to +45 C

SMD Plus (Smart Motion Detection Plus) from Dahua

It is an advanced motion detection technology that provides more accuracy and reduces the number of false alarms. Here are some essential features of SMD Plus:

• Filtering false alarms : SMD Plus uses artificial intelligence algorithms to distinguish people and vehicles from other moving objects (such as animals, leaves or shadows), significantly reducing the number of false alarms.
• Accurate detection of people and vehicles : The system can identify and classify detected objects, focusing only on people and vehicles, which allows for more efficient monitoring and a quick response to important events.
• Extended compatibility : SMD Plus is compatible with various Dahua cameras, from entry-level cameras to more advanced models, offering flexibility in configuring the surveillance system.

Download the technical sheet
