Wi-Fi 7 Access Point, BE9300 Tri-Band, 4/6 dBi, 1 x RJ45 2.5G, BLE 5.2, GNSS, PoE In – TP-Link Omada EAP772-Outdoor

Availability:

In stock
Add to wishlist

Without VAT

€223,60

In stock

Bank transfer, Invoice with VAT or no VAT(VIES confirmation), VISA card, Mastercard credit card or cash on delivery. You can pay for your order comfortable cash on delivery in Bulgaria, Hungary, Greece, Poland, Slovakia, Slovenia, Czech Republic and Croatia. Easy Returns 14 days for return items. We ship from Europe. Shipping cost is starting at 10.64 euros without vat depending on the country and weight. Free shipping on orders over €500, oversized deliveries may incur additional shipping charges depending on product weight and dimensions

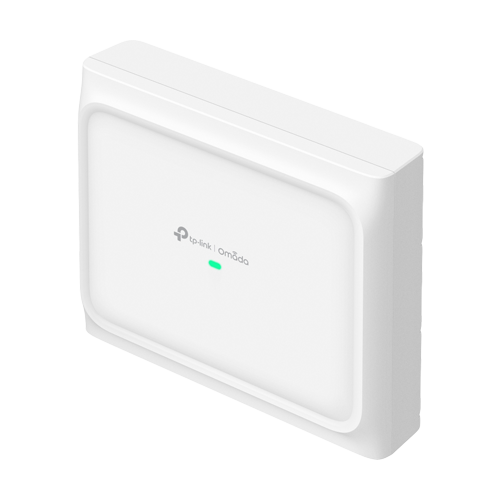

TP‑Link EAP772‑Outdoor Access Point Wi‑Fi 7 Tri‑Band, IP68 resistant


Professional outdoor access point, part of the Omada Wi‑Fi 7 series (802.11be/ax standards). Designed for outdoor use in demanding environments, it offers omnidirectional coverage and combined speeds of up to 11 Gbps. It is easy to integrate into the Omada SDN network, with centralized cloud management and intelligent roaming.

Hardware & network specifications

  • Wi‑Fi Technologies: 2.4 GHz/5 GHz/6 GHz (tri‑band), IEEE 802.11a/b/g/n/ac/ax/be standards support

  • Maximum theoretical speed: 11 Gbps total (6 GHz 5.76 Gbps + 5 GHz 2.88 Gbps + 2.4 GHz 0.688 Gbps)

  • Internal antennas: dual‑polarized 2×4 dBi at 2.4 GHz, 2×56 dBi at 5 and 6 GHz

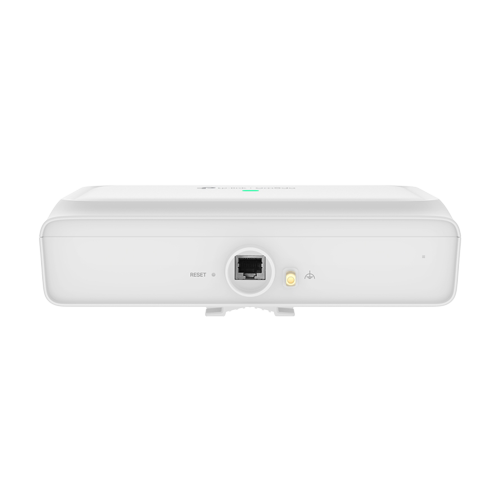

  • Uplink port: 1×RJ‑45 2.5 Gbps PoE+ (802.3at) and compatibility with alternative DC power; consumption approx. 2325 W

Construction and resistance

  • IP68 protection rating, completely sealed against dust and can be submerged up to 1.5 m for 1 hour

  • Resistance to extreme temperatures: 30 C to +70 C, controlled humidity

  • Robust housing for wall or pole mounting, including mounting kit and sealing elements

Network and usage functionalities

  • Tri‑band omnidirectional with AFC support for the 6 GHz band, improving outdoor coverage

  • Support for Multi‑Link Operation, OFDMA, MU‑MIMO, BSS Coloring, beamforming, 802.11k/v/r intelligent roaming

  • Sustained capacity of over 250 simultaneous clients, up to 380 devices connected

  • Recommended coverage: ~300 m² (courtyard, parks, outdoor areas)

Management and integration

  • Integrable into the Omada SDN ecosystem with automated adoption, centralized cloud configuration and Wi‑Fi mesh

  • GPS support for viewing outdoor location on the map (feature available in the Omada controller)

  • Full support for enterprise security: WPA3, VLAN, QR/SMS captive portal

Advantages and recommended scenarios

  • Easy and flexible installation: PoE, pole or wall mounting kits, compact exterior design

  • Remarkable robustness to weather, storms or floods

  • Latest generation Wi‑Fi 7 performance optimal for 4K/8K streaming, video surveillance and IoT applications

  • Ideal for densely populated outdoor applications: pedestrian areas, campuses, terraces, logistics areas

TP‑Link EAP772‑Outdoor is a high-class Wi‑Fi 7 access point suitable for critical external networks, offering both speed and exceptional resistance. Especially recommended where robust outdoor coverage and high client capacity are essential.

SKU: EAP772-Outdoor Category:
