Uniview 8-camera surveillance system, 5MP, ColorHunter, 5MP 2K+, 20m White Light, Color night vision, 8-channel DVR, Mounting accessories, Phone viewing

This UNV surveillance kit is the ideal solution for the safety of your home or business. The included cameras offer clear and colorful images even at night thanks to the integrated white light, which illuminates the monitored area. Built from durable materials, the cameras function perfectly outdoors, regardless of the weather, rain, dust, or cold. The high-performance DVR in the package offers the option to record automatically only when motion is detected, saving space and capturing only the important moments. Through the dedicated application, you can watch the images in real time directly from your phone, anytime and from anywhere.

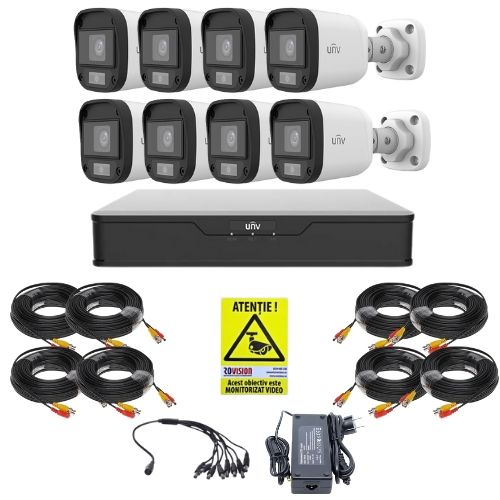

Analog Surveillance Kit Components, 2 Cameras 5MP Uniview:

• 8 x ColourHunter – 5MP Analog Camera, 2.8mm lens, WL 20m, IP67 – UNV UAC-B115-F28-W
• 1 x Hybrid XVR, 8 AnalogHD Channels 5MP lite – UNV XVR301-08G3
• 1 x 12V 10A Power Supply with wire, plastic case
• 8 x Crimped Cable 10m BNC+DC, power and video signal
• 1 x Power Splitter for 8 cameras
• 1 x Rovision video surveillance sticker

This kit does not include a HDD , it must be purchased separately. If you need assistance in choosing accessories, you can contact us at the phone number: 0334.405.358.

5MP Analog Camera, 2.8mm lens, WL 20m, IP67 – UNV UAC-B115-F28-W:

This is a Mini Bullet surveillance camera, manufactured by Uniview. One of its main advantages is the high resolution of 5 Megapixels, which allows for the recording of very detailed images.

The camera is compatible with several types of video signals, including TVI, AHD, CVI, and CVBS. This means it can be used with a variety of video surveillance systems. One of its outstanding features is the ColourHunter technology, which allows the camera to capture color images even in low light conditions. In addition, it has a white light (WL) range of up to 20 meters, which allows it to provide clear and visible images even at night.

The camera is equipped with digital WDR, a technology that improves visibility in contrasting lighting conditions, ensuring that details are visible in both the bright and dark areas of the image. In terms of durability, the camera has an IP67 rating, which means it is dust and water resistant. It can withstand harsh weather conditions and can be used outdoors without any problems.

Technical specifications of the analog surveillance camera, 5 Megapixels, 2.8mm lens, 20m White Light:

• Model / manufacturer UNV (Uniview)
• Sensor 1/2.7″ 5.0MP high quality image
• Resolution 5MP (2880×1620)@30fps, 4MP/1080P
• Lens 2.8mm, 110 viewing angle
• Minimum illumination 0.02 Lux (F1.6, AGC ON) , 0 Lux with WL
• WL Distance up to 20 meters, ColourHunter technology
• WDR DWDR
• Video signal TVI/AHD/CVI/CVBS
• Power supply 12 V DC ± 25%
• Consumption max. 2.4W
• Operating temperature -30C ~ +60C, IP67
• Protection against electrical discharge 4KV
• Dimensions 142mm × 63mm × 65mm
• Weight 145 gr.

Download the datasheet
