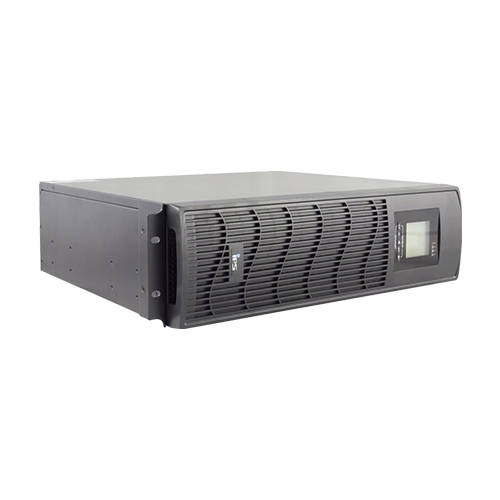

The UPS has the following key features:
- Installation in 19″ Rack and Tower cases;
- High frequency switching, without transformer;
- Advanced microprocessor technology;
- Active PFC filter;
- Auto-frequency selection;
- “Cold start” – Starting without mains power;
- ECO mode – High efficiency;
- LCD display;
- Selecting the percentage of discharged battery;
- Advanced battery management;
- Overcurrent and low battery protection;
- USB port for communication;
- Communication card slot;
- Possibility of connecting an additional battery.
Technical specifications:
- Manufacturer IPS
- Line interactive UPS type
- UPS capacity 1500VA / 1200W
- Supply voltage 230V AC
- Output voltage 220 ~ 240V AC, ± 26V; 50/60 Hz ± 0.2 Hz
- Transfer time 8 ms

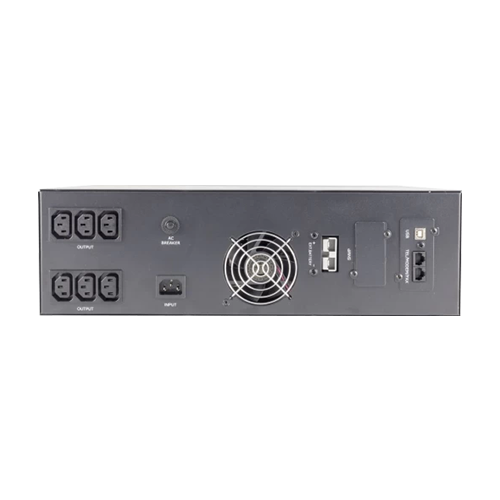

- Number of output sockets 6 x IEC C13
- Lead-acid battery, 2 x 12V/9 Ah
- Charging time 8 hours to 90%
- USB communication port
- Operating temperature 0C ~ 40C
- Dimensions 440 mm × 410 mm × 132 mm, 3U
- Weight 17.2 kg
