Tiandy surveillance system 8 cameras IP IR 30m PoE microphone IP67 and NVR 8 channels 6MP PoE 45W AI functions

The IP surveillance system consists of 8 Spark Tiandy TC-C321N-I3-EY-2.8mm cameras , with 2MP resolution, PoE, 2.8mm lens and microphone, and a Tiandy TC-R3108-IBP8CEuLS NVR with 4 PoE channels, 8MP resolution and AI functions, is the perfect solution for external monitoring of your property.

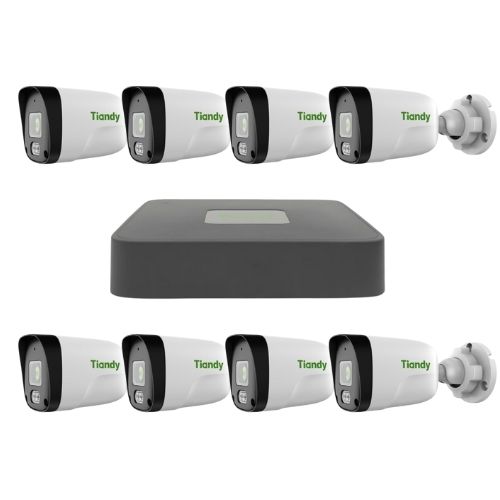

The IP surveillance system contains:

• 8 x Bullet IP Camera 2MP, 2.8mm lens, IR 30m, Microphone, PoE Spark Tiandy TC-C321N-I3-EY-2.8mm
• 1 x NVR 8 channels AK series, 6MP, 8 x PoE, 45W, AI functions Tiandy TC-R3108-IBP8CEuLS

IP surveillance camera 2MP IP67 IR microphone 30m

The Tiandy TC-C321N-I3-EY-2.8mm IP surveillance camera offers a 2MP video resolution and is equipped with a 2.8mm fixed lens, with a viewing angle of 94.4. It has IR lighting for visibility at night up to 30m and has a built-in microphone.

Technical specifications of the IP camera 2MP Tinady TC-C321N-I3-EY-2.8mm:

• Manufacturer: TIANDY
• Sensor: 1/3″CMOS
• Minimum illumination: Color: 0.04Lux (F2.2, AGC ON), B/W: 0Lux with IR
• WDR: DWDR
• Resolution: 2MP 1920×1080 at 30fps
• Fixed lens: 2.8mm viewing angle 94.4
• IR distance: 30m
• Video compression: S+265/H.265/H.264B/H.264M/H.264H
• Interoperability: ONVIF
• Port: 1 RJ45 10M/ 100M
• Audio: Microphone
• Operating temperature: From -30℃ to +60℃
• Dimensions: 140(L)60(W)60(H)mm
• Weight: 0.15 kg

NVR 4 channels PoE 6MP AI functions

The Tiandy TC-R3108-IBP8CEuLS 8-channel NVR supports cameras up to 6MP and integrates advanced AI functions for intelligent surveillance. It has 8 PoE ports, providing direct power for the cameras, with a total budget of 45W and a power of up to 30W per port. Accessible and manageable remotely through the mobile application, this NVR is ideal for efficient and easy-to-administer surveillance solutions.

Tiandy TC-R3108-IBP8CEuLS 8-channel PoE NVR technical specifications:

• Channels: 8 x PoE
• Input bandwidth: 60Mbps

• Output bandwidth: 40Mbps
• Resolution: 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Preview decoding capacity: 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8, 4CIF(30fps )×8
• Interoperability: ONVIF
• Video: S+265; H.265; S+264; H.264
• Multi-channel playback: 4
• Recording mode: Recording on alarm; Scheduled registration

• General alarm: Movement; Mask alarm; Video loss

• AI through the camera: Advanced intelligence
• Storage: 1 x 6TB HDD (not included)
• Ports: 2 x USB, 1 x HDMI
• PoE: budget 45W, power per port 30W
• Power supply: DC48V 1.35A
• Power consumption: <10W (without HDD and without PoE)
• Operating temperature: From -10℃ to +55℃
