Tiandy IP surveillance system 4 cameras 2MP IR 30m PoE microphone, NVR 4 channels PoE 5MP, cables, HDD 500GB + Rovision sticker

The IP surveillance system consisting of 4 Spark Tiandy TC-C321N-I3-EY-2.8mm cameras , with 2MP resolution, PoE, 2.8mm lens and microphone, and a Tiandy TC-R3104 NVR with 4 PoE channels, 5MP resolution, is the perfect solution for outdoor monitoring of your property.

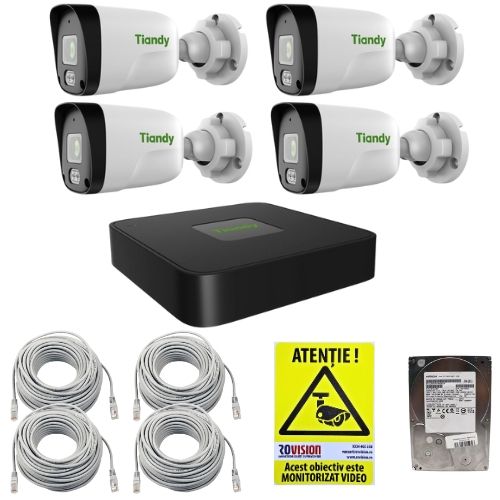

Tiandy IP surveillance system components:

• 4 x Tiandy IP Cameras , 2MP, lens 2.8mm, TC-C321N-I3-EY-2.8mm , IR 30m, Microphone, PoE Spark
• 1 x NVR Tiandy 4 PoE channels, 5MP, TC-R3104
• 4 x Patchcord cable UTP CAT5 20 meters 24 AWG
• 1 x 500GB HDD
• 1 x Rovision Sticker

IP surveillance camera 2MP IP67 IR microphone 30m

The Tiandy TC-C321N-I3-EY-2.8mm IP surveillance camera offers a video resolution of 2MP and is equipped with a 2.8mm fixed lens with a viewing angle of 94.4. It features IR illumination for night vision up to 30m and has a built-in microphone.

Technical specifications of the 2MP Tiandy IP camera TC-C321N-I3-EY-2.8mm:

• Manufacturer: TIANDY
• Sensor: 1/3″CMOS
• Minimum Illumination: Color: 0.04Lux (F2.2, AGC ON), B/W:0Lux with IR
• WDR: DWDR
• Resolution: 2MP 1920×1080 at 30fps
• Fixed lens: 2.8mm viewing angle 94.4
• IR distance: 30m
• Video compression: S+265/H.265/H.264B/H.264M/H.264H
• Interoperability: ONVIF
• Port: 1 RJ45 10M/ 100M
• Audio: Microphone
• Operating temperature: From -30℃ to +60℃
• Dimensions: 140(L)60(W)60(H)mm
• Weight: 0.15 kg

NVR Tiandy 4 channels PoE 5MP – TC-R3104

Tiandy TC-R3104 NVR has 4 channels and supports resolutions up to 5MP, providing clear and detailed images. With a bandwidth of 60Mbps, it allows live playback simultaneously with recording, adapting to various surveillance needs. It can operate with 1 channel at 5MP, 1 channel at 4MP, 1 channel at 3MP, 2 channels at 1080p, 4 channels at 720p or 4 channels at 4CIF, all at 30fps, ensuring smooth and efficient monitoring.

Technical specifications of Tiandy 4-channel PoE 5MP NVR:

• Number of channels: 4

• Input Bandwidth: 60Mbps

• Output Bandwidth: 40Mbps

• Resolution: 5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

• Decoding Capacity: 5MP(30fps)x1, 4MP(30fps)x1, 3MP(30fps)x1, 1080P(30fps)x2, 720P(30fps)x4, 4CIF(30fps)x4

• Third Party Camera Access: ONVIF; RTSP

• HDMI Output: 1024×768(60Hz), (720P)1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)

• Video: S+265; H.265; S+264; H.264

• Network Protocol: ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; iGMP; IPv4; IPv6; NTPs; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; UPnP

• Mobile Phone Access: Android; iOS; P2P_A

• Multi-channel playback: 4

• Recording Modes: Alarm Recording; Scheduled Recording

• General Alarm: Motion; Mask Alarm; Video Loss

• HDD Capacity: Up to 6TB capacity for each HDD

• USB: 2*USB2.0

• HDMI: 1*HDMI

• SATA: 1 SATA interface

• PoE interface: 4xRJ45, 10/100 Mbps adaptive Ethernet port

• PoE budget: 28W

• Power per PoE Port: 28W

• Standard: IEEE 802.3af/at

• Power supply: DC48V 1A

• Power Consumption: <10W (without HDD and without PoE)

• Operating temperature: -10℃~+55℃
