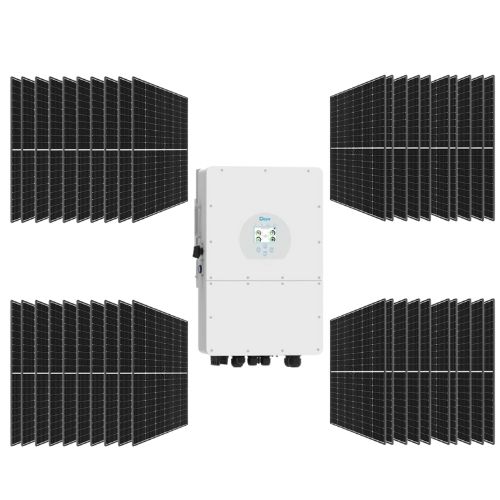

Three-phase photovoltaic system 15KW inverter DEYE SUN-15K-SG01HP3-EU-AM2 and 40 panels 380W VDS Power

This photovoltaic system can generate clean and sustainable energy, contributing to the reduction of the carbon footprint. The Deye SUN-15K-SG01HP3-EU-AM2 15 kW inverter together with the VDS Power VDS-S120/M6H 380 panels ensure a perfect balance between power and efficiency, making it ideal for consumers who want to maximize energy production and optimize long term costs.

This system consists of:

• 1 x Three-Phase Hybrid Inverter 15KW, BMS, Lithium-Ion, CAN DEYE SUN-15K-SG01HP3-EU-AM2
• 40 x Solar Photovoltaic Panel 380W black frame Monocrystalline VDS Power VDS-S120/M6H 380

15KW DEYE Three-Phase Hybrid Inverter

DEYE SUN-15K-SG01HP3-EU-AM2 is a three-phase hybrid inverter, designed to manage high voltage (HV) batteries with the operating range between 160 and 700 V. This high voltage battery support capacity significantly contributes to the improvement the overall efficiency of the system, minimizing heat losses and maximizing energy performance.

Technical specifications of the 15KW DEYE Three-phase Hybrid inverter:

Battery

• Battery type: Lithium-ion
• Battery voltage (V): 160-700
• Maximum charging current (A): 37
• Maximum discharge current (A): 37
• Li-ion battery charging: Self-adaptation to BMS

Solar panels

• Maximum power of the panels: 19,500 W

• Nominal voltage: 600 V

• Starting voltage: 180 V

• MPPT voltage range: 150~850V

• MPPT optimal charging voltage: 500 ~ 850 V

• Input current: 26 + 20 A

• Maximum short circuit voltage: 39 + 30 A

• Number of MPPT inputs: 2

• Number of strings per MPPT: 2/2 + 1

AC input/output data

• Rated active AC input/output power (W): 15000
• Maximum power: 16500
• Nominal current: 22.8 A

• Maximum current: 25 A

• Euro efficiency: 97%

PROTECTION

• Protection against lightning at the entrance from the panels

• Anti-insularization

• Polarity reversal detection and insulation resistance

• Output overcurrent (residual current monitoring unit)

• Short circuit on the output

• DC/AC output overvoltage (Type 2/Type 3)

General data

• Dimensions: 408x638x237 mm
• Weight: 30.5 kg

Photovoltaic panel 380W VDS Power VDS-S120/M6H 380

VDS Power VDS-S120/M6H 380 is a high-efficiency monocrystalline solar panel, offering a power of 380W. This module is designed to maximize energy production even in low light conditions.

Technical specifications of solar panel 380W VDS Power VDS-S120/M6H 380:

• Model Name: VDS-S120/M6H 380
• Power: 380W
• Voltage at maximum power, Vmpp (V) at STC: 34.7
• Current at maximum power, Impp (A) at STC: 10.96
• Open circuit voltage, Voc (V) at STC: 41.3
• Short circuit current, Isc (A) at STC: 11.63
• Panel efficiency (%) at STC: 20.8
• Temperature coefficient of Pmax (%/C): -0.34
• Temperature coefficient of Voc (%/C): – 0.25
• Temperature coefficient of Isc (%/C): 0.04
• Maximum system voltage (V): 1500
• Series safety rating (A): 20
• Number of cells: 120
• Glass thickness (mm): 3.2
• Frame type: anodized aluminum alloy
• Junction box protection class: IP68
• Cable cross-section (mm²): 4
• Cable length (mm): 350
• Dimensions: 1756 × 1039 × 35 mm
• Weight: 19.8 kg

How this kit can help you:

Production capacity:

• The kit can generate a power of up to 15.2 kW, which is enough to cover the energy needs of a large household or a small business. If the panels produce more energy than is consumed at a given moment, the surplus can be injected into the network.

15 kW Deye inverter

• This inverter is ready for connection to the grid and can synchronize the energy produced by the panels with the national grid. Deye offers advanced monitoring functions and integration with electrical networks, being compatible with the systems necessary to become a prosumer.
