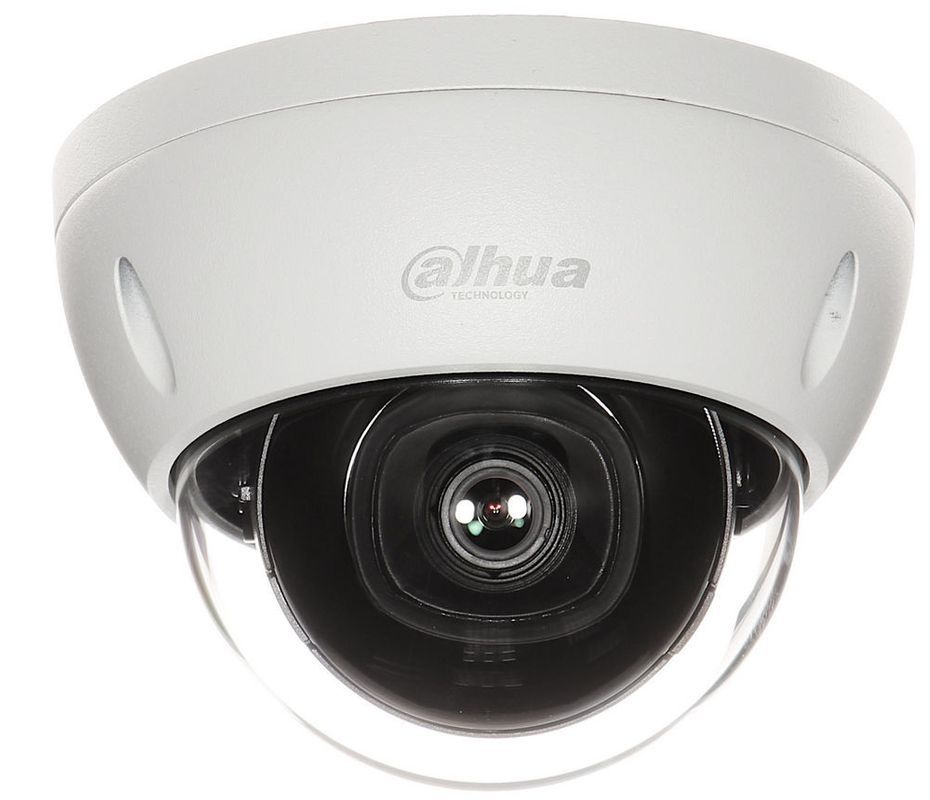

The surveillance camera HDBW1230E Dahua IPC-0280B-S5, IP Dome 2MP, 2.8mm, IR 30m, PoE

Dome IP camera Dahua IPC-0280B-S5 HDBW1230E, 2MP CMOS 1 / 2.7inch, 2MP fixed 2.8mm lens, IR 30m, IP67, IK10, PoE, metal housing
Details room:
& gt; Progressive CMOS 1 / 2.7 “2Megapixel
& Gt; Coding H.265 and H.264 dual-stream
& Gt; 25 / 30fps @ 1080P (1920×1080)
& Gt; DWDR, day / night (ICR), 3DNR, AWB, AGC, BLC
& Gt; Multiple network monitoring: Web viewer, CMS (DSS / PSS) and DMSS
& Gt; 2.8 mm fixed lens
& Gt; Maximum length of 30m IR LEDs
& Gt; IP67 IK10 PoE

Camera Specifications:

Image Sensor
progressive CMOS 1 / 2.7 “2Megapixel

Effective Pixels
1920 (H) x 1080i HD (V)

RAM / ROM
256 MB / 32 MB

Scanning System
Progressive

electronic shutter speed
Auto / Manual 1/3 ~ 1 / 100,000s

Minimum illumination
0.08Lux / F2.0 (lane 1 / 3s, 30IRE)
0.3Lux / F2.0 (color, 1 / 30s, 30IRE)
0Lux / F2.0 (IR enabled)

S / N
More than 50 dB

Distance IR
distances up to 30m (98ft)

Control IR / On
Auto / Manual

LED IR
24

Goal

Lens Type
Fix

Mounting Type
Board-in

Focal Length
2.8 mm

Smart

Trigger event
Motion detection, video manipulation, scene change, network disconnect, IP address conflict, illegal access, storage abnormality

IVS
Tripwire, Intrusion

Video

Compress
H.265 / H.264H / MJPEG (secondary stream)

Smart Codec
Support H.265 + / H.264 +

streaming capacity
2 flows

Mode BLC
BLC / HLC / DWDR

White Balance
Auto / Natural / street light / Outdoor / Manual

Get control
Auto / Manual

Noise Reduction
3D DNR

Motion detection
Off / On (4 zones, rectangle)

Region of interest
Off / On (4 zones)

Digital Zoom
16x

Audio

Compress
N / A

Network

Ethernet
RJ-45 (10 / 100Base-T)

Protocol
HTTP HTTP; TCP; ARP; RTSP; RTP; RTCP; UDP; SMTP
FTP; DHCP; DNS; DDNS; PPPoE; IPv4 / v6; QoS; UPnP
NTP; Bonjour; IEEE 802.1x; multicast; ICMP; IGMP
TLS

Interoperability
ONVIF Profile S & amp; G, API

Method streaming
Unicast / Multicast

Max. User Access
10 users / 20 users

Electric

Power supply
DC12V, PoE (802.3af) (Class 0)

Consumption
& lt; 5,5W

& nbsp;

average

Operating conditions
-30 ° C ~ + 60 ° C (-22 ° F ~ + 140 ° F) / 95% RH less

Input Protection
IP67

vandal resistant
IK10

Building

Case
Metal

Size
Φ109,9mm × 81mm (4.33 “x 3.19”)

Net weight
0.34 kg (0.75 lb)

& nbsp;
See pictures wherever you are!
Producers from Dahua allows users to download software on your mobile phone, allowing them to view live images and recordings made by surveillance systems. Also, downloading images can be done by computer browser.
Quick and easy!
gDMSS app for Android can be downloaded from HERE
iDMSS iPhone application can be downloaded HERE
& nbsp;
DATA SHEET
INSTALLATION GUIDE
