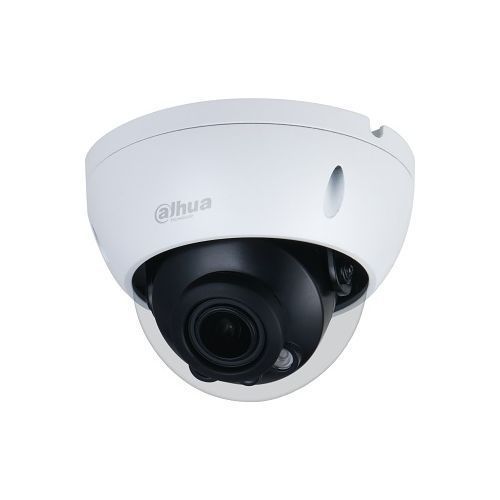

The surveillance camera Dahua IPC-CD2C20M-ZS-2812, IP Dome 2MP CMOS 1 / 2.7 ”, 2.8-12mm motorized IR 30m, MicroSD, IP67, PoE, metal housing
Camera DH-IPC-CD2C20M-ZS-2812 is a very good solution for low budget monitoring structures used in the video. The device is part of the innovative Cooper Dahua that allows recording images in dark conditions for 24 hours, providing identification reliable and a high level of safety for both humans and private property.
chamber parameters
room CD2C20M-DH-CPI-2812 ZS equipped with a CMOS image sensor of progressive scan 1 / 2.7 “2MP , which allows the capture of resolution videos 2 MPx .
correction functions available, including DWDR, 3DNR ensures excellent image quality obtained. The compression H.265 + is the signal transmitted by the camera to take up less space on the recording media (ie. HDD), which translates into an effective protection and more time retention. In addition, objective type Motozoom allows external regulation, remote level focal length and automatic adjustment of the level of clarity. Infrared illuminator with a range of 30m guarantee 24-hour monitoring feature and readability of records obtained. The device is characterized by a high degree of resistance to adverse weather conditions (IP67) .
& nbsp;
Key Features:
Lens motozoom
D-WDR- a variety of dynamic lighting
3D-DNR – Digital Reducing interference from the image
ROI – improving the image quality for selected fragments
BLC – backlight compensation
HLC – Backlight Compensation (the point)
ICR – mechanically switching IR filter
AGC – automatic gain control
automatic white balance
Mirror – Mirror Image
Motion Detection – max. 4 zones
Privacy zones – max. 4
& nbsp;
LIVE ON MONITORING TELEPHONE / PC / tablet
& nbsp;
Standard:
TCP / IP
Sensor
1 / 2.7 “Progressive Scan CMOS
sensor size:
2.1 megapixel
Resolution
1920 x 1080 – 1080p
1280 x 960 – 1.3 megapixel
1280 x 720 – 720p
Goal
2.8 … 12 mm
Open
105 ° … 33 °
Compression
+ H.265 / H.265 / H.264 + / H.264 / MJPEG
Signal / noise (S / N)
& gt; 50 dB
The range of the IR illumination
30 m
Inputs / outputs alarm:
bitrate
… 6144 kbps 32 kbps – H.265
6144 kbps 12 kbps … – H.264
FPS main stream
25 frames / s – 1080p
network interface
10/100 Base-T (RJ-45)
Network Protocols:
HTTP, HTTPS, TCP, ARP, RTSP, RTP, RTCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4 / IPv6, QoS, UPnP, NTP, Bonjour, IEEE 802.1x, multicast, ICMP , IGMP, TLS, SSH
Audio:
WEB Server:
embedded NVR Compatible
Memory Card Slot:
Supports Micro SD cards with a capacity of 128GB (can record local)
Number max. users online:
20
ONVIF
18.6
Access the mobile
Port: 37777 or access through cloud technology
Android Application free DMSS Plus
iOS (iPhone): The free iDMSS Plus
Login / default admin password:
admin / –
Admin password is set to the first use
IP address Default:
192.168.1.108
www access ports by
80 37 777
ports access through the PC
37777
ports access through the mobile application:
37777
Port ONVIF
80
RTSP URL:
rtsp: // admin: hasło@192.168.1.108 554 / room / realmonitor? Channel = 1 & amp; subtype = 0 – Main Stream
rtsp: // admin: hasło@192.168.1.108 554 / room / realmonitor? channel = 1 & amp; subtype = 1 – Stream auxiliary
RS-485
Power
PoE (802.3af),
12 V DC / 180 mA, power supply is not included
consumption
≤ 2.2 W @ 12V DC
≤ 6.8 W @ PoE
housing
Dome metal
color
White
sealing Class
IP67
vandal
Working Temperature:
-30 ° C … 60 ° C
weight
0.46 kg
Size:
122 x 89 mm Ø
Developer
DAHUA
& nbsp;
assembly required accessories are not included but you can choose from HERE.
