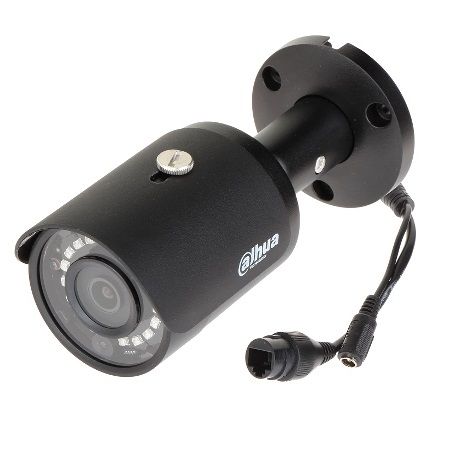

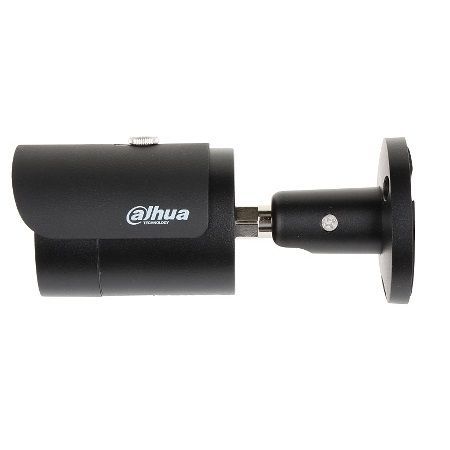

The surveillance camera Dahua IPC-0280B-Black HFW1431S, IP Bullet 4MP, 2.8mm, IR 30m, PoE, metal + plastic housing

Dahua
Availability:

In stock


86,05 inc VAT

In stock

Bank transfer, Invoice with VAT or no VAT(VIES confirmation), VISA card, Mastercard credit card or PayPal. You can pay for your order comfortable cash on delivery in Bulgaria, Hungary and Greece Easy Returns 14 days for return for items in as new condition 5000+ Successful Worldwide Deliveries We ship from Europe. Shipping cost is from 10 euros depending on the country

Dahua surveillance camera HFW1431S IPC-0280B-Black, IP Bullet 4MP CMOS 1/3 ”, H.265 +, 2.8mm, IR 30m, IP67, PoE, metal + plastic housing, black
HFW1431S IPC-0280B-S4 is an external IP cameras with sensor CMOS Progressive Scan 1/3 inch, allowing a 4 megapixel resolution (2688 x 1520 pixels UHD, ). The camera comes equipped with 2.8 mm fixed lens, which allows a horizontal viewing angle of 104 °. Also, the IR LEDs 18 provide a remote lighting incorporated up to 30 m.

Special Features camera:
Function BLC (Back Light Compensation) help view the details of dark objects, and can filter items while very bright.
HLC (Highlight Compensation) created is a function of the need to reduce the intensity of the dazzling light that room can be subject (lights, reflectors, etc.).
IVS is an algorithm analytically integrated video-enabled smart monitoring an area, and among functions Listed Tripwire, intrusion detection and abandoned objects or missing, with a quick response and accurate monitoring events in a given area.
Technology Smart IR allows providing clear images in a place with low light or complete darkness and adjusts the intensity of infrared LEDs that compensate object distance. This prevents the LEDs to whiten images as you approach the camera. Integrated infrared camera provides a high performance in environments with extreme low light at a distance of 30 m.
With advanced technology Wide Dynamic Range (WDR) network camera Dahua offers sharp detail in an environment where the brightness contrast is strong. You can get clear recordings even in bright or dark areas.
The camera produces a durable metal housing with IP67 (dust, rain, snow, etc.), enabling operation at temperatures between -30 ° C and + 60 ° C. The power will be at DC12V or PoE (802.3af) (Class 0).
& nbsp;

& nbsp;
Camera Specifications:

Camera

Sensor
Progressive scan CMOS 1/3 inch

Resolution
4 megapixels (UHD – 2688 × 1520 pixels)

RAM / ROM
512/32 MB

frames / second
20 FPS

Electronic Shutter Speed:
1/3 ~ 1 / 100,000s

IR illuminator distance:
30 m

Sensitivity:
0.08 Lux

IR LED:
18

lens

Fixed Lens:
2.8 mm

Aperture
2.0 M

Viewing Angle:
H: 104 °, V: 57 ° (horizontal, vertical)

Pan / Tilt:
Pan: 0 ° – 360 ° Tilt: 0 ° ~ 90 °; Rotation: 0 ° ~ 360 °,

Smart

Events trigger
motion detection, video manipulation, changing scenery, network disconnect, IP address conflict, illegal access, storage abnormality

IVS
Tripwire, intrusion

Video

Video compression:
H.265 / H.264H / MJPEG (Sub Stream)

streaming capability:
2 streams

frames / second
Main Stream: 4M (1-20fps) / 3M (1-25 / 30fps)
Under Stream D1 (1-25 / 30fps)

Bitrate:
H.265: 12K-8448Kbps / H.264: 32K-10240Kbps

Day / night
Auto (ICR) / Color / B / W

Special features:
BLC, HCL, WDR (120 dB) gain control, 3D DNR, motion detection (4 rectangular area), ROI (4 zones), Smart IR mirror, digital zoom (16x), four rectangular areas private

Network

Ethernet
1x RJ-45 (10/100 Base-T)

Protocol
HTTP, HTTPS, TCP, ARP, RTSP, RTP, RTCP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4 / v6, QoS, UPnP; NTP, Bonjour, IEEE 802.1X, Multicast, ICMP, IGMP, TLS

Interoperability
ONVIF Profile S & amp; G API

Access users:
max. 20

Storage
NAS, local PC for instance

Web
IE, Chrome, Firefox, Safari

Software Management:
Smart PSS, DSS, DMSS

Compatible
iOS / Android

General

Protection grade:
IP67

Power
DC12V, PoE (IEEE 802.3af) (Class 0), power supply is not included

Consumption:
& lt; 5.5 W

Temperature:
-30 ° C – + 60 ° C

Housing material:
metal + plastic

Size:
70 x 164.7 mm ⌀

weight
0.38 kg

& nbsp;
See pictures wherever you are!
Producers from Dahua allows users to download software on your mobile phone, allowing them to view live images and recordings made by surveillance systems. Also, downloading images can be done by computer browser.
Quick and easy!
gDMSS app for Android can be downloaded from HERE
iDMSS iPhone application can be downloaded HERE
& nbsp;
Data Sheet
MANUAL
MANUAL INSTALLATION
