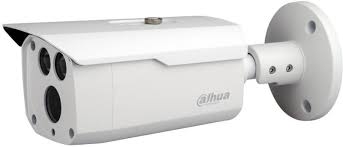

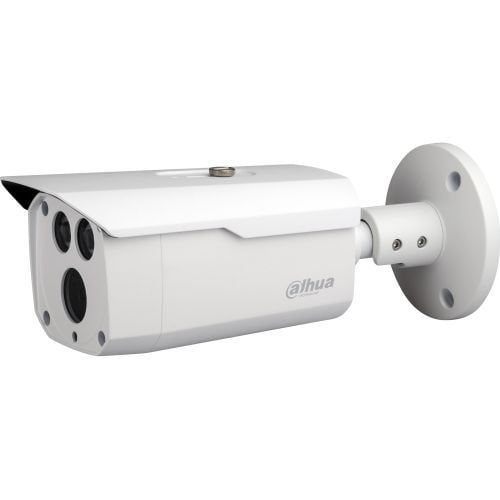

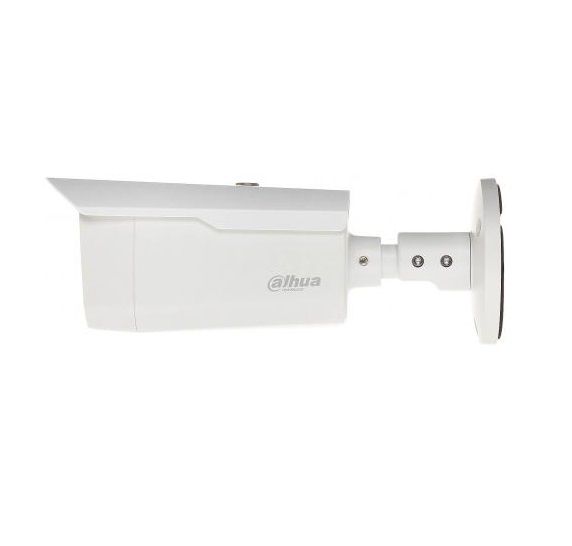

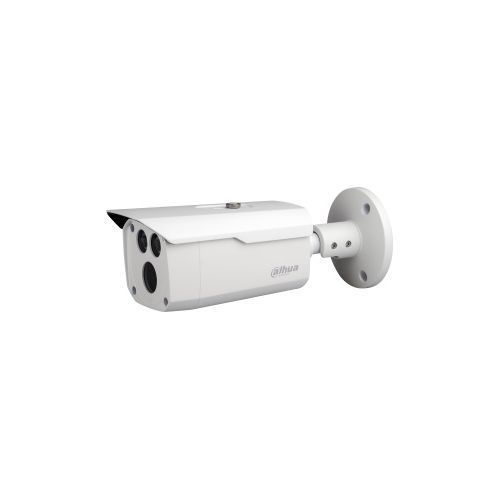

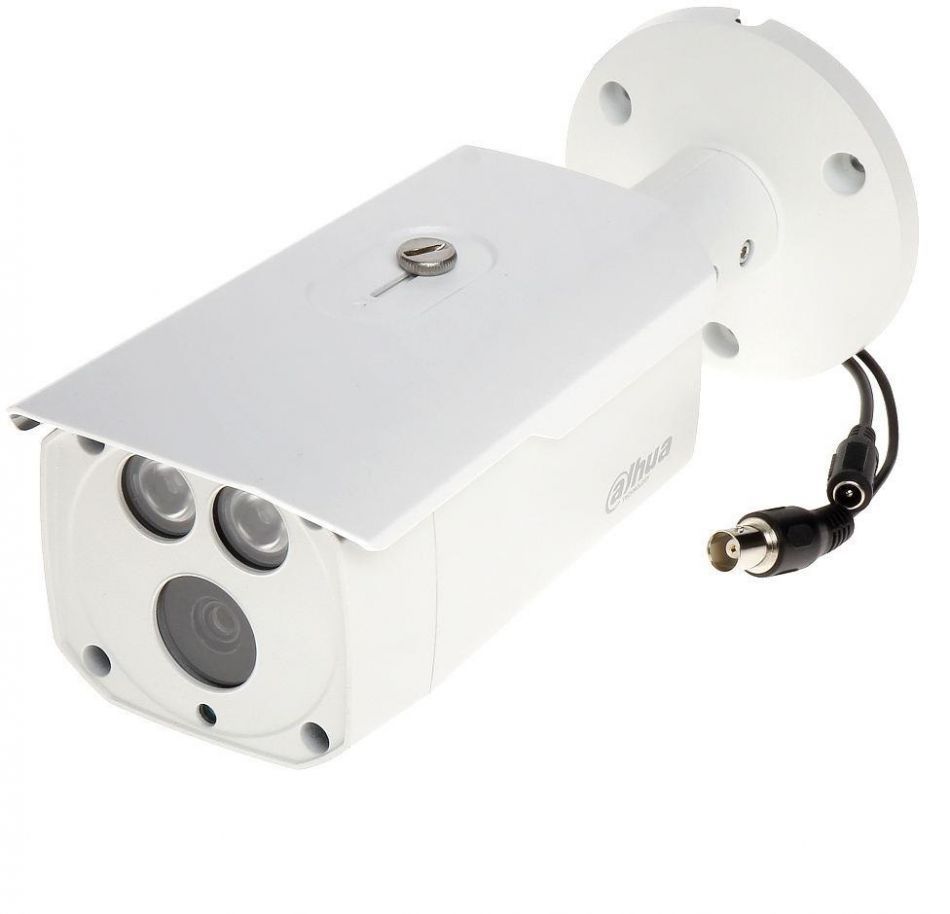

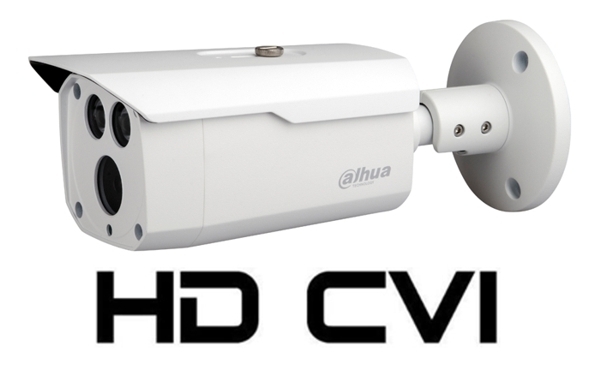

The surveillance camera Dahua HAC-HFW1200D, HD-CVI, Bullet, 2MP, 3.6mm, exira two LED arrays, IR 80m, D-WDR rating IP67, aluminum housing

The surveillance camera Dahua HAC-HFW1200D, HD-CVI, Bullet, 2MP, 3.6mm, exira two LED arrays, IR 80m, D-WDR rating IP67, aluminum housing

The Dahua HAC-HFW1200D outdoor surveillance camera has a 2 MP CMOS sensor, recording Full HD 1080p images. It has a metal housing, resistant to both unfavorable weather conditions and vandalism attempts. This camera records at Full HD 1080p resolution at 25 frames per second and at HD 720p resolution at 25/50 frames per second.

The Dahua camcorder has a fixed 3.6 mm lens, which allows a large viewing angle of 89.9º. Thus, with the help of this camera you will be able to capture a much larger portion of the surveillance area and you will get an overview. Moreover, it is a camera that records quality images even at night or in low light conditions, being equipped with infrared LEDs that allow recording over a distance of up to 80 meters.

The Dahua camera supports coaxial cable transmission over long distances of up to 500 meters.

Technical specifications:

• Video resolution: 2 megapixels (1920 x 1080p)
• Sensor: 1 / 2.7 ″ 2Megapixel CMOS
• Fixed lens: 3.6mm (6mm, 8mm, 12mm, 16mm optional)
• IR illuminator distance: 80 m, Smart IR
• Special function: Day / Night (ICR), AWB, AGC, BLC, 2DNR
• Frame / second: 25 / 30fps @ 1080P
• Operating temperature: from -30 to +60 degrees Celsius
• Power supply: DC 12 V
• Viewing angle: H: 89.9º (59.4º / 41.4º / 26.5º / 20.6º)
• Consumption: Max 5W
• The transmission is made on coaxial cable or UTP (with video balloon ) over a maximum distance of 500M / RG59 or 700m / RG6
• Degree of housing protection: IP67
• Dimensions (width x depth x height): 241.8 × 90.2 × 83.7 mm
• Weight: 0.63 kg
• Material: metal



OSD menu and useful functions

The Dahua HAC-HFW1200D surveillance camera is equipped with an OSD menu. This menu allows you to change certain image settings according to your needs. Thus, depending on the position of the camera or the details that interest you, you can adjust the settings to get the perfect result.

Also, the Dahua surveillance video camera has a series of useful functions that guarantee you clear images, with defined details:

• DWDR – function that allows to increase the brightness in the darker areas of the image, for high quality images;
• AWB  – allows you to adjust the white balance, to render colors as real as possible;
• AGC – this function allows to amplify the video signal of the camera in low light conditions or to decrease its intensity when the lighting is strong;
• BLC – function due to which the camera will play back images with balanced and uniform lighting; this function becomes active when the background is brightly lit – which obscures certain elements in the foreground;
• 2DNR  – thanks to this function, you will get images without “fleas”, even in low light conditions.



Cameras specifications:

Image sensor

1 / 2.7 “CMOS

Efficient pixels

1920 (H) × 1080 (V), 2MP

Scanning system

Progressive

Electronic shutter speed

PAL: 1/25 ~ 1/100000 NTSC: 1/30 ~ 1 / 100000s

Minimal lighting

0.02Lux / F1.85, 30IRE, 0Lux IR activated

S / N report

More than 65dB

IR distance

Up to 80 meters (262 pieces)

IR On / Off control

Auto / Manual

IR LEDs

2

Objective

Lens type

Fixed lens / fixed iris

Mounting type

Board-in

Focal length

3.6 mm (6 mm, 8 mm optional)

Max Aperture

F1.85

The angle of view

H: 87.5 ° (54.7 ° / 41 °)

Focus control

N / A

Close the focusing distance

900mm (2000mm / 3500mm) 35.4 ”(78.7” / 137.8 ”)

View images from wherever you are!
Dahua’s manufacturers offer users the opportunity to download software to their mobile phones, which allows them to view live images and recordings made through surveillance systems. At the same time, the images can be accessed through the computer’s browser.
Simple and fast!

The gDMSS application for android can be downloaded  HERE

The iDMSS application for iPhone can be downloaded  HERE
