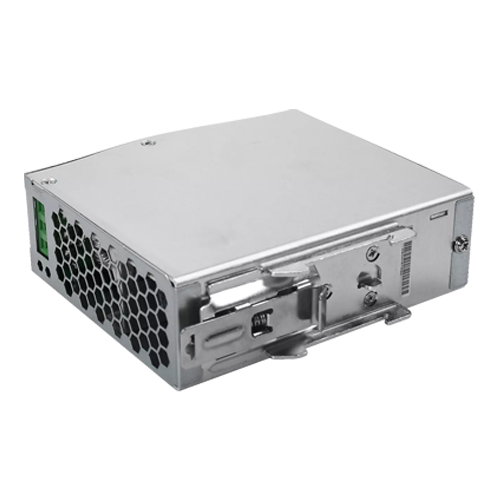

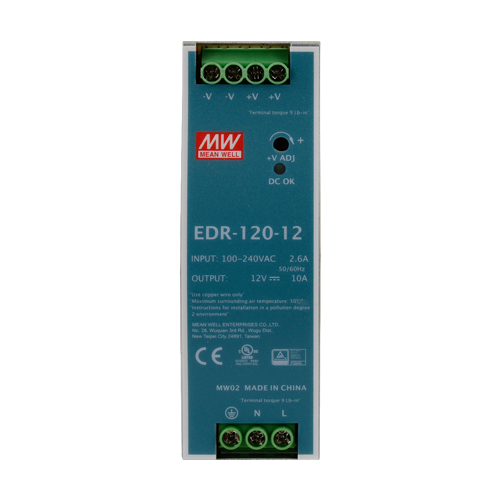

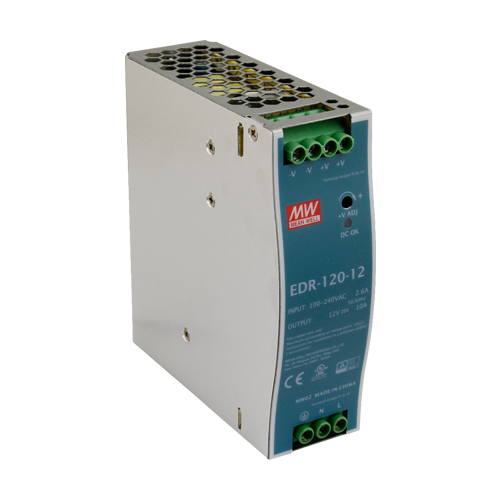

MEAN WELL EDR-120-12 switching power supply adjustable between 12 ~ 14V, and a maximum current of up to 10A, 120W, DIN rail.
Technical specifications:
- Model / manufacturer: MEAN WELL
- Input voltage: 90 – 264 V/AC ± 10% 47/63 Hz
- Output voltage: 14 VDC (adjustable 12 ~ 14V)
- Maximum current: 10 A
- Nominal output power: 120 W
- Protection: overload / short circuit / overvoltage / overheating
- Operating temperature: -20 ~ +60
- Case: protective metal
- Dimensions: 40 x 125.2 x 113.5 mm
- Weight: 600g
