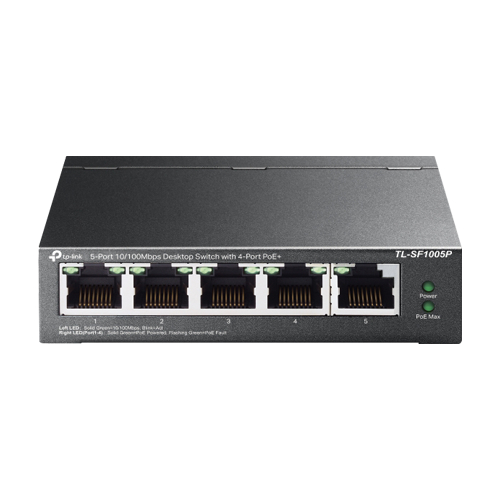

The TL-SF1005P is a compact 5-port switch that requires no configuration.
Specifications
The interface | 5 10/100Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
media network | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
Number of fans | Fanless |
External power supply | External Power Adapter (Output: 48VDC / 1.25A) |
Ports (RJ45) PoE | Standard: 802.3 af compliant PoE Ports: Port1- Port4 Power Supply: 58W |
MAC Address Table | 2K |
Switching capacity | 1Gbps |
Dimensions (L x W x H) | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25mm) |
Transmission distance | Store-And-Forward |
Maximum consumption | 63.51W (max. with 58w PD connected) 1.70W (max. no PD connected) |
Max Heat Dissipation | 5.73BTU/h (no PD connected) 221.17BTU/h (with 58W PD connected) |
Transmission Method | Store-And-Forward |
Advanced functions | Compatible With IEEE 802.3af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode |
certification | FCC, CE, RoHS |
DESCRIPTION
It features 4 PoE (Power over Ethernet) ports, capable of automatically detecting and supplying power according to IEEE 802.3af standards for powered devices (PD). By simultaneously transmitting power and data through a single cable, this switch facilitates network expansion where there is no access to power sources, allowing devices such as access points (APs), IP cameras or IP phones to be connected in locations no power infrastructure or connections available.
