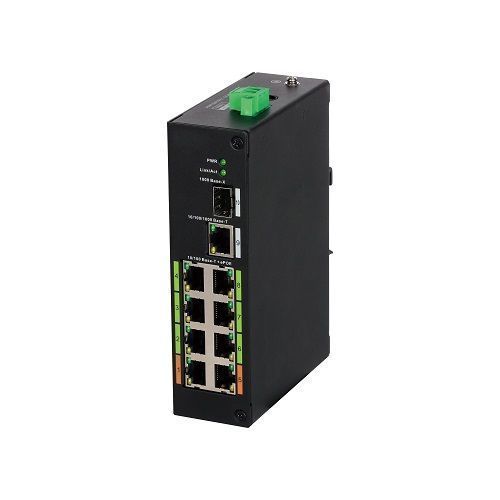

Switch ePoE Dahua 8 PoE LR2110-8ET-120, 1 x Gigabit 1 x SFP, 120W

Availability:

Out of stock


Without VAT

202,28

Out of stock

Switch ePoE Dahua LR2110-8ET-120, 8 x 10/100, 1 x SFP Gigabit 1x
& gt; Supports PoE transmission over long distances up to 800 m with technology ePoE
& Gt; EPoE Switch Layer-Two
& Gt; Study and aging automatic MAC address list capacity 8K MAC
& Gt; According to IEEE802.3, IEEE802.3u, IEEE802.3ab / z and IEEE802.3x standards
& Gt; Supports IEEE802.3af, IEEE802.3at standard Hi-PoE
& Gt; Industrial Design temperature range
& Gt; Light port is to display the current state transmission mode port, including IEEE, E100 and E10
& nbsp;
& nbsp;

Technical Specifications

Type
LR2110-8ET-DH-120

Port Ethernet
1 * 1000 Base-X
1 * 10/100/1000 Base-T
8 * 10/100 Base-T (PoE power supply)

PoE power consumption
Port1,5≤60W, Port2,3,4,6,7,8≤30W, Total≤120W

PoE Protocol
IEEE802.3af, IEEE802.3, as Hi-PoE

Switching capacity
8.8 Gbps

packet forwarding rate
4.17 MPPS

packet buffer memory
2,75Mb

MAC table size
8K

Flow Control
enabled by default

Humidity application
10% ~ 90%

Power
DC48 ~ 57V power supply adapter

lightning protection
common mode 4KV
differential mode 2KV

working temperature
– 30 ° C ~ 65 ° C

weight
0.59 kg

size (W × H × D)
150 mm × 100 mm × 42 mm

Performance Transmission:

Cable (m)
Bandwidth (Mbps)
PoE loading capacity (W)
Load capacity Hi-PoE (W)
Procedure

100
100
25.5
53
IEEE / E100

200
100
25.5
33
E100

300
100
19
19
E100

400
10
17
17
E10

500
10
13
13
E10

800
10
7
7
E10

ePoE switch voltage 48V
CAT5E / CAT6, max. DC resistance & lt; 10Ω / 100m

Cable (m)
Bandwidth (Mbps)
PoE loading capacity (W)
Load capacity Hi-PoE (W)
Procedure

100
100
25.5
53
IEEE / E100

200
100
25.5
47
E100

300
100
25.5
32
E100

400
10
23
26
E10

500
10
20
20
E10

800
10
13
13
E10

ePoE switch voltage 53V
CAT5E / CAT6, max. DC resistance & lt; 10Ω / 100m

& nbsp;

indicator LED

Procedure
LED Indicator

Mode IEEE
normally

E100
On for 3 seconds, off for 1 second

E10
On 1 second, 1 second off

& nbsp;

SKU: LR2110-8ET-120 Categories: ,
