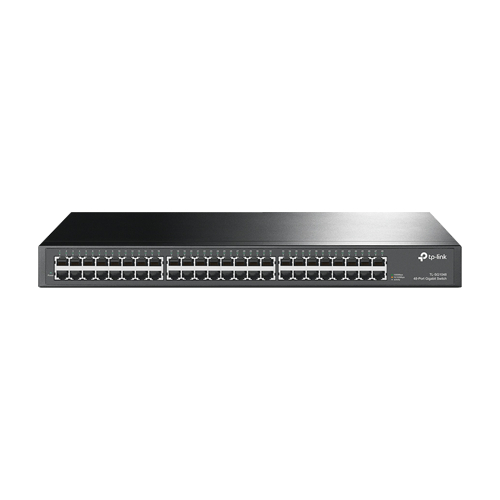

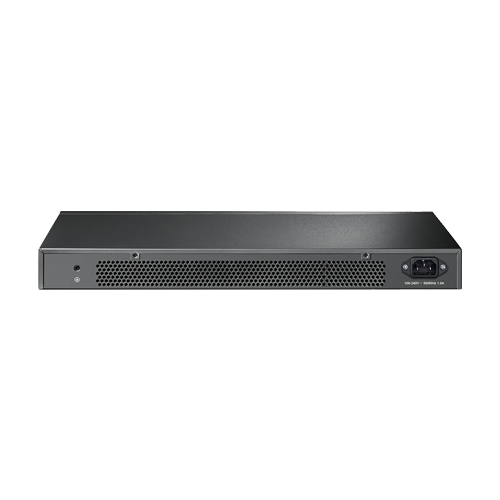

Switch 48 ports TP-Link – TL-SG1048
Specifications
- Interface: 48 RJ45 10/100 Mbps ports (Auto-Negotiation, Auto-MDI/MDIX)
- Standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- Media network: 10BASE-T – UTP cable category 3, 4, 5 (max. 100 m), 100BASE-TX/1000BASE-T – UTP cable category 5, 5e or higher (max. 100 m)
- Silent: No fan
- Maximum thermal dissipation: 110.17 BTU/h
- Switching capacity: 96 Gbps
- MAC address table: 16000
- Data packet sending rate: 71.4 Mpps
- Jumbo Frame: 12 KB
- Buffer size: 12 MB
- Transfer method: Store-and-Forward
- Mounting: Desktop & Rack
- Power consumption: 32.29 W (220V/50 Hz)
- Power supply: 100-240 VAC (50/60 Hz)
- Dimensions: 440 x 180 x 44 mm
- Operating temperature: 0C – +40C
- Humidity: 10% – 90% RH
DESCRIPTION
TL-SG1048 is a network switch manufactured by TP-Link, equipped with 48 RJ45 ports that support 10/100 Mbps speeds. It features Auto-Negotiation and Auto-MDI/MDIX for each port.
The switch”s non-blocking architecture allows for maximum data throughput thanks to its 96 Gbps capacity. A large MAC address table capacity of 16K makes this switch suitable even for large networks. The TL-SG1048 supports IEEE 802.3x standard flow control for Full Duplex mode and backpressure for Half Duplex, thereby reducing data traffic congestion and increasing transmission reliability.
Automated features including Auto-MDI/MDIX facilitate quick and easy installation (Plug and Play), eliminating the need for crossover cables or Uplink ports. Auto-Negotiation detects and adapts to the speed of network devices (10, 100, or 1000 Mbps) for optimal performance.
The compact design of the case makes it ideal for use on desktops or in racks. Integration LEDs provide real-time information on operating status and error diagnostics. The switch is powered at 100-240VAC (50/60 Hz), and the optimal operating temperature is between 0C and +40C.
