Swing gate automation kit G-BAT 300, 2×2.5m – GENIUS G-BAT300-51701271-KIT
In stock
Without VAT
€335,80
In stock
Automation kit for swing gates, residential use, size 2.5m/sheet. For gates between 2.5 and 3 meters, an electromagnetic lock is required to guarantee blocking.
G-BAT300 from GENIUS is an irreversible automation with high performance and reliability thanks to the extendable arms with auger. The constructive elements are in accordance with EN 12604 and EN 12605.
KIT Contents:
Actuators LH/RH 230 V – 2 pcs
Brain 592 control panel – 1 pc
VEGA photocells – 1 set

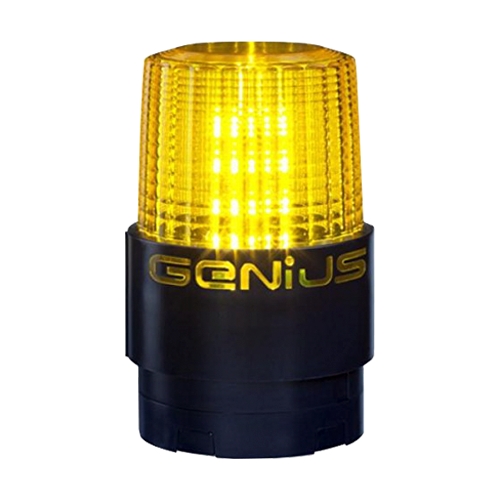

GUARD warning lamp – 1 pc
Receiver 433 MHz – 1 pc
Remote control ECHO TX4 – 1 pc
Selector with key – 1 pc
Mounting accessories
It requires a welding machine for mounting the actuator supports on metal or concrete posts. To mount the supports on concrete gates, 2 plates code 58P0199 are additionally required.
Manufacturer: GENIUS by FAAC
Automation type: Swing gates
Opening speed: 18 sec. (1.6 cm/sec. actuator linear speed)
Duty cycle: RESIDENTIAL S3 30%
max angle opening: 110 degrees
Motor stroke: 300mm
Motor operating voltage: 230VAC
Supply voltage: AC 230V 50Hz
Engine traction force: 3500 N
Absorbed power: 280 W
Operating temperature: -20°C ~ +55°C
Absorbed current: 1.2A
Gate length: 2.5 m or max. 3 m with electromagnetic lock
Protection class: IP 54
Thermal protection: 140°C
