Swing gate automation kit 2x4m -MOTORLINE

Kit for swing gates automation products, intensity, size 4 m / sheet weight 350kg / sheet.
LINCE600-24V-KIT from Motorline allows opening the gates swing both outwards and inwards.
Performance and high reliability, engines suitable for thick pillars, due to expandable spiral arms.
LINCE600-24V-KIT can also function without power from the network.
Function configurable from the front panel: setting power opening / closing, locking delayed, closure delayed, gradual decrease in speed at the ends race, partial opening for pedestrian access gate, etc.
& nbsp;

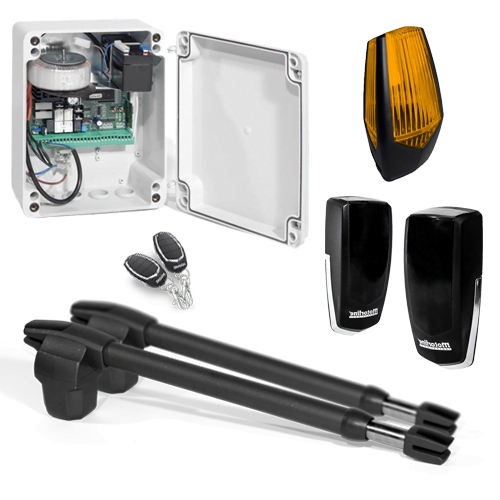

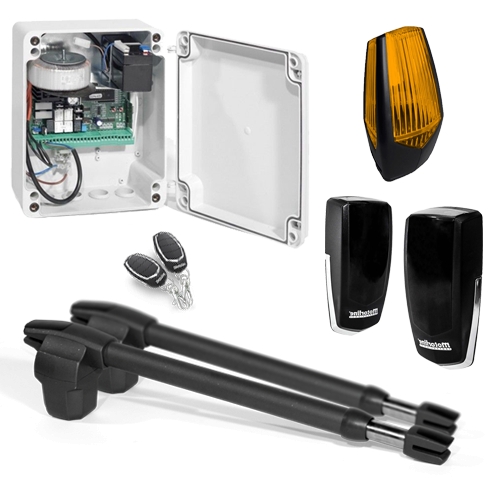

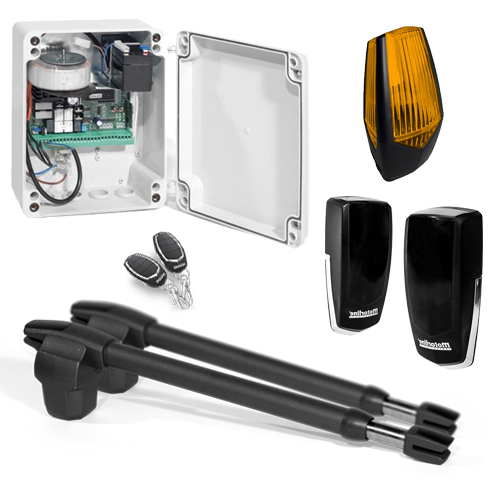

KIT Content:

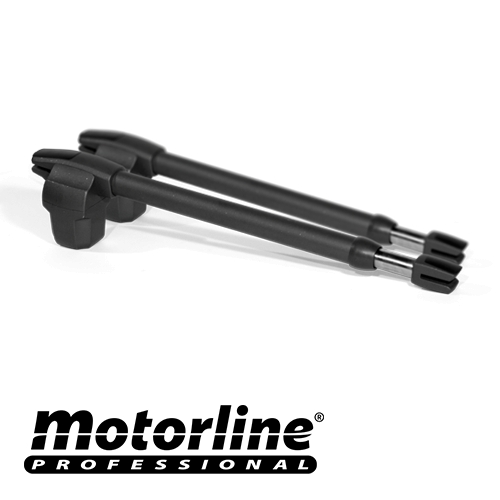

Engines 230 V screw integrated in metal construction and shockproof intenperii possibility manually operated with 2 pieces

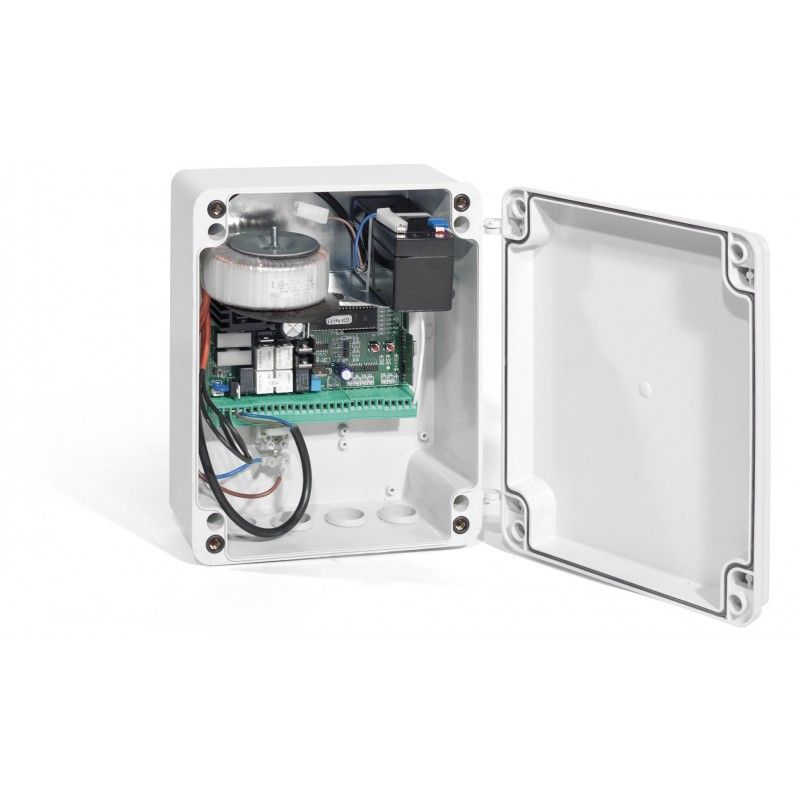

Control panel – 1 piece
Remotes – 2 pieces
Photocells – 1 set
Warning light – 1 piece
mounting accessories.
& nbsp;
& nbsp;
Manufacturer: MOTORLINE
Max. leaf 350kg
Automation Type: Gate swing
Max. leaf 4 meters
Opening speed: 0.6m / s
Work cycle: INTENSIVE
Angle max. Opening 120-degree
The motor 600mm
motor operating voltage 24V DC
Power supply: 230V AC 50Hz
Motor traction force I 2300
Motor power: 60W
Operating temperature: -25 ~ + 75 ° C IP54
