Swing gate automation kit 2×2.5m -MOTORLINE

Kit for swing gates automation, for residential, size 2.5m / sheet weight of 250 kg / sheet.
LINCE300-KIT from Motorline allows opening the gates swing both outwards and inwards.
Performance and high reliability, engines suitable for thick pillars, due to expandable spiral arms.
Function configurable from the front panel: setting power opening / closing, locking delayed, closure delayed, gradual decrease in speed at the ends race, partial opening for pedestrian access gate, etc.
& nbsp;

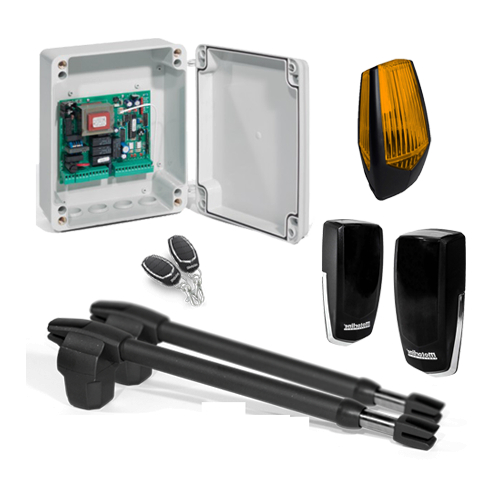

KIT Content:

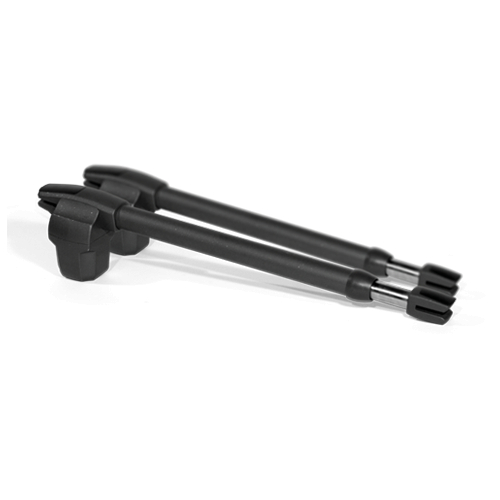

Engines 230 V screw integrated in metal construction and shockproof intenperii possibility manually operated with 2 pieces
Control panel – 1 piece
Remotes – 2 pieces
Photocells – 1 set
Warning light – 1 piece
Mounting accessories.
& nbsp;
& nbsp;
& nbsp;
Manufacturer: MOTORLINE
Automation Type: swing gates
Max. leaf 250 kg
Max. leaf 2.5 meters
Opening speed: 0.6m / s
Cycle time: 25% (residential use)
Angle max. Opening: 95-degree
Motor operating voltage 230V AC 50Hz
Power supply: 230V AC 50Hz
Motor traction force I 2300
Motor power: 180W
Race engine: 300mm
Operating temperature: -25 ~ + 75 ° C IP54
Thermal protection: 120 C
