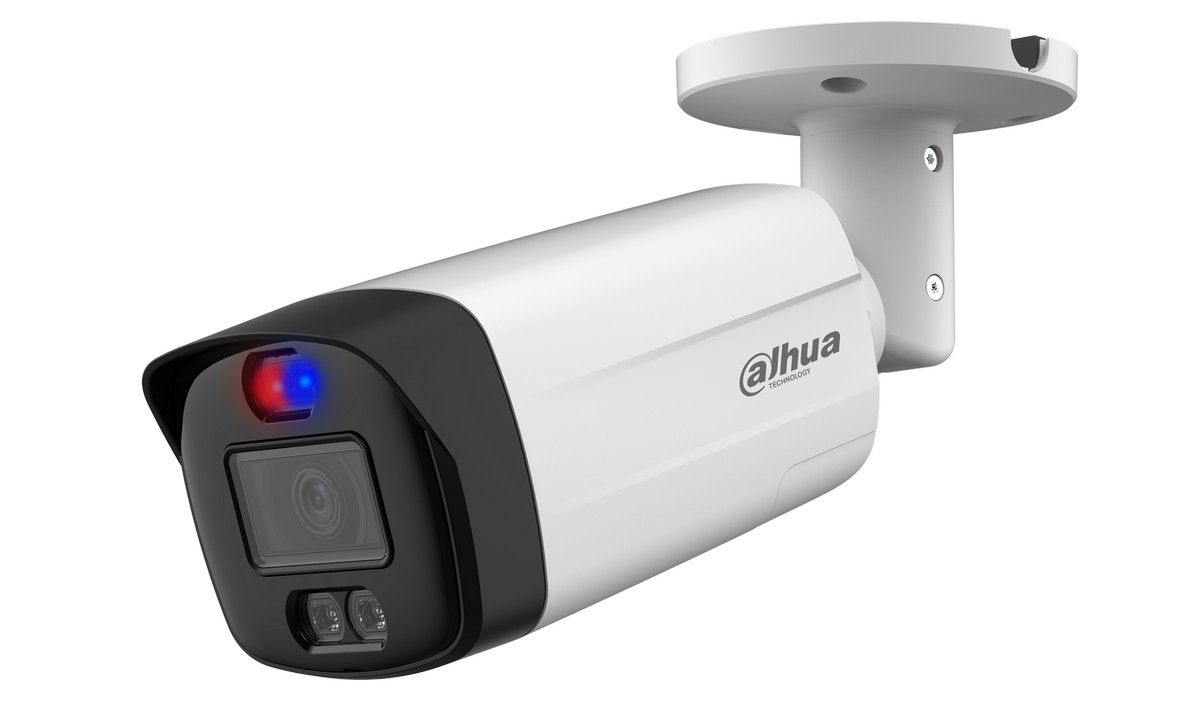

Surveillance camera Smart Dual Light 5MP lens 3.6mm IR 40m WL 40m bullet – Dahua – HAC-ME1509TH-A-PV-0360B-S2

Smart Dual Light 5MP surveillance camera – Dahua – HAC-ME1509TH-A-PV-0360B-S2

Specifications

Pixels and Sensor : The camera has a 5MP CMOS sensor, which ensures clear and detailed images. This is a good level of resolution for most surveillance applications.

Low Light : One of the impressive aspects of this camera is its ability to record in extremely low light conditions. With a minimum illumination of 0.001 lux in color mode and 0.0001 lux in black and white mode, the camera can capture images in almost any condition. And with the illuminator on, it”s capable of recording even in total darkness.

Illuminators : The camera has an illumination distance of 40 meters for both IR and LED illuminators, making it suitable for monitoring large areas, even in the absence of natural or artificial light. With a total of 4 illuminators (2 x 2), it ensures uniform and effective coverage of the targeted area.

Lens and Viewing Angle : The 3.6mm lens offers a fairly wide viewing angle, with 89 horizontal, 47 vertical and 104 diagonal. This ensures comprehensive coverage of the monitored space.

Frames Per Second : The camera offers a variety of frame rates depending on the output format and standard used. It is compatible with several standards, including CVI, AHD, TVI and CVBS, offering flexibility according to user needs and equipment.

Image Adjustment Features : The camera comes with a number of image adjustment features such as BLC, HLC, WDR and HLC-Pro, which help to achieve the best image quality in different lighting conditions.

Zoom and Audio : The camera features a 4x digital zoom, providing the ability to zoom in and examine specific details in images. It also has an audio input for one microphone channel, enabling real-time audio recording.

Certifications : It is certified by various international bodies, which guarantees the quality and safety of the product.

Connectivity : The camera offers a versatile video output, compatible with several standards, and has an audio input and an alarm output.

Power and Consumption : It works on a 12 VDC supply and has a maximum consumption of 10.5W.

Resistance and Durability : With an IP67 protection rating, the camera is resistant to dust and water. The material from which it is built combines metal and plastic, giving it durability and resistance to external conditions.

Dimensions and Weight : With dimensions of 240.7 mm x Φ90.7 mm and a weight of 740 g, the camera has a robust construction, but at the same time it is compact enough to be easily installed in various locations.

This video camera is a robust, versatile and efficient surveillance solution, ideal for various applications, be it residential, commercial or industrial. The combination of image quality, advanced features and durability make it an excellent choice for those looking for performance and reliability.

TECHNICAL SHEET
