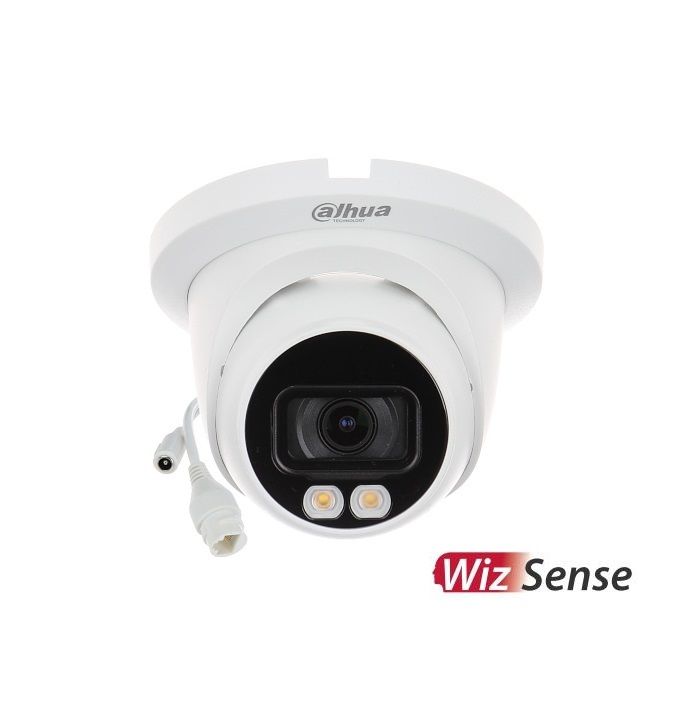

Surveillance camera HDW3549TM-AS Dahua IPC-0280B IP-LED Dome 5MP Full-color
Chamber CPI-HDW3549TM-AS-0280B LED from Dahua is equipped with a high-performance image sensor that provides color images even in the worst lighting conditions. This feature, together with illuminator LED warm white light that provides images from a distance of up to 30 meters, more accurate help detect motion in the monitored area.
network camera WizSense LED with fixed focus length, color, 5MP
& gt; 5MP CMOS image sensor 1 / 2.7 “, low light, high definition image
& gt; Outputs max. 5MP (2592 × 1944) @ 20 fps and supports 4MP (2688 × 1520) @ 25/30 fps
& gt; Codec H.265, high compression rate, bit rate ultra-low
& gt; Built warm light, max. Lighting distance: 30 m
& gt; ROI SMART + H.264 / H.265 +, coding flexible, applicable to various environments bandwidth and storage
& gt; Way rotation, WDR 3D DNR, HLC, BLC, digital watermark, apply different scenes monitoring
& gt; Intelligent detection: intrusion, Tripwire (accepted classification and accurate detection of vehicle and human)
& gt; Abnormality detection: motion detection, video manipulation, scene change detection, audio without SD card, SD card full SD card error, network disconnection, IP conflict, illegal access, voltage detection
& gt; Supports Max. G micro SD card 256, microphone
& gt; 12V DC / PoE, easy to install
& gt; IP67
& gt; SMD Plus
BLC (Back Light Compensation) help view the details of dark objects, and can filter items while very bright.
HLC (Highlight Compensation) created is a function of the need to reduce the intensity of the dazzling light that room can be subject (lights, reflectors, etc.). Perimeter protection can accurately recognize the man and the vehicle in a restricted area (such as the pedestrian or road), false detection of target types based smart (like Tripwire or intrusion) are reduced. People counting technology can track moving targets and process to achieve accurate statistics about the number of inputs and outputs and can generate reports yearly, monthly, weekly or daily. Among the special features of the camera Listed BLC, HCL, WDR (120 dB), Gain Control, 3D DNR setting self-adaptive, motion detection (4 rectangular area), ROI (4 zones), lighting smart, Mirror, private areas ( 4).
With advanced technology Wide Dynamic Range (WDR) network camera Dahua offers sharp detail in an environment where the brightness contrast is strong. You can get clear recordings even in bright or dark areas. High performance sensor and large aperture lens. Technology Dahua Smart Motion Detection ( SMD Plus ) classify targets that trigger motion detection and filter alarms triggered by targets unimportant to achieve alarms effective and effective.
The degree of protection IP67 is guaranteed by the standard, the camera is resistant to dust, rain etc., and the casing is made of metal + plastic. Has microphone, recordings can be made on an SD card (max. 256 GB – card not included). The power will be the 12V DC or PoE, and the operating temperature is in the range -40 ° C to + 60 ° C.
1 / 2.7 inch CMOS Progressive Scan
5 megapixels (2592 × 1944 pixels UHD)
RAM / ROM
Electronic Shutter Speed:
1/3 to 1 / 100,000 s
H: 98 °; V: 71 °; D: 129 °
Pan / Tilt:
Pan: 0 ° ~ 360 ° Tilt: 0 ° ~ 78 °; Rotation: 0 ° ~ 360
H.265; H.264; H.264H; H.264B; MJPEG (only supported under stream)
frames / second
Main Stream: 2592 × 1944 @ 1 to 20 fps / 2688 x 1520 @ 1-25 / 30 fps
Under Stream: 704 × 576 @ 1-25 fps / 704 x 480 @ 1-30 fps
Third Stream: 1280 × 720 @ 1-25 / 30 fps
H.264 3 kbps, 8192 kbps / H.265: 3 kbps, 8192 kbps
Day / night
Color / B / W
BLC, HCL, WDR (120 dB), Gain Control, 3D DNR setting self-adaptive, motion detection (4 rectangular area), ROI (4 zones), lighting smart, Mirror, private areas (4)
G.711; G.711Mu; G.726; AAC
lack of SD card; SD card full; SD card error; disconnecting the network; IP conflict; illegal access; motion detection; video manipulation; change decor; audio detection; change in intensity; Tripwire; intrusion; SMD
1x RJ-45 (10/100 Base-T)
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; fTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
ONVIF (profit / Profile G / T profiles); CGI; Milestone; Genetec
FTP; SFTP; SD Card (max. 256 GB – cfardul is not included); Dahua Cloud; NAS
IE, Chrome, Firefox
Smart PSS, DSS, DMSS
iOS / Android
12V DC / PoE
& lt; 8.4 W
-40 ° C – + 60 ° C
metal + plastic
121.9 x 99.1 mm ⌀
See pictures wherever you are!
Producers from Dahua allows users to download software on your mobile phone, allowing them to view live images and recordings made by surveillance systems. Also, downloading images can be done by computer browser.
Quick and easy!
gDMSS app for Android can be downloaded from HERE
iDMSS iPhone application can be downloaded HERE
