Surveillance camera Dahua IPC-E IP HF81230E Box 12MP CMOS 1 / 1.7 ”, Microphone, MicroSD ePoE

IP cameras Dahua IPC-HF81230E-E Box 12 MP CMOS 1 / 1.7inch, SMART + H.264 / H.265 +
& nbsp;
12MP Camera Network Box
& gt; Progressive scan 12 / 1.7 “CMOS ™ 12Megapixel STARVIS
& Gt; Triple stream encoding H.265 & amp; H.264
& Gt; @ 20fps 12M (4000 × 3000), 25 / 30fps @ 4K (3840 × 2160)
& Gt; DWDR, Day / Night (ICR) 3DNR AWB, AGC, BLC
& Gt; Multiple network monitoring: Web viewer, CMS (DSS / PSS) and DMSS
& Gt; Auto Focus (ABF)
& Gt; Micro SD memory PoE

Description:

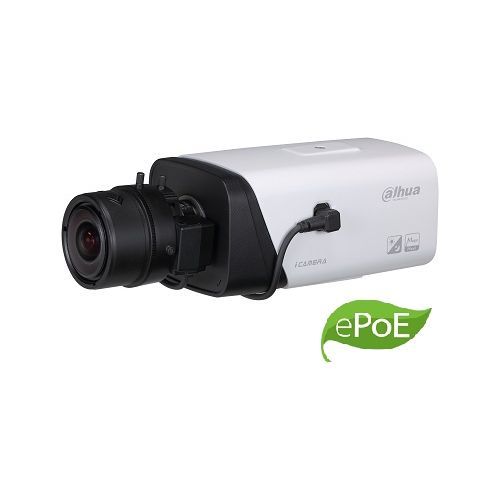

HF81230E CPI-E is a box type IP camera surveillance from Dahua. This camera is equipped with a sensor 1 / 1.7 “progressive scan CMOS 12Megapixel video with a resolution of 12 Megapixels at 20/30 frames / second. The image sensor is the part of the security camera that is mandated to receive information carried by light from the environment and transform that information into electrical impulses in order to form an image. The image sensor can be regarded as “window through which the camera looks environment”. As with a large window we can see more things than through a small window, so a larger image sensor can receive more information than a small image sensor. Our recommendation is to choose rooms with a larger image sensor.
PoE
You can power the camcorder from a power supply, but it provides the function of power through the network cable (PoE), ideal for use with an NVR includes a POE switch.
Technology ePoE of Dahua, designed procedure adopted advanced 2D-PAM3 encoding modulation of the physical layer, and performs full-duplex transmission over 800 meters at a speed of 10 Mbps or 300 meters at the speed of 100 Mbps by the Cat 5 or coaxial cable. Besides, food support PoE and PoC technology that has greatly simplified construction and wiring. Dahua ePoE offers new technology means to achieve long distance transmission between IP camera and network switch. It allows you to design more flexible surveillance system improves reliability and saves construction costs and cabling.

Camera Specifications:

Standard
TCP / IP

sensor
1 / 1.7 “Progressive Scan CMOS

Sensor Size
12.0 megapixel

Resolution
4000 x 3000 – 12.0 megapixel
4096 x 2160 – 8.8 megapixel
3840 x 2160 – 8.0 megapixel
3072 x 2048 – 6.3 megapixel
2560 x 1920 – 5.0 megapixel
2048 x 1536 – 3.1 megapixel
2304 x 1296 – 3.0 megapixel
1920 x 1080 – 1080p
1280 x 960 – 1.3 megapixel
1280 x 720 – 720p

Output video:
1 Vpp / 75 Ω

Goal:

Connector Auto Iris
DC

Sensitivity:
0.05 lux (color) / F1.2
0005 Lux (A / N) / F1.2

the signal / noise (S / N)
& gt; 50 dB

Video compression type:
H.265 / H.265 + / H.264 / H.264 + / MJPEG

Inputs / outputs for alarm
2/1

RS-485

protocols
Pelco-D , Pelco-P and other

bitrate
… 9984 kbps 14 kbps – H.265
16384 kbps 24 kbps … – H.264

FPS main stream
20 frames / s – 12.0 megapixel
25 frames / s – 8.0 megapixel

The network interface
100/1000 Base-T (R-45)

Protocols
IPv4 / IPv6 , HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, QoS, UPnP, NTP, Bonjour, IEEE 802.1 x, multicast, ICMP, IGMP, SNMP

Audio
Built-in microphone
External Microphone Input
Audio output
Support bidirectional audio streaming
Sound Detection

Web Server
embedded NVR Compatible

Max. users online:
20

ONVIF
16.12

Memory Card Slot:
Compatible with microSD cards max. GB 128

Access the mobile
Port: 37777 or access through cloud technology

default IP address:
192.168.1.108

Login / default admin password:
admin / –
Admin password is set to the first use

ports access through www
80 37 777

ports access through the PC
37777

ports access through mobile application:
37777

Port ONVIF
80

Power
ePoE
PoE (802.3af)
12V DC
24 V CA

consumption
W ≤ 8

Case
box, metal

color
White

Operating Temperature
-30 ° C … 60 ° C

weight
0.55 kg

Size:
135 x 74 x 65 mm

Camera Features:

Key Features:
EIS – Electronic image stabilization
D-WDR- a variety of dynamic lighting
3D-DNR – Digital interference reduction in image
ROI – improvement in image quality for the selected fragments
F-DNR (defog) – image noise reduction caused by rain
BLC – backlight compensation setting
HLC – backlight compensation (at)
AGC – automatic gain control
ABF – automatic correction of focus when changing between modes Day / Night
Auto White Balance
ICR – mechanically driven IR filter
Working mode day / night
motion detection
Area Protected Zone configurable
Sound Detection
Mirror – Mirror image
Sharpness – enhancement of image contours
thermal paper – in picture are shown in different colors traffic areas
Analysis IVS overflow line entry change scenario derelict / absence facial detection counting people

& nbsp;
See pictures wherever you are!
Producers from Dahua allows users to download software on your mobile phone, allowing them to view live images and recordings made by surveillance systems. Also, downloading images can be done by computer browser.
Quick and easy!
gDMSS app for Android can be downloaded from HERE
iDMSS iPhone application can be downloaded HERE
