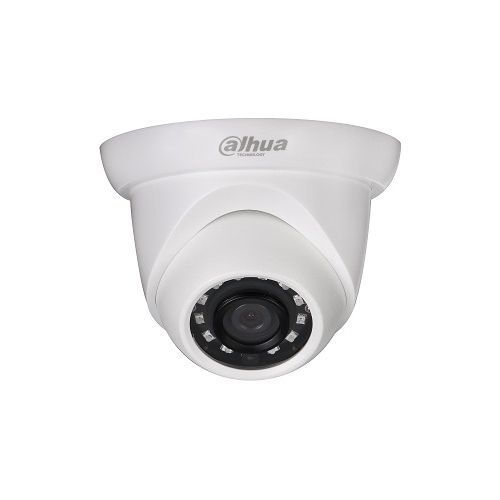

Surveillance camera Dahua IPC-0280B HDW1431S-S4 IP Dome 4MP CMOS 1/3, H.265 +, 2.8mm, IR30m, IP67, PoE

IP Surveillance Camera Dome Eyeball Dahua IPC-0280B HDW1431S-S4
HDW1431S IPC-0280B-S4 is a surveillance camera dome IP Dahua , equipped with a 1/3 inch Progressive CMOS sensor, which provides a 4 megapixel video resolution (2688 x 1520 pixels). 2.8 mm fixed lens makes it possible viewing angle H: 93 °, V: 53 °, D: 111 ° for monitoring and surveillance of the targets.

BLC (Back Light Compensation) help view the details of dark objects, and can filter items while very bright.
Technology Smart IR allows providing clear images in a place with low light or complete darkness. Technology Smart IR Adjust intensity infrared LEDs that compensate object distance. This prevents the LEDs to whiten images as you approach the camera. Integrated infrared camera provides a high performance in environments with extreme low light at a distance of 30 m.
motion detection technology Motion Detection allows when moving objects appear in the image trigger alarm monitoring or recording.
HLC (Highlight Compensation) created is a function of the need to reduce the intensity of the dazzling light that room can be subject (lights, reflectors, etc.).
With advanced technology Wide Dynamic Range (WDR) network camera Dahua offers sharp detail in an environment where the brightness contrast is strong. You can get clear recordings even in bright or dark areas.
protection degree IP67 is guaranteed standard camera is resistant to dust, rain.

& nbsp;
Camera Specifications:

Sensor
Progressive scan CMOS 1/3 inch

Resolution
4 megapixels (2688 × 1520 pixels UHD)

RAM / ROM
128/128 MB

Electronic Shutter Speed:
1/3 s-hundred thousandth and

Sensitivity:
0.003 Lux

IR illuminator distance:
30 m

IR LED:
12

lens

Fixed Lens:
2.8 mm

Aperture
2.0 M

Viewing Angle:
H: 93 °; V: 53 °; D: 111 °

close focus distance:
0.8 m

Pan / Tilt:
Pan: 0 ° – 355 ° Tilt: 0 ° ~ 78 °; Rotation: 0 ° ~ 360 °,

Video

Video compression:
H.265; H.264; H.264B; MJPEG

streaming capability:
2 streams

frames / second
Main Stream: 2688 × 1520 (1 fps 20 fps) / 2560 x 1440 (1 fps 25/30 fps)
Under Stream: 704 × 576 (1 fps-20/25 fps) / 704 × 480 (1 fps-20/30 fps)

Bitrate:
H.264: 6144 Kbps, 32 Kbps / H.265: 6144 Kbps, 12 Kbps

Day / night
Auto (ICR) / Color / B / W

Special features:
Auto (ICR), BLC, HCL, WDR (120 dB) gain control, 3D DNR, motion detection (4 rectangular area), ROI (4 zones), Smart IR mirror, privacy masking (4 rectangular area)

Network

Ethernet
1x RJ-45 (10/100 Base-T)

Protocol
HTTP TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; fTP; DHCP; DNS; DDNS; PPPoE; IPv4 / v6; QoS; UPnP; NTP; RTMP; multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP

Interoperability
ONVIF (profit / Profile G / T profiles); CGI; Milestone;

Access users:
max. 20

Storage
Dahua Cloud; fTP; SFTP; NAS

Web
IE, Chrome, Firefox

Software Management:
Smart PSS, DSS, DMSS

Compatible
iOS / Android

General

Protection grade:
IP67

Power
12V DC / PoE (802.3af), power supply is not included

Consumption:
& lt; 4.9 W

Temperature:
-40 ° C – + 55 ° C

Housing material:
metal + plastic

Size:
84.9 x 108 mm ⌀

weight
0.27 kg

See pictures wherever you are!
Producers from Dahua allows users to download software on your mobile phone, allowing them to view live images and recordings made by surveillance systems. Also, downloading images can be done by computer browser.
Quick and easy!
gDMSS app for Android can be downloaded from HERE
iDMSS iPhone application can be downloaded HERE
& nbsp;
SHEET TECHNICAL
