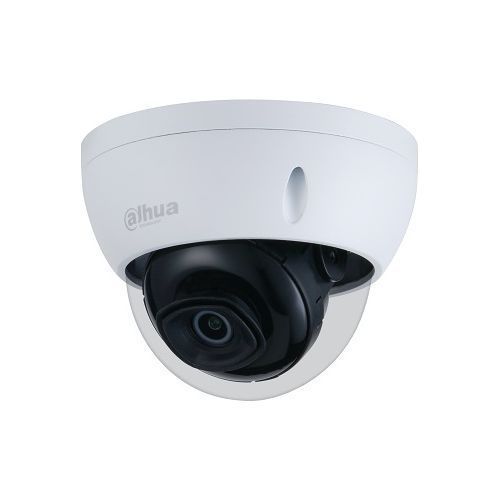

The surveillance camera Dahua IPC-HDBW2431E-S-0280B-S2 IP Dome 4MP CMOS 1/3 ”, H.265 +, 2.8mm, IR30m, MicroSD, IP67, IK10, PoE, metal housing
IP dome surveillance camera, Dahua, a 1/3 inch CMOS sensor Progressive, which offers a video resolution 4 megapixel (2688×1520 pixels). 2.8 mm fixed lens makes it possible viewing angle of 102 ° (tested products).
HDBW2431E IPC-S2-S-0280B is a surveillance camera dome IP Dahua, equipped with a 1/3 inch Progressive CMOS sensor that provides a video resolution of 4 megapixels ( 2688×1520 pixels). 2.8 mm fixed lens makes it possible viewing angle of 102 ° (tested products).
The camera operates at temperatures between -40 and +60 degrees Celsius.
WDR (Wide Dynamic Range)
WDR is a technology used by cameras, in order to balance the video having a high dynamic range. This is a feature that gives room possibility of applying separate intensities of light for the same image. This is ideal for images that include both bright areas and dark areas.
DNR is a function that reduces image noise, in order to improve image quality cameras. In particular, it reduces the noise that is generated in low light conditions.
3D refers to three dimensions and built-in 3D DNR. Is a digital noise reduction circuit, able to reduce image noise and improve color mixed failure.
BLC (Back Light Compensation)
Function BLC (Backlight Compensation) is often used images in a bright light source is behind the subject of interest. In this case, the subject would appear only as a black outline. BLC exposure allows the camera to adjust the entire image to highlight the correct object in the foreground. BLC help visualize details dark objects, and can filter items while very bright.
HLC (High Light Compensation)
HLC allows cameras to identify areas with high brightness, compensating exposure to these areas, to be played sharp. The most common use of this function is digital car plates reading at night, protecting the image against overexposure caused by car headlights, reducing the intensity of glare.
necessary mounting accessories are not included but you can choose from here.
Sensor: 1/3 inch CMOS Progressive
Resolution 4 Megapixel (2688×1520 pixels)
ROM / RAM: 128 MB / 128 MB
Electronic Shutter Speed: 1/3 s-hundred thousandth s
Sensitivity: LUX 0008
IR illumination distance: 30 m
Number of IR LEDs 3
Pan / Tilt: 0-355 ° / 0-65 ° rotation: 0-355 °
Fixed lens: 2.8 mm
Viewing angle: 121 °
Minimum Focus Distance: 0.9 m
IVS: Tripwire; intrusion
Video Compression: H.265; H.264; H.264B; MJPEG
Main stream: 1920 × 1080 (1 fps-25/30 fps)
Under stream 704 × 576 (1 fps 25 fps), 704 × 480 (1 fps to 30 fps)
Bitrate: H.265; H.264; H.264B; MJPEG
Special features: Auto (ICR), BLC, HLC, WDR 120dB Gain Control, 3D DNR, motion detection, ROI (4 zones) IR Smart Mirror, Privacy Masking
Network RJ-45 (10/100 Base-T)
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; fTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability ONVIF (Profile S / G profiles), CGI, Genetec, P2P, Milestone
Number of visitors: 20
Storage: Cloud Dahua; fTP; SFTP, max 256 GB Micro SD card (not included), NAS
Management Software: Smart PSS; DSS; DMSS
Compatible: iOS, Android
Power supply: 12V DC / PoE (802.3af)
Operating Temperature: -40 to + 60 ° C
rotary See more room here.
See pictures wherever you are!
Producers from Dahua allows users to download software on your mobile phone, allowing them to view live images and recordings made by surveillance systems. Also, downloading images can be done by computer browser.
Quick and easy!
gDMSS app for Android can be downloaded from HERE
iDMSS iPhone application can be downloaded HERE
