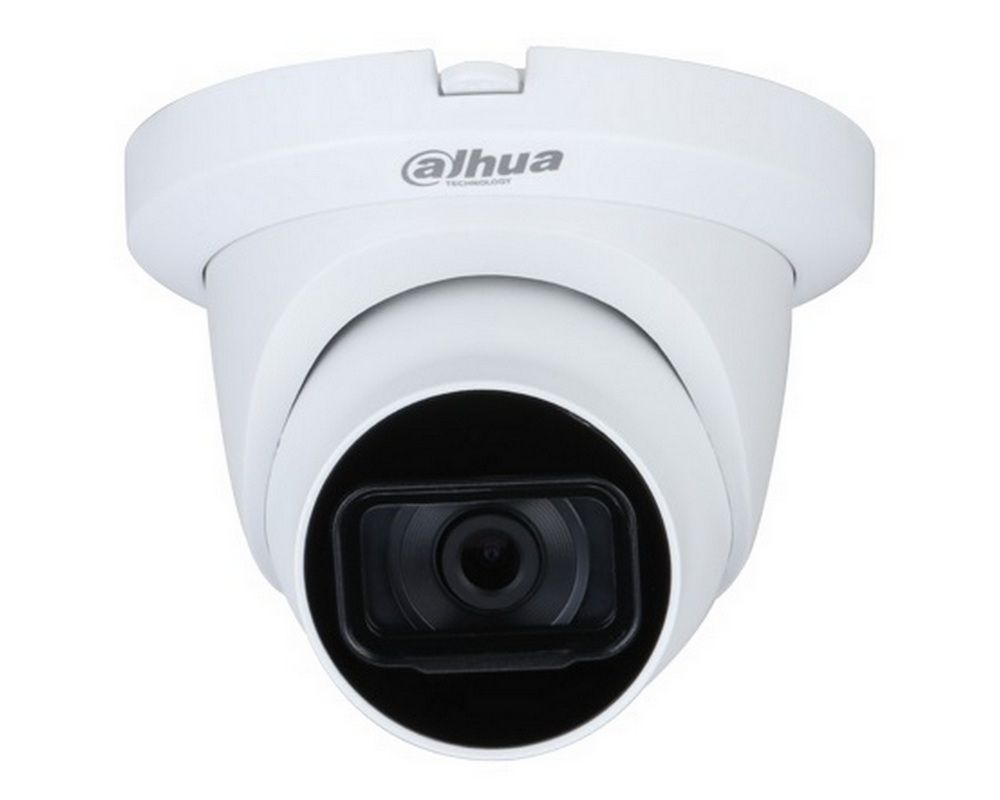

Dahua 2MP surveillance camera – HAC-HDW1200TLMQ-A-0280B-S6
Specifications
Format | Domes |
Case material | Metal+Plastic |
Water/dust protection | IP67 |
HD | Yes |
trays | Yes |
CVI | Yes |
CVBS | Yes |
feeding | 12 VDC ± 30% |
Consumption | 3.2 W |
Operating temperature | -40 oC ~ +60 oC |
size | Φ 109.9 x 88.1 mm |
Weight | 440 g |
Chamber | Analogy |
Fixed lens | 2.8 mm |
Viewing angle | H: 102o; V: 60o; D: 129o |
Focus distance | 0.5m |
Resolution | 2MP |
Effective resolution | 1920 (H) x 1080 (V) pixels |
Sensor type | CMOS |
IR type | IR light |
Number of IR LEDs | 1 |
IR distance | 30 m |
Resolutions supported |
1080p (1920 x 1080); 960H (960×576/960×480)
|
Second frame | 25 – 30 |
Night filming | Auto(ICR)/Color/B/W |
Minimal lighting | 0.01 lux@F2.0 (Color, 30 IRE) 0.001 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
D-WDR | Yes |
White balance | Cars; Area white balance |
Noise reduction | 3D NO |
Privacy Mask | Off/On (8 areas, rectangle) |
Integrated microphone | Yes |
DESCRIPTION
The DH-HAC-HDW1200TLMQ(-A) is an easy-to-install infrared surveillance camera with a compact and efficient design. Here is a detailed and simplified description of its features:
High Video Quality : The camera has a resolution of 2MP (megapixels), providing clear images at a maximum resolution of 1080P (1920×1080 pixels). This means you will be able to see fine details and recognize objects or people in images.
HDCVI technology : The camera uses HDCVI technology, which means it can simultaneously transmit video, audio, data and power signals through a single coaxial cable. This significantly simplifies the infrastructure required for the surveillance system.
Long Distance Transmission : HDCVI allows real-time transmission of video images over long distances without quality loss. Supports transmission up to 800m for 1080p and 1200m for 720p via coaxial cable.
Smart IR technology : The camera is equipped with IR illumination at a distance of 30 meters allowing the capture of images even in low light conditions or in complete darkness. Smart IR technology adjusts the intensity of the IR LEDs to prevent overexposure of nearby objects.
Multiple Functions : Supports multiple video formats (HDCVI, CVBS, and two other common analog HD formats), has a multilingual OSD (on-screen menu), and offers various picture settings and functions, such as lighting control, white balance, privacy mask and motion detection.
Protection and Durability : The camera has an IP67 degree of protection, which means that it is resistant to dust and water, making it suitable for both indoor and outdoor use. It is also designed to operate in extreme temperature conditions and has surge and lightning protection.
Built-in Microphone : The camera includes a built-in microphone , allowing sound from around the camera to be captured, which adds an extra layer of security and information.
