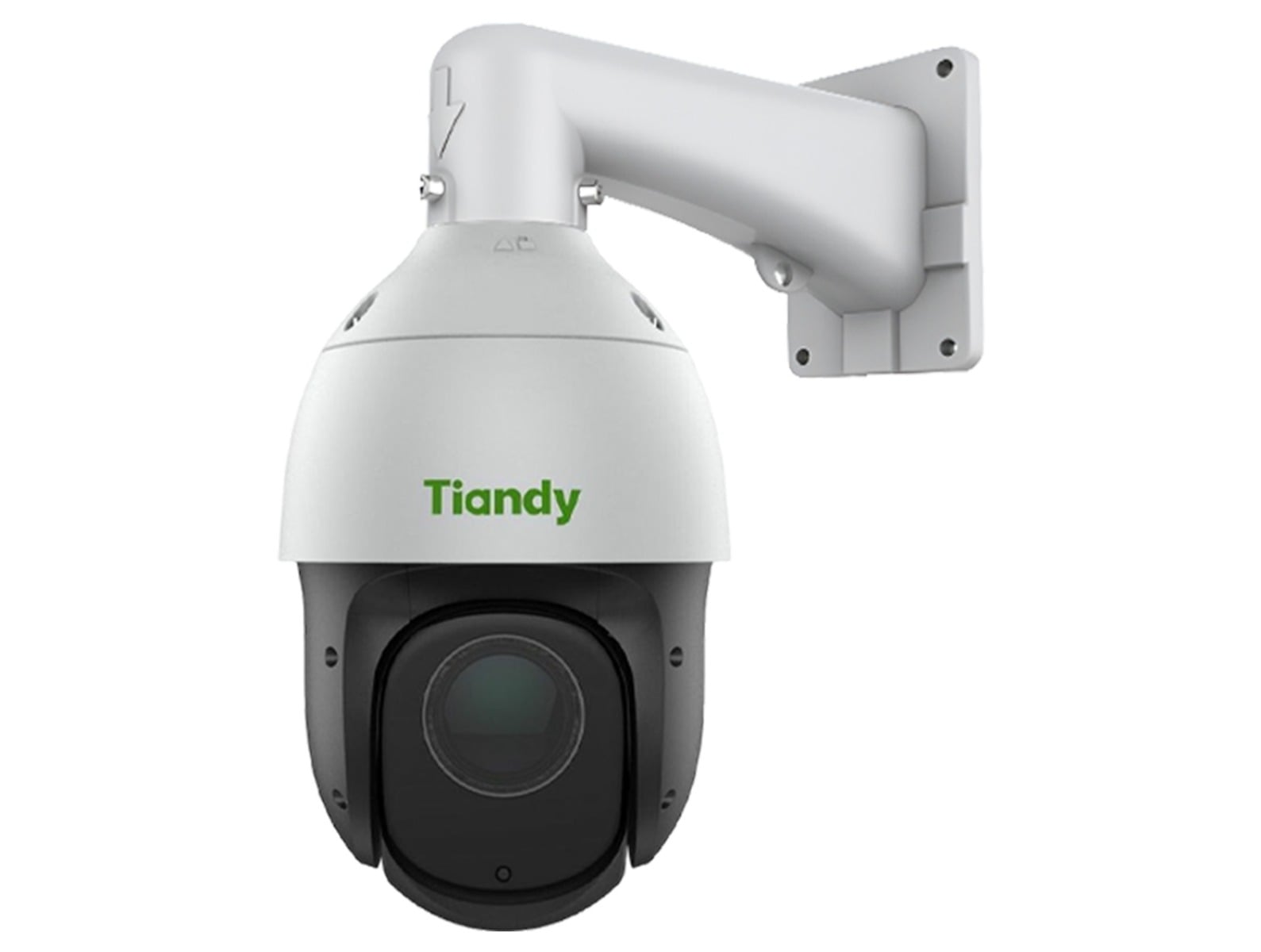

Speed dome PTZ Pro series Tiandy TC-H324S-23XIECV3.0, 2MP, 23x optical zoom, IR 150m, microSD slot, PoE, IP66

The Tiandy TC-H324S-23XIECV3.0 Full HD surveillance camera offers clear and detailed images, being equipped with a 5-155 mm motorized varifocal lens and a 23x optical zoom, ideal for monitoring distant targets. It has IR illumination of up to 150m, ensuring optimal visibility at night. It supports local storage on a microSD card and includes advanced functions for identifying people and vehicles. The camera can be controlled via a mobile application, providing flexibility and remote access. Built from durable metal, it has an IP66 protection rating, making it suitable for use in harsh environments. It is powered by 12V or PoE, and ONVIF interoperability ensures compatibility with various security systems. The package includes the mounting arm and power supply, facilitating quick installation.

Technical specifications of Tiandy IP PTZ camera, 2MP, IR 150m, PoE – TC-H324S-23XIECV3.0:

• Manufacturer: Tiandy
• Sensor: 1/2.8″ CMOS
• Resolution: 2MP (1920×1080)
• Video compression: S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
• Minimum Illumination: Color: 0.001 lux @ (F1.5, AGC ON); Black and White: 0 lux with IR
• IR distance: up to 150m
• Lens: motorized varifocal 5-115mm
• PTZ: Pan: 360; Tilt: -16~90; Manual speed: 0.1～80/s
• Zoom: optical 23x
• Communication interface: 1x RJ45 (10/100Base-T)
• Recording: microSD card slot, supports up to 512 GB (not included)
• Special functions: person/vehicle classification, motion detection, tripwire, perimeter detection, facial capture
• Protection degree: IP66
• Power supply: DC12V±10%; PoE: IEEE 802.3at
• Consumption: 7.3W (IR off); 17.6W (IR on)
• Operating temperature: -30℃~65℃
• Case type: Speed Dome, metal + plastic
• Dimensions: 161mm (W) x 276mm (H)
• Weight: net 2.1kg; gross 3.7kg
