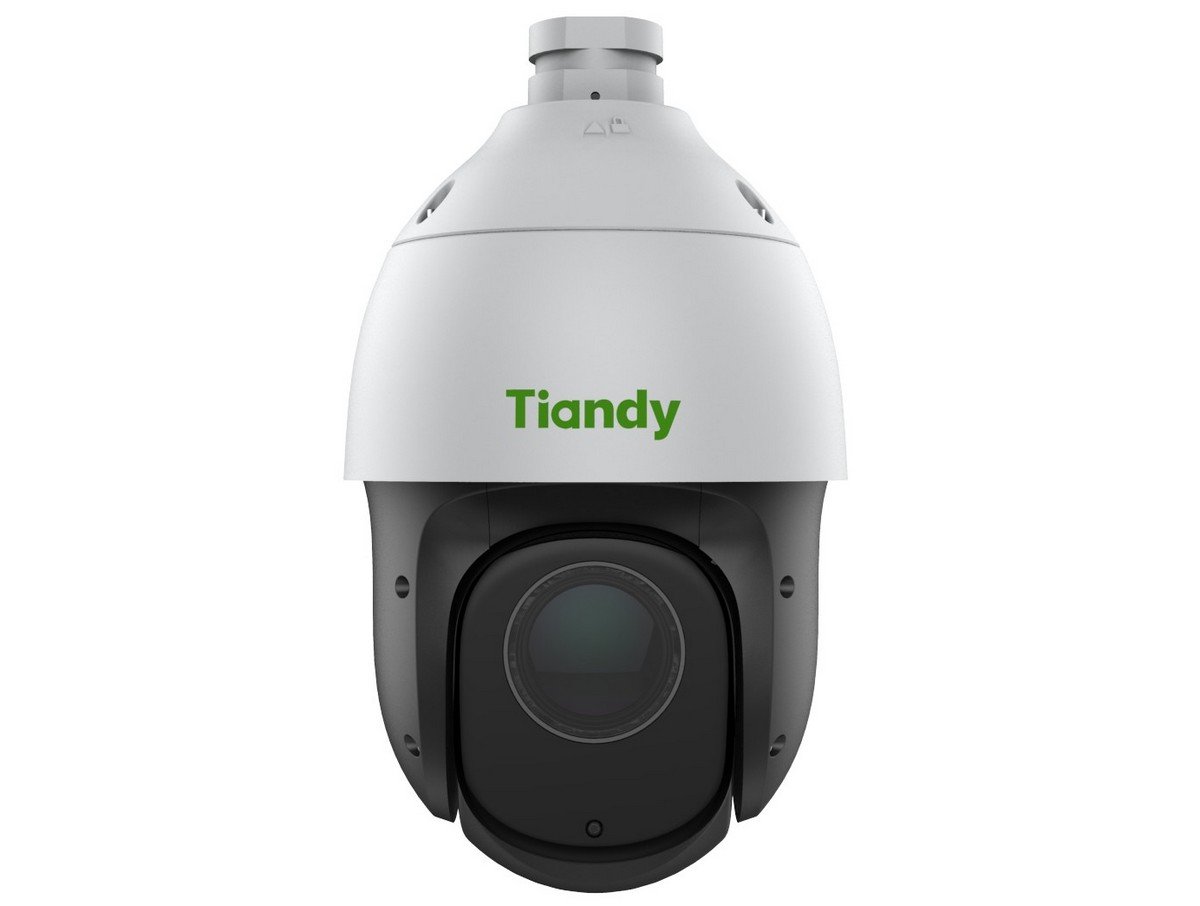

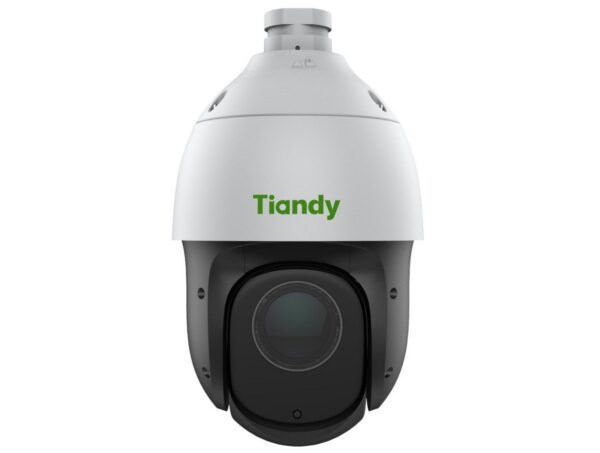

Speed dome IP PTZ Tiandy, 5MP, 5mm-115mm, 23x optical zoom, IR 150m, microSD slot, PoE – TC-H354S-23XIEV3.1

The Tiandy TC-H354S-23XIEV3.1 5MP PTZ IP surveillance camera offers clear and detailed images, being equipped with a 5-115mm varifocal lens and a 23x optical zoom for precise capture of distant targets. It has IR illumination of up to 150m, allowing night vision. It supports local storage on a microSD card and includes intelligent target classification. It can be controlled via mobile application, and the power supply is via 12V or PoE. With an IP66 protection index and IK10 vandal resistance, it is ideal for use in difficult environments.

Technical specifications of the Tiandy vandal-proof PTZ IP camera, 5MP, 23x Zoom, IR 150m:

• Manufacturer: Tiandy

• Sensor: 1/2.7″ CMOS

• Resolution: 5MP (2880×1620)

• Video compression: S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG

• Minimum Illumination: Color: 0.001lux@ (F1.6, AGC ON); Black and White: 0lux with IR

• IR distance: up to 150m

• Lens: motorized varifocal 5mm~115mm

• PT: Pan: 360; Tilt: -16~90; Manual speed: 0.1～80/s

• Zoom: optical 23x; digital 16x

• Communication interface: 1x RJ45 (10/100Base-T)

• Audio: 1 input (impedance 1kΩ, 2.0~2.4Vp-p); 1 output (impedance 600Ω)

• Recording: microSD card slot, supports up to 512 GB

• Special functions: person/vehicle classification, motion detection, tripwire, perimeter detection, facial capture

• Alarm: 1 input and 1 output (≤DC24V, ≤1A)

• Protection degree: IP66; vandal protection IK10

• Power supply: DC12V±10%; PoE: IEEE 802.3at

• Consumption: 8.1W (IR off); 19.4W (IR on)

• Operating temperature: -30℃~65℃

• Case type: Speed ​​dome, metal + plastic

• Dimensions: 161mm (W) x 276mm (H)

• Weight: net 2.2kg; gross 3.9kg
