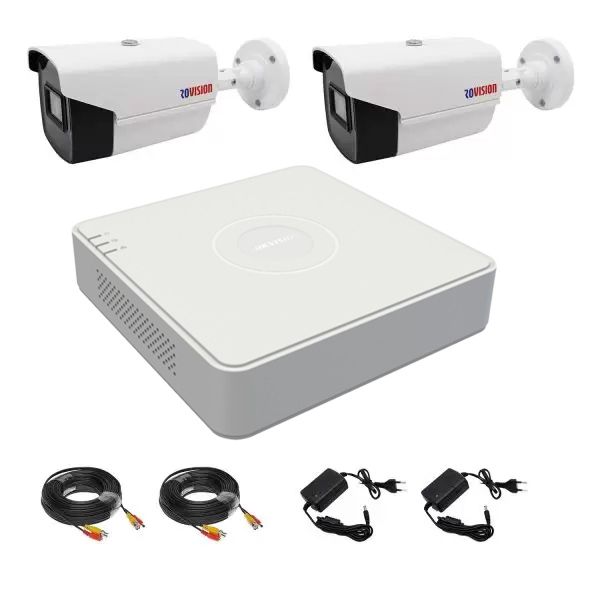

The system contains:
- 2x 2MP full hd IR40m surveillance camera
- 1x Pentabrid DVR 4 channel Rovision
- 2x Crimp cable 10m
- 2x 12V 1A power supply
2MP full hd IR40m surveillance camera
The ROVISION2MP22 surveillance camera, compatible with any type of DVD at least 1080N, has a video resolution of 2 Megapixels and a fixed 2.8mm lens. The camera is equipped with IR LEDs that offer the ability to view images at a distance of 40m at night. It has a degree of protection IP67 that protects the camera from external factors which makes it suitable for outdoor space. Among the special functions, the camera is equipped with BLC , HLC and DWDR. ICR ( IR Cut Filter ) is a filter located between the lens and the image sensor of the surveillance camera and is used to filter excess light. This filter helps the camera to transmit images of good quality and color accuracy. Smart IR is the technology that ensures uniformity of brightness in B / W (Black / White) mode in low light conditions. BLC is the function that corrects the image when exposed to too much light or too little light. HLC reduces the amount of light a camera can be exposed to and helps identify objects that are being watched at night. DWDR (Digital Wide Dynamic Range) standardizes the light source so that details can be identified when subjected to too much or too little light exposure, and the IR Cut Filter ( ICR ) is an infrared filter responsible for blocking IR radiation from the atmosphere during of the day.
Other details:
- Plastic and metal housing
- 4 in 1 camera osd button various technologies ahd, cvi, tvi cvbs
- Operating temperature ranges from -40 ° to 60 °
- Dimensions: 78, 9mm x 75, 4mm x 216, 6mm
- Weight: 0.32 kg
- Power supply: 12V DC
Pentabrid DVR 4 channel 1080N
Technical specifications:
DVR RO7104 | |
Video inputs | 4 BNC channels |
Encoding Resolution | When 1080p Lite mode is enabled: 1080p lite / 720p / WD1 / 4CIF / VGA / CIF
When 1080p Lite mode is not enabled: 720p / WD1 / 4CIF / VGA / CIF |
HDMI / VGA video output | 1-ch, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz |
Video compression | H.264 + / H.264 |
Registration resolution | TURBO HD 1080p25, 1080p30, 720p25, 720p30
HDCVI 1080p25, 1080p30, 720p25, 720p30 CVBS 1080p25, 1080p30, 720p25, 720p30 |
Registration rate | Main stream: 1080p lite / 720p / WD1 / 4CIF / VGA / CIF @ 25fps (P) / 30fps (N)
Secondary Stream: 2CIF @ 6fps; CIF / QVGA / QCIF @ 25fps (P) / 30fps (N) |
Bit Rate Video | 32 Kbps up to 4 Mbps |
Audio | G.711u Audio Compression
64Kbps audio bit rate 1-ch input, RCA (2.0 Vp-p, 1 KΩ) 1-ch output, RCA (Linear, 1 KΩ) |
Auxiliary interface | 1.0 Sata port that supports HDD up to 6TB
2x USB 2.0 |
Overview | |
Consumption | 8W |
Official temperature | From -10 to +55 ° C |
Operating humidity level | 10% to 90% |
size | 265 × 225 × 48 mm |
Weight | 0.8 KG Without HDD |
certifications | FCC Part 15 Subpart B, ANSI C63.4-2014 CE EN50130-4, EN 61000-3-2, EN 61000-3-3 |
Internet protocols | TCP / IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP ™, HTTPS |
Network interface | 1, RJ45 10M / 100M self-adaptive Ethernet interface |
Menu language | Configured in English, can be switched to Romanian from the menu |
10m crimp cable
- BNC + DC
- power supply + video signal
- 2 DC Joint (Female and Male): 5.5 * 2.1mm
- for surveillance cameras
- 4mm thick copper
12V 1A power supply
- Input voltage: 100-240 AC
- 50-60Hz
- Output voltage: 1A
- Cable length: 100CM
- DC Joint: 5.5 * 2.1mm – Output Voltage: DC 12V
- DC Line: 100cm- Range of Output Current: 0-3A
- light
