The 5MP surveillance camera is designed to provide clear and detailed images even in low-light conditions, thanks to its 1/2.9″ CMOS sensor and advanced image processing technologies. The resolution of 2880 × 1620 at 25/30 fps ensures smooth and realistic captures, ideal for monitoring residential or commercial areas.
The camera uses H.265 compression to reduce bandwidth and storage usage, while its dual lighting system (IR + warm light) allows night visibility up to 30 meters. WDR, 3DNR, HLC, and BLC functions automatically adjust the image to achieve maximum clarity in any scene.
This model includes smart detection features such as motion, video tampering, abnormal sound, IP conflict, or unauthorized access. The built-in microphone captures audio, and power can be supplied via 12V DC or PoE for easy installation. With IP66 protection, the camera withstands rain, dust, and harsh weather conditions. Additionally, human detection technology reduces false alarms and improves alert accuracy.

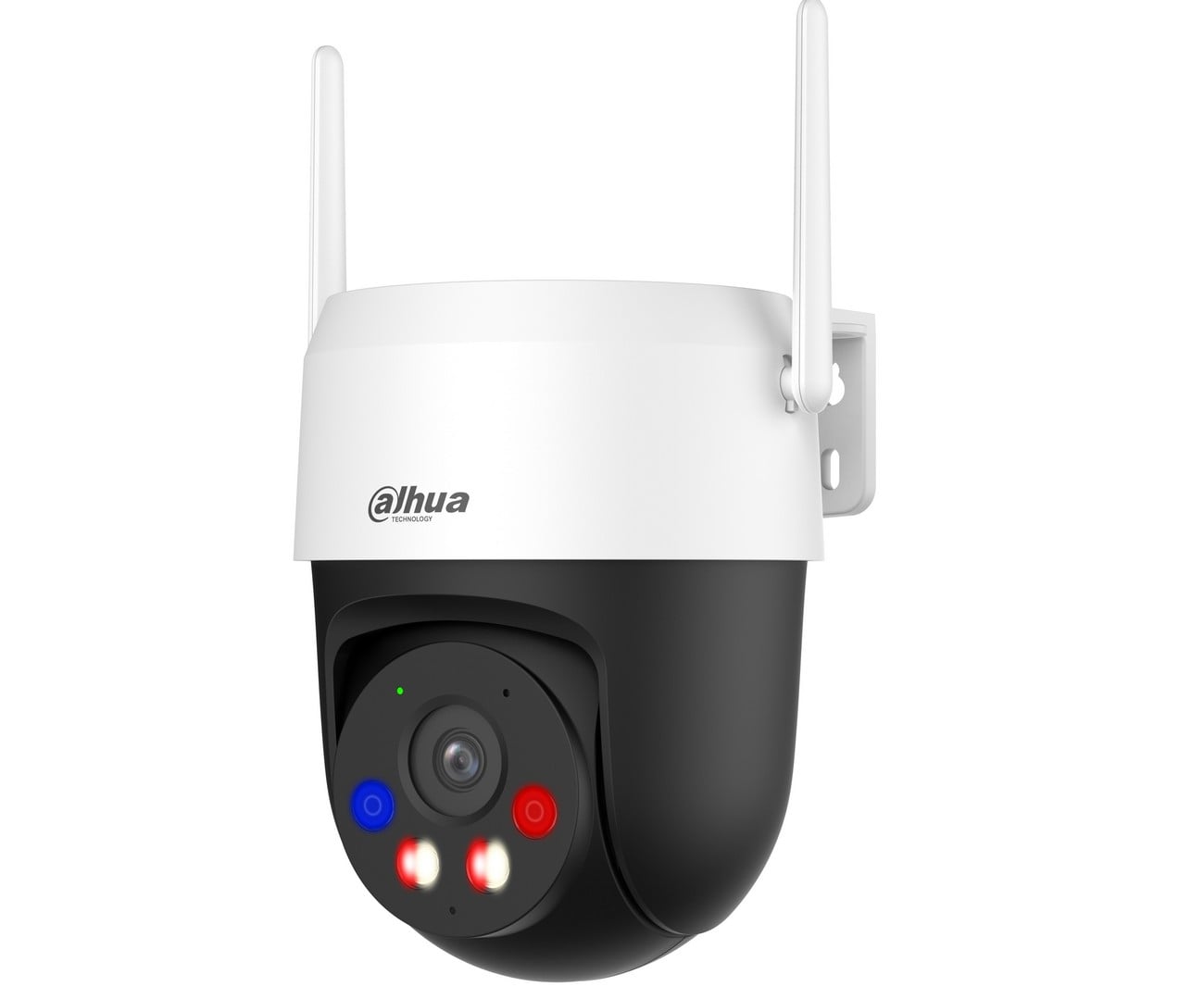

Technical Specifications Rotating Wireless IP Camera Dahua, Wi-Fi 6, 5MP, 4mm Lens, Dual Light, Alarm:
-
Image Sensor: 1/2.7″ CMOS
-
Maximum Resolution: 2880 × 1620 (5MP)
-
Minimum Illumination: 0.007 lux (color), 0.0007 lux (B/W), 0 lux (with illuminator on)
-
Illumination Distance: Up to 30 m (IR + warm light)
-
Illuminators: 2 (combined IR + warm light)
-
Adjustable Angles: Pan: 0345; Tilt: 090; Rotation: 0345
-
Lens: Fixed 4.0 mm, F1.6
-
Field of View: Horizontal: 78, Vertical: 42, Diagonal: 92
-
Smart Detection: AI Human Detection, AI Vehicle Detection
-
Auto-Tracking: Yes
-
Smart Dual Light: Yes
-
Audio-Visual Alarm: Yes, with red/blue LEDs and sound
-
Built-in Microphone: Yes
-
Built-in Speaker: Yes
-
Video Compression: H.265, H.264, MJPEG
-
Frame Rate: Up to 30 fps (main: 2880×1620, sub: 640×360)
-
Storage: microSD slot (up to 256 GB)
-
Wi-Fi Connectivity: Wi-Fi 6 (2.4 GHz & 5 GHz, 802.11a/b/g/n/ac/ax)
-
Pairing: Bluetooth pairing
-
Interoperability: ONVIF (Profile S/G/T), CGI
-
Compatible Apps: DMSS, Smart PSS Lite, DSS
-
Abnormal Sound Alarm: Yes
-
Protection: IP66
-
Operating Temperature: -30C to +55C
-
Humidity: Up to 95% RH (non-condensing)
-
Power Supply: 12 VDC (±30%)
-
Power Consumption: 2 W (base), max. 14 W (all functions active)
