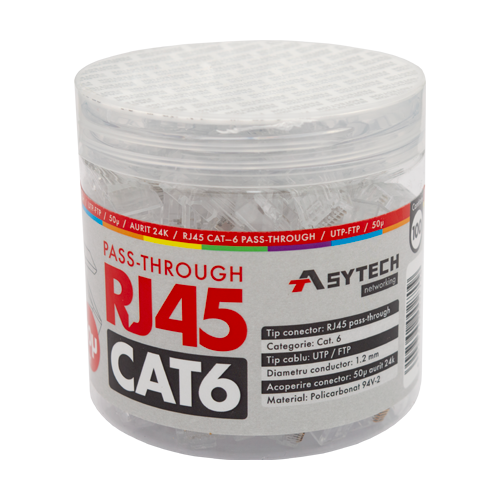

RJ45 connector cat. 6 unshielded for UTP cable that allows easier and safer crimping due to the passage of the conductors through the socket. In this way, a much easier inspection of the correct arrangement of the conductors can be made.
For quick crimping, we recommend the RJ45-TOOL-EZ pliers. Can also be crimped with normal pliers, the conductors having to be cut manually. 8 copper pins, nickel-plated and gold-plated 50 microns, for exceptional protection and transmission speed. Packaging unit: jar of 100 pieces
Technical specifications:
- Manufacturer: ASYTECH Networking
- Material: Polycarbonate 94V-2
- Pin material: nickel-plated and gold-plated copper 50µ
- Insulation resistance: > 500 MOhm
- Contact resistance: max. 20 mOhm
- Durability: min. 1500 connections
- Packaging: jar of 100 pcs.
- Conductor diameter: 1.2 mm
