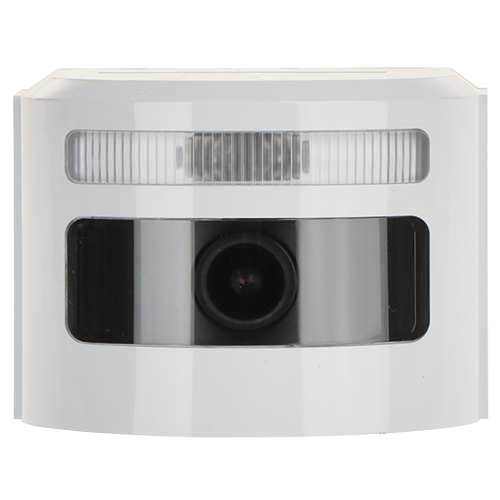

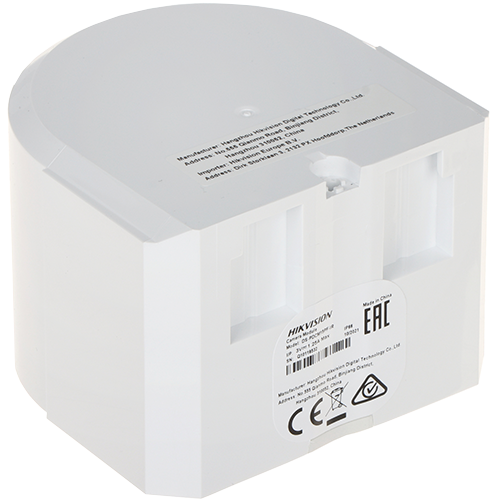

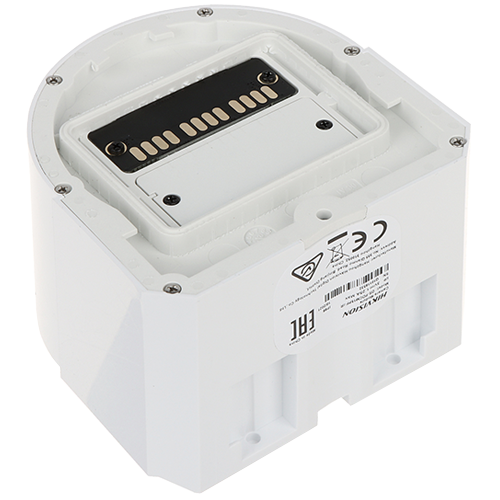

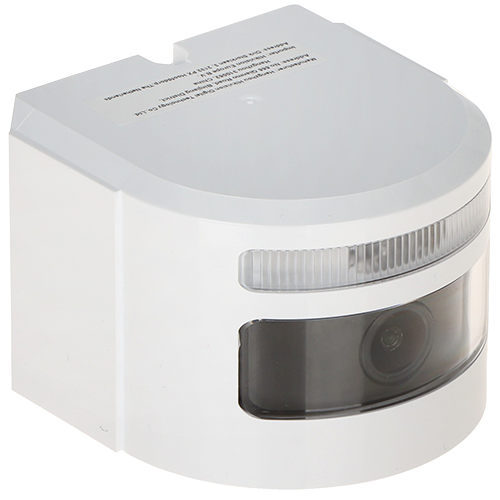

The camera is compatible with the new types of Tri-tech wireless detectors, the 2.0 mm lens ensures color images with resolutions of 640×480, 320×240, 160×120. Possibility to adjust the angle to match that of the PIR detector. Quick installation, IP66 protection.
It can equip the following detectors: DS-PDTT15AM-LM-WB and DS-PDTT15AM-LM-WE .
Model / manufacturer: HIKVISION
Lens: fixed 2.0mm viewing angle 137.2°
Power supply: 3 VDC 1200mA
Sensor: 1/2.7″ Progressive Scan CMOS
Operating temperature: -25°C ~ +60°C IP66 (outdoor use)
Resolution: 640 x 480 320 x 240 160 x 120
Dimensions: 74.1mm × 72.35mm × 53mm
Weight: 155 gr.
Communication interface: 12-Bit
Image capture distance: 15m with IR Auto switch
“
