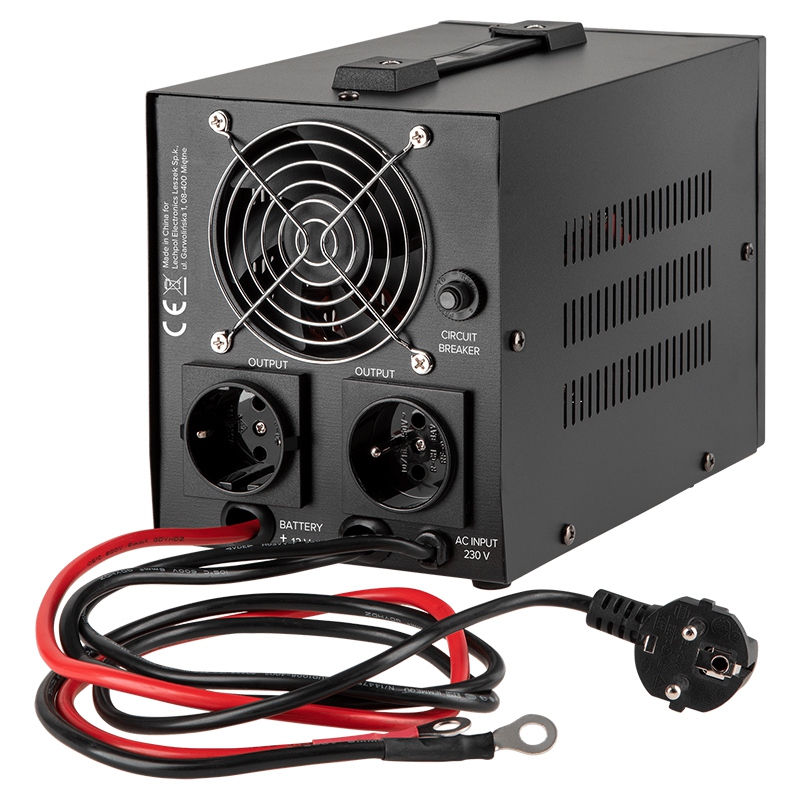

This 300 W REBEL RB-4001 UPS is designed to provide reliable and continuous protection for essential equipment. It accepts an input voltage between 190 and 260 V AC and provides a stable output of 230 V AC ±5%, generated with a pure sine wave, ideal for equipment sensitive to voltage variations. It works with an external 12 V DC battery, which it charges with a maximum current of 10 A. The fast switching time, of a maximum of 4 ms, ensures an uninterrupted transition between the main power source and the backup battery, protecting the equipment against fluctuations and voltage drops.
UPS REBEL RB-4001 technical specifications:
- Nominal power: 300 W
- External battery voltage: 12 V DC
- Maximum battery voltage: 15V DC
- Mains input voltage range: 190 – 260 VAC
- Input voltage frequency: 45 ~ 60Hz
- Output voltage: 230 VAC +/-5% / Inverter: 230 VAC +/-3%
- Output voltage frequency: 50/60Hz +/-0.5Hz
- Output voltage shape: pure sine wave
- Efficiency: >=85% (DC to AC)
- Battery charging current: Max. 10 A
- Battery capacity: 50-200 Ah (recommended: 55 Ah)
- Estimated charging time: 4-14 hours (depending on battery capacity)
- Switching time: <=4ms
- Protection against: overload, short circuit, too high or too low voltage
- Operating temperature: 0-40C
- Operating humidity: 10 – 90%
- Dimensions: 235x143x178 mm
- Weight: 4.3 kg
