It”s time to upgrade your outdoor protection to 4K Ultra HD clarity. As the latest camera in the H8c family, it offers stunning 360-degree detail to significantly reduce blind spots. Being a multifunctional camera, H8c not only improves your visual experience, but also better protects the exterior thanks to its advanced detection functions. Visualization, detection, deterrence and interaction, all easily achieved with a single device.

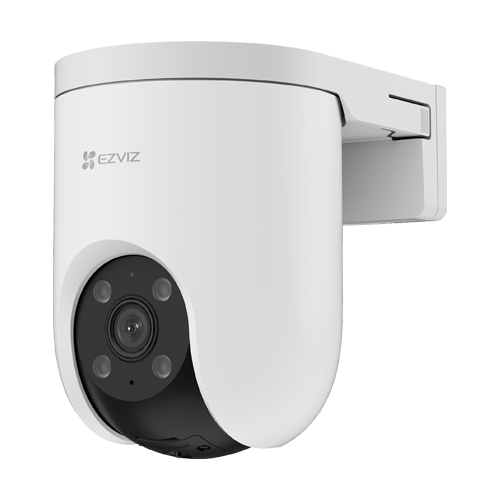

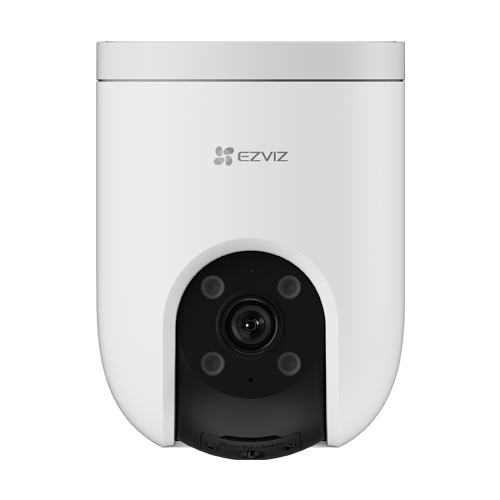

Technical specifications of IP camera PT 8MP Audio – EZVIZ CS-H8c-8MP:
- Model / manufacturer: EZVIZ
- Image sensor: F1.6 @ 1/2.7″ progressive scan CMOS
- Resolution: 8MP (3840 × 2160)
- Video compression: H.265/H.264
- Illumination distance: White light up to 20 meters and IR up to 30 meters
- Lens: 4mm, viewing angle 91
- Wi-Fi: IEEE802.11b, 802.11g, 802.11n, 2.4Ghz
- Audio: built-in microphone and loudspeaker, bidirectional communication
- PT Race: Pan: 350; Tilt: 80
- Recording: Micro SD, up to 512 GB (not included), EZVIZ CloudPlay storage
- Smart functions: AI-powered human/vehicle shape detection, Automatic people tracking, Alarm and strobe warning, Smart integration with Google Assistant and Amazon Alexa, etc.
- Power supply: DC 12V/1A (power supply included)
- Operating temperature: -30 ~ 50 C, weather resistance
- Dimensions: 100 × 136 × 140 mm
- Weight: 539.7 g.
- Box Contents – H8c-8MP Camera – Drilling Template – Screw Kit – Waterproof Kit – Power Adapter – Quick Start Guide – Regulatory Information
