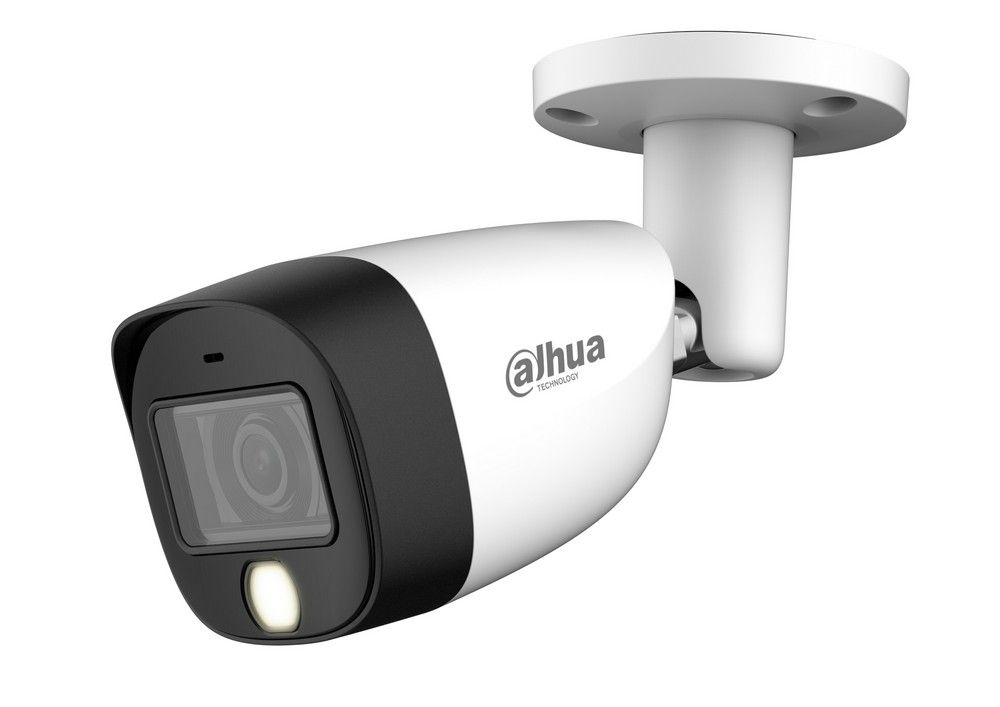

Dahua surveillance camera 5MP Dual Light IR 20m WL 20m microphone lens 3.6mm – HAC-HFW1500CMP-IL-A-0360B-S2
Image sensor | 5MP CMOS |
Max. Resolution | 2880 (H) × 1620 (V) |
Scanning system | Progressive |
Electronic shutter speed | PAL: 1/25 s1/100000 s NTSC: 1/30 s1/100000 s |
Min. light | 0.05 lux@F1.6 (color, 30 IRE) 0.005 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) |
Lighting distance | IR: 20 m (65.62 ft) Warm light: 20 m (65.62 ft) |
Illuminator on/off control | Auto/Manual |
Illuminator number | 1 (warm light); 1 (IR light) |
Angle adjustment | Bread: 0360 inclination: 090 Rotation: 0360 |
Type of lenses | Fixed-focal |
Lens mount | M12 |
Focal distance | 3.6 mm |
Max. Opening | F1.6 |
Field of view | 3.6 mm: H: 92; V: 48; D: 109 |
Iris control | Fixed |
Close focus distance | 3.6mm: 1.3m (4.27ft) |
Video frame rate | CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps; NTSC: 5M@25fps; 4M@30 fps; 1080p@30fps HD: PAL: 4M@25 fps; NTSC: 4M@30fps television: PAL: 4M@25 fps; NTSC: 4M@30fps CVBS: Chipboard: 960H; NTSC: 960H |
Resolution |
5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960×576/960×480)
|
day night | Auto(ICR)/Color/B/W |
BLC | BLC; HLC; DWDR |
WDR | DWDR |
White balance | Cars; White balance in the area |
Get control | Auto/Manual |
Noise reduction | 2D NO |
Video output |
CVI/TVI/AHD/CVBS video output options via a BNC port
|
Audio input | Built-in microphone with one channel |
Power supply | 12 VDC ± 30% |
Energy consumption | Max 3.1 W (12 VDC, WLED on) |
Operating Temperature | 40 C to +60 C (40 F to +140 F) |
Operating humidity | <95% (RH), non-condensing |
Storage temperature | 40 C to +60 C (40 F to +140 F) |
Storage humidity | <95% (RH), non-condensing |
Protection | IP67 |
Case material | Metal |
product dimensions | 166.6mm × 69.7mm × 70mm |
DESCRIPTION
The Dahua DH-HAC-HFW1500CMP-IL-A camera is part of the Lite series, designed for high-quality monitoring at affordable prices, ideal for use in residential areas and SMB (Small and Medium Business) solutions. This series offers advanced technologies such as full-color lighting and starlight for different scenarios.
One of the notable features is quality audio transmission via coaxial cable, with unique processing and transmission technology that reduces noise and ensures sound quality. Smart Dual Light allows cameras to automatically switch from white to infrared lighting, reducing light pollution.
IR illuminator and white light
Dual Light cameras are equipped with an IR illuminator for low-light conditions and a white light for capturing color and detail in dark conditions.
IR mode openThe IR light is always on and video images remain black and white (at night).
|
White light modeThe white light is always on and the camera captures color images 24/7. |
The intelligent Super Adapt algorithm automatically adjusts camera parameters to deliver optimal performance and clear images, while IP67 protection ensures resistance to dust and water. The camera is designed to function normally even when submerged in water for up to 30 minutes at a depth of 1 meter.
The camera supports four signals through a coaxial cable: video, audio, data and power. HDCVI provides real-time long-distance transmission, supporting up to 700 meters for 2MP/5MP/8MP HD video over coaxial cable and up to 300 meters over UTP cables.
Technical features include a 5MP CMOS sensor, a maximum resolution of 2880×1620, and an illumination distance of 20 meters for both white and infrared light. The camera is compatible with CVI, CVBS, AHD, and TVI, offering 5M, 4M, 1080p, and 960H resolution, with various lighting modes including Auto(ICR), Color, and B/W.
The camera is equipped with various useful functions for monitoring, such as gain control, noise reduction, and multi-language OSD. It has an integrated microphone and an IP67 protection stand. This camera can be mounted on a wall, ceiling, or vertical pole, providing flexibility in installation.
