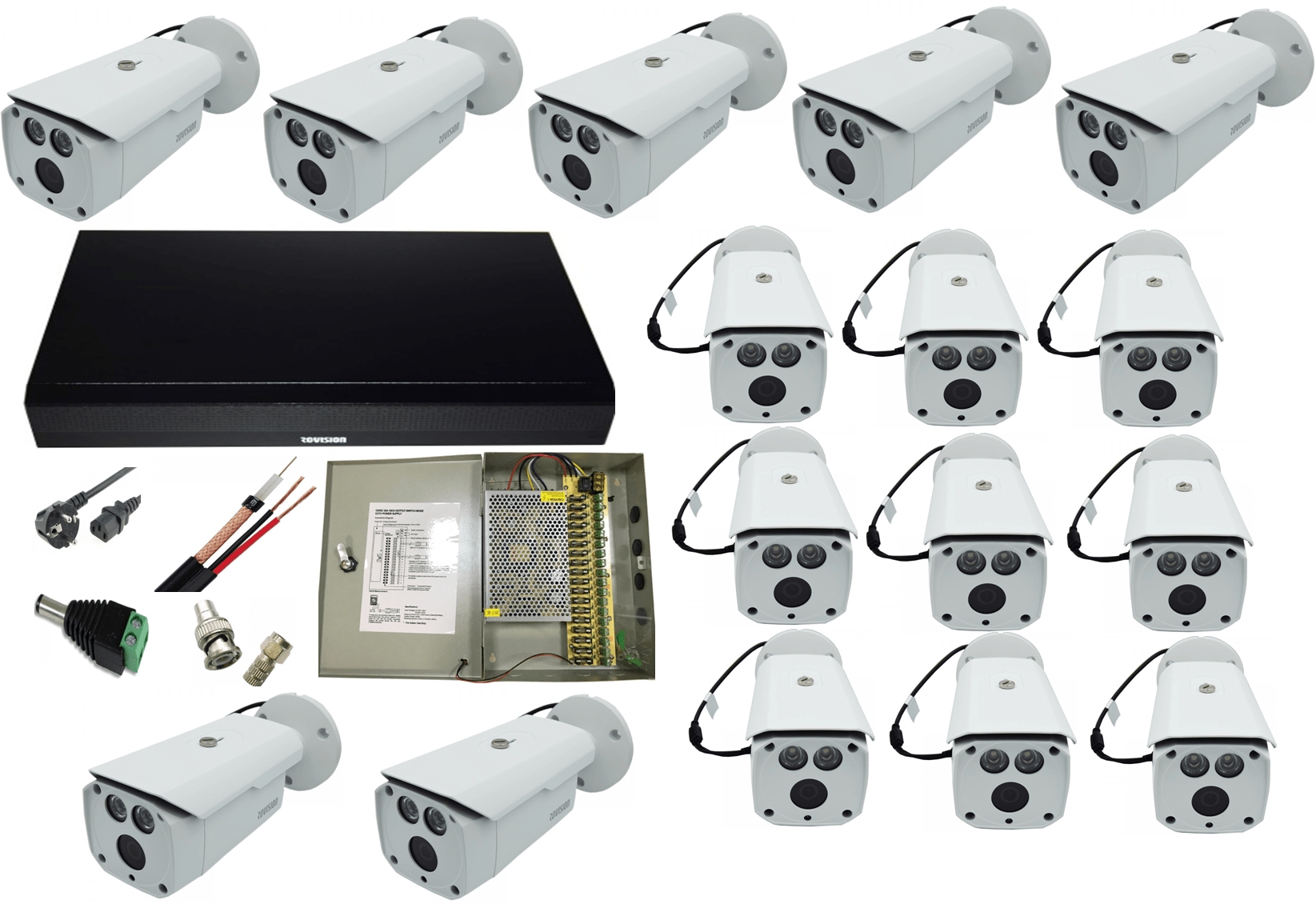

The system contains:
– 16 x outdoor surveillance cameras smart Rovision ROV1200DP 2MP IR 80m 3.6 mm lens metal housing IP67
– Dvr pentabrid ROV1B16H 5MP Rovision 16 channels H265
– RG 59 coaxial cable 100% copper 2×0.75 mm supply reel 305 m
– Power supply in metal box with 18 outputs 12V 20A shared
– 32 BNC plugs
– father power sockets 16
– source power cable

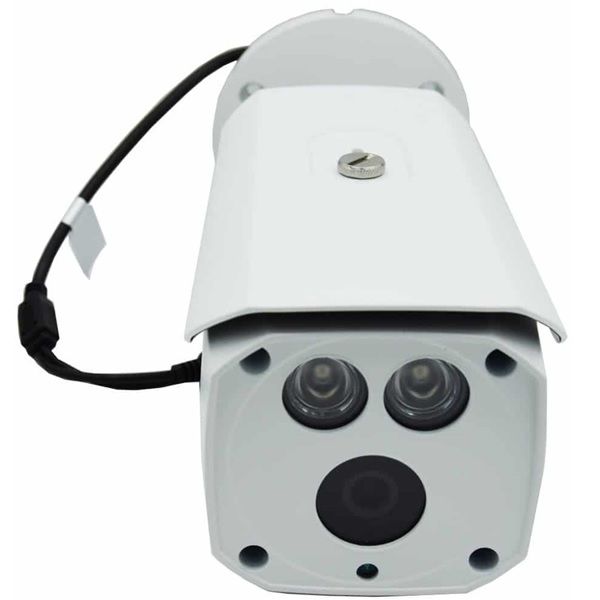

Rovision outdoor surveillance cameras smart ROV1200DP 2MP IR 80m 3.6 mm lens metal housing IP67
Outdoor Camera Rovision has a 2 MP CMOS sensor, Full HD 1080p recording. It has a metal housing, so resistance to weather conditions, and the attempts of vandalism. This camera records Full HD 1080p at 25 frames per second and 720p HD resolution at 25/50 frames per second.
The camera has a fixed 3.6 mm lens which allows a wide viewing angle of 89,9º. Thus, this camera captures will be a much larger portion of the area to be monitored and you get an overview. Moreover, it is a camera that records high quality images even at night or in low light is equipped with infrared LEDs that allow registration for an a distance of 80 meters.
The camera supports transmission on coaxial cable, long distance up to 500 meters.
OSD and useful features
The camera is equipped with OSD menu. This menu allows you to change certain image settings according to your needs. Thus, according to the camera position or the details that matter to you, you can adjust the settings to get the perfect result.
The camera also has a number of useful features that guarantee sharp images with defined details:
DWDR – function that allows increased brightness in dark areas of the picture for high-quality images;
AWB – allows you to adjust white balance to render color as real;
AGC – This function allows the camera’s video signal amplification inconditii low lighting or decrease its intensity when the light is strong;
• BLC – feature that the camera will play back images with balanced and uniform illumination; This function becomes active when the background is brightly lit – which dark elements in the foreground;
• 2DNR – With this function, you get images without the “fleas”, even in low light conditions.
Main features :
Resolution 2MP (1080p – 1920×1080)
CMOS technology – Sensor 1 / 2.7 “;
Day / Night (ICR), AWB, AGC, BLC, 2DNR, DWDR
3.6 mm fixed lens with horizontal viewing angle – 89.9 degrees;
IP67 protection – resistance to dust and water jets;
Smart IR – maximum distance 80m;
Operating temperature – -30 to +60 degrees Celsius.
Supply 12Vdc / 1A maximum consumption 6.8W.
Dvr pentabrid ROV1B16H 5MP Rovision 16 channels H265
Penta flange 16 channels 5M-N / 1080P Digital Video Recorder Cooper 1U
Video compression H.265 dual-stream
& Gt; Supports video inputs HDCVI / AHD / TVI / CVBS
& Gt; Max 24 channels IP camera inputs, each channel up to 6MP; The maximum bandwidth of 96Mbps
& Gt; Long distance transmission over coaxial cable
& Gt; Supports one SATA HDD, up to 6 TB, not included
& Gt; Intelligent search and smart video
hard disk you can purchase here.
Smart Codec, H.265 can reduce up to 90% bit rate and storage requirements compared to H.264 without having to invest in us
HDCVI / AHD / TVI / CVBS
XVR front camera can automatically recognize the signal without any settings. Make friendlier and more convenient operation.
Join HD camera
room HDCVI XVR supports up to 5MP. Audio coaxial / Upgrade / Alarm integrated design can reduce cabling problems making it more cost effective and more convenient to install.
This function includes overlapping and search for information about tickets POS which can be used widely in retail programs.
HDCVI system supports transmission over long distances via coaxial and UTP, max. 700m to 4K / 4MP, 800m and 1200m for 720P to 1080P.
Intelligent Video System (IVS)
With intelligent video analytics built XVR has the ability to detect and analyze moving objects for enhanced video surveillance. XVR offers optional standard intelligence to the edge, to detect behaviors more objects such as abandoned or missing items. IVS also supports Tripwire analyzes, allowing the camera to detect when the last line has been predetermined.
It is a typical technology used in a variety of applications for search and identification of individuals.
It helps to get more video motion detection in a short time by drawing a region playback. It is very useful when an emergency occurs.
The DVR can be easily connected to the internet via the GDMSS (android) or IDMSS (IOS)
The tutorial complete with the necessary settings for configuring mobile applications can be found in the link below:
Manual Dahua DVR Rovision by
Power Supply in metal box with 18 outputs 12V 20A shared
Features switching power supply 12V 20A stabilized with 18 outputs protected:
Input voltage: 90-240AC 50-60Hz
protected individual outputs 18 channels protected by fuses
Output voltage: 12V, 20A max (1.5-1.6 / channel)
Input voltage: 90-240AC 50-60Hz
Housing: metal clasp
Overload protection, overvoltage, short circuit, sabotage.
RG 59 coaxial cable 100% copper 2×0.75 mm supply reel 305 m
2X0.75 power cable RG 59 coaxial with copper drum 305 meters 100%
COOPER + 0.81mm FPE + Aluminum foil + braid + 48 * 0.12mm PVC jacket ACC, ACC power with 2 * 0.75mm PVC cable jacket with

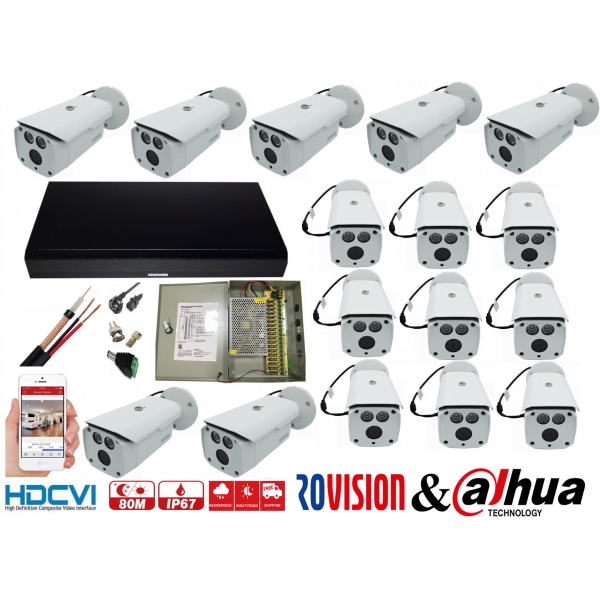

Surveillance Kit Rovision containing 16 high quality professional cameras for outdoor and DVR with 16 channels support up to 5MP cameras. Both technology and product components of this system are Dahua. This system contains all accessories to be put into operation, HDD is optional.
