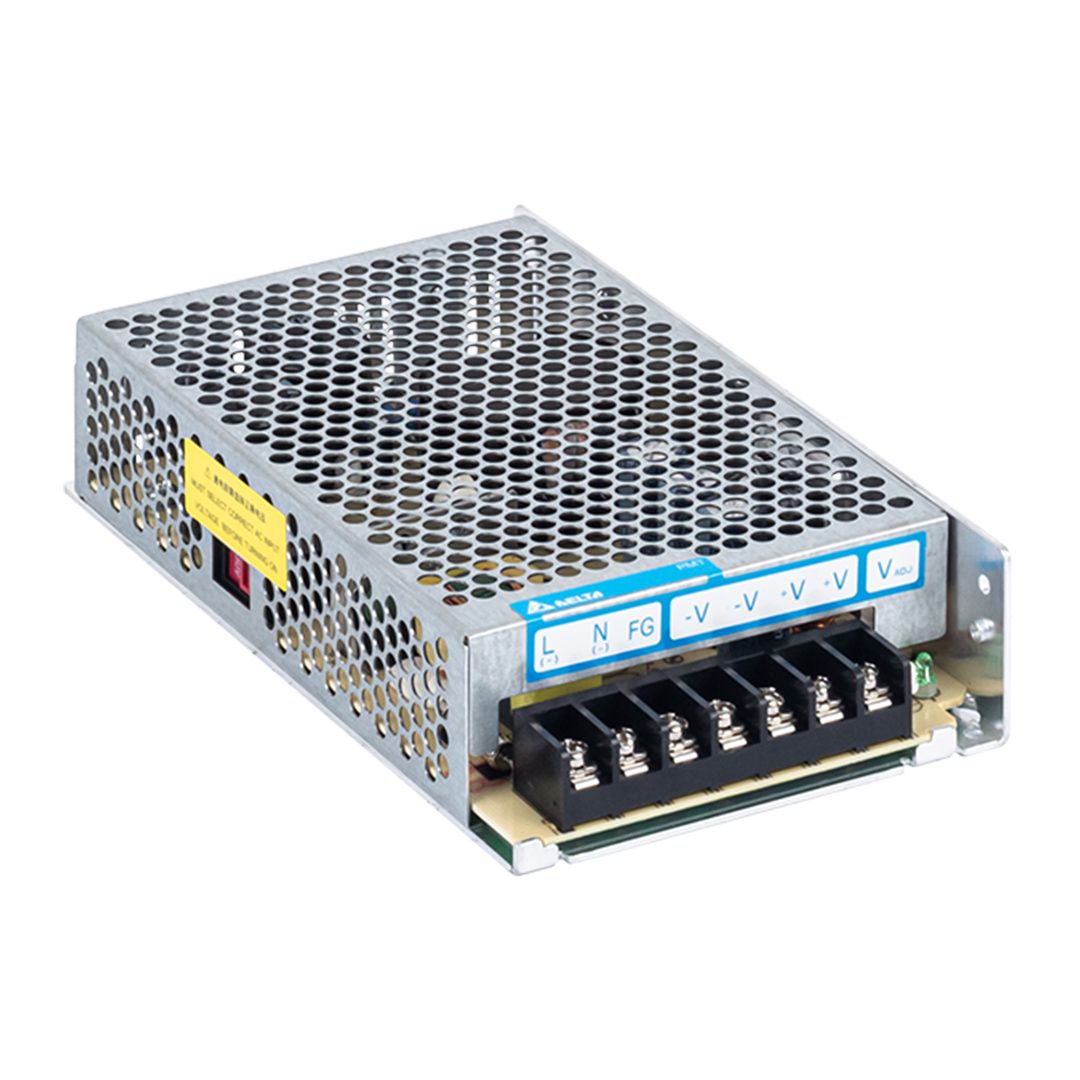

Professional power supply 12V 12.5A 150W PMT-12V150W1AA Delta Electronics
Out of stock
Without VAT
€11,23
Out of stock
The new PMT series of panel mount power supplies is the latest offering from one of the world”s largest power supply manufacturers and solutions providers – Delta. The product offers a wide operating temperature range from -10°C to +70°C and can withstand shock and vibration (according to IEC 60068-2-27 and IEC 60068-2-6 respectively). In addition to features such as surge and overload protection, Delta”s PMT series of panel mount power supplies are different from many other brands at the same price level. The PMT Series is designed for cost competitive markets without compromising component quality and product specifications. The product line has an estimated lifespan of 10 years. This versatile series has three different connector options (Terminal Block, Front Face and Cabl) and can also be converted to L Frame (PML) power supplies to meet different application needs.
|
Rated input voltage |
100-120 Vac, 200-240 Vac (Switch Selectable) |
|
Input voltage range |
90-132 Vac, 180-264 Vac (Switch Selectable) |
|
Nominal input frequency |
50-60 Hz |
|
Input frequency range |
47-63 Hz |
|
The input current |
< 3.00 A @ 115 Vac, < 2.00 A @ 230 Vac |
|
100% load efficiency. |
> 86.0% @ 230 Vac |
|
Maximum starting current (cold start) |
< 45 A @ 230 Vac |
|
Leakage current |
< 0.5 mA @ 240 Vac |
|
Rated output voltage |
12 Vdc |
|
Factory setpoint tolerance |
12 Vdc ± 1% |
|
Output voltage adjustment range |
11.4-13.5 Vdc |
|
Output current |
12.5 A (150 W max.) |
| Power output |
150 W |
|
Line regulation |
± 0.5% typ. (@ 100-132 Vac & 200-264 Vac) |
|
Loading rule |
± 0.5% typ. (@ 100-132 Vac & 200-264 Vac ) |
|
PARD** (20MHz) |
< 120 mVpp |
|
Growth time |
< 30 ms @ 115 Vac, < 20 ms @ 230 Vac (100% load) |
|
Start-up Time |
< 1200 ms @ 115 Vac, < 800 ms @ 230 Vac (100% load) |
|
Holding time |
> 20 ms @ 115 Vac, > 24 ms @ 230 Vac (100% load) |
|
Dynamic response |
± 5% @ 0-100% load |
|
Starting with capacitive loads |
8,000 µF Max |
