Passive PoE Extender POE05-2, 2 output ports, 100m, 15W/port, IEEE 802.3af/at, plug-and-play

Passive PoE Extender POE05-2, 2 Output Ports, 100m, 15W/port, IEEE 802.3af/at, plug-and-play

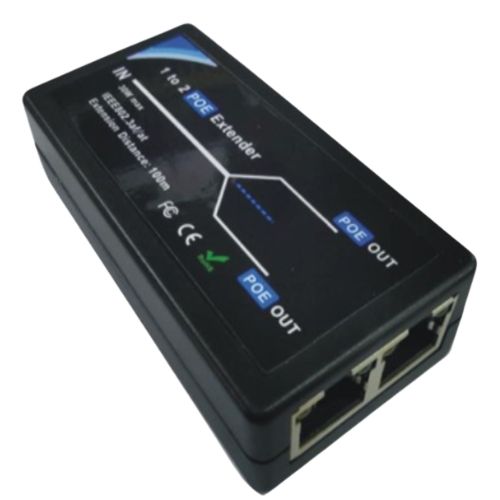

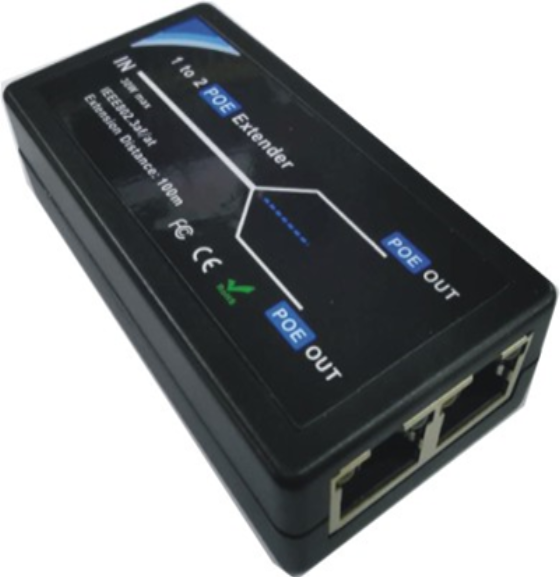

POE05-2 is a passive PoE extender with two output ports, ideal for extending IP CCTV networks up to 100 meters via Cat5 or better UTP cables. The device is compatible with IEEE 802.3af/at standards and allows powering two devices with up to 15W each, using a single 30W PoE source.

Stable and efficient PoE extension

Operating as a repeater, POE05-2 retransmits both data and power, extending the signal for two channels. With a switching capacity of 400 Mbps and a buffer of 48 bytes, it ensures a smooth and reliable connection in extended networks.

Compatibility and safety

The device is equipped with 3 10/100 Mbps LAN ports: 1 input port and 2 output ports. The incorrect installation detection function and plug-and-play mode simplify the installation process and protect connected equipment against connection errors.

Compact and versatile design

With reduced dimensions of only 90 x 45 x 22 mm, POE05-2 is easily mounted in tight spaces. It operates in the temperature range -10C ~ +45C and humidity between 10% and 90%, without condensation, making it suitable for various usage scenarios.

Main technical specifications

• LAN ports: 3 x RJ45 10/100 Mbps (1 input, 2 outputs)
• PoE Standard: IEEE 802.3af/at, 10/100 BASE-TX
• Input power: 30W
• Output power: 15W / port
• Maximum extension distance: 100 meters
• Switch capability: 400 Mbps
• Buffer: 48 Byte
• MAC address table: 2K
• Compatible with Cat5 or better UTP cables
• Operating temperature: -10C ~ +45C
• Dimensions: 90 x 45 x 22 mm

Advantages

• Simple extension of the IP network without additional power supply
• Supports simultaneous powering of two PoE devices
• Plug-and-play installation with incorrect connection protection
• Compact and easy-to-integrate design
• Extensive compatibility with network devices and protocols
