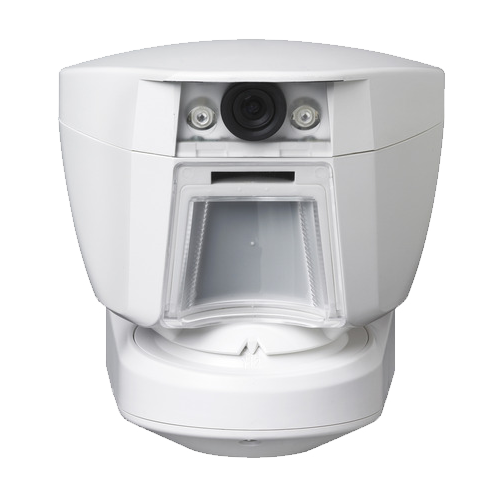

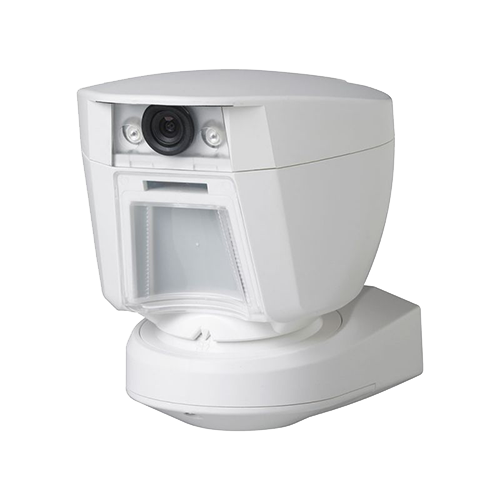

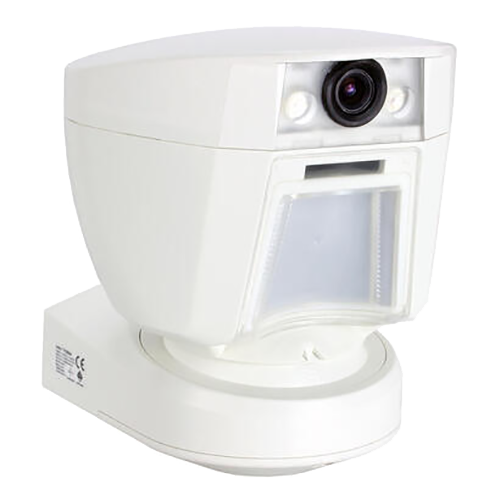

Outdoor PIR detector, wieless (Power G), with integrated IR camera having the following advantages:
- With the help of Octa-Quad technology, it minimizes false alarms (8 independent PIR sensors, operated in QUAD configuration);
- The camera covers a detection spectrum of 12m/90°;
- Visual verification through image captures (10 successive images);
- Optimal performance even in conditions of snow, rain, wind or direct light;
- Robust housing and patented anti-masking protection;
- Remote maintenance, configuration and testing through the system keyboard;
- Easy installation thanks to the LED indicator that signals the ideal position;
- PET immunity up to 18 Kg;
- Compatible with Neo Power Series systems.
Model / manufacturer: DSC
Tamper: Double yes
Power supply: 2 x 3V CR17450 (Lithium)
Battery life: typically 3 years
Frequency: 868 MHz
Detection range: 12 m
Detection angle: 90°
Installation height: 1.5-3.0m (optimal at max. 2.4m)
Immunity: to changes in atmospheric conditions to white light (min. 25000 lux)
Weight: 700g.
Operating temperature: -40°C to +70°C
Dimensions: 166 x 147 x 124 mm
Camera resolution: 320 x 240 QVGA pixels up to 2 fps
White light: minimum 25000 lux
“
