Technical Surveillance system:
Surveillance Camera Resolution
Full HD 2-2.4 MP
Number of rooms / kit
Surveillance Kit Type
IR – Infrared
Hybrid 5 in 1
Other features room
More details Video surveillance system:

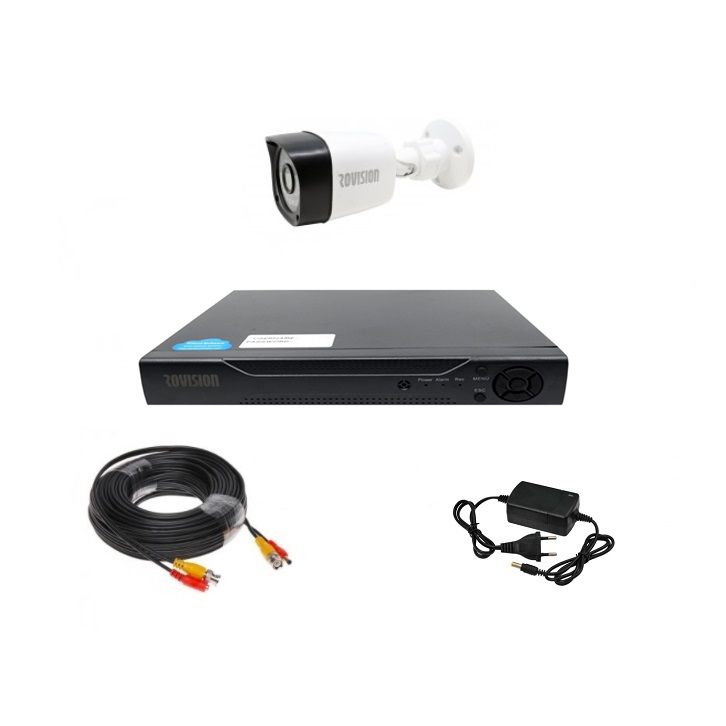

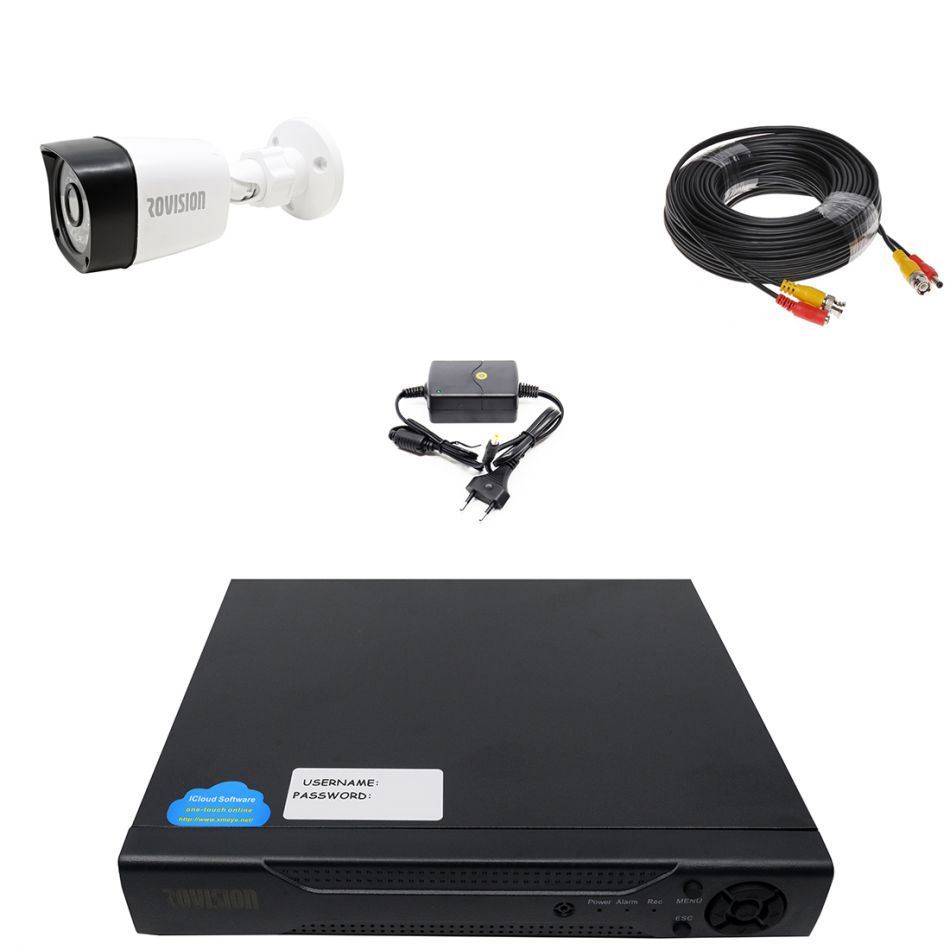

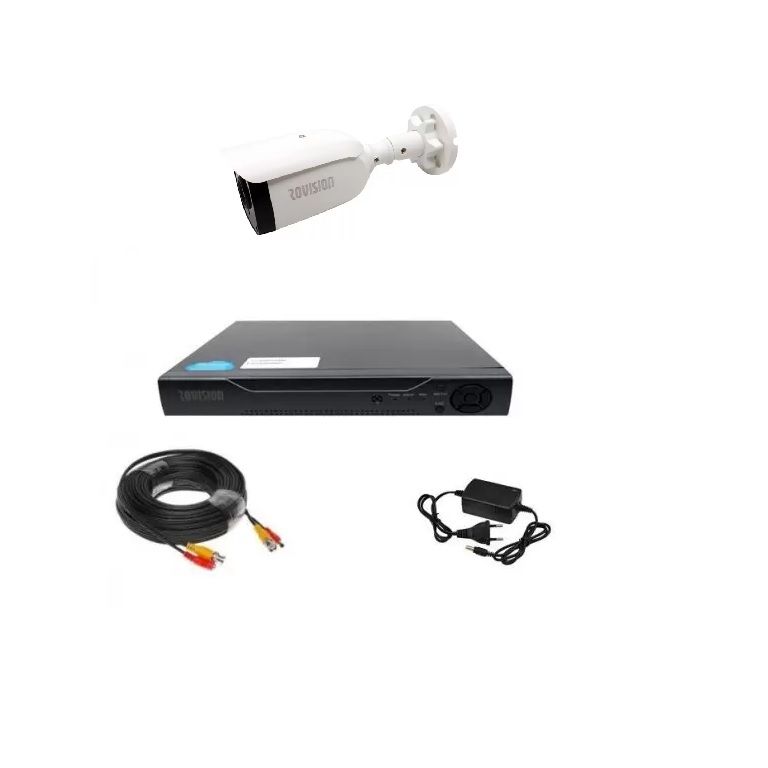

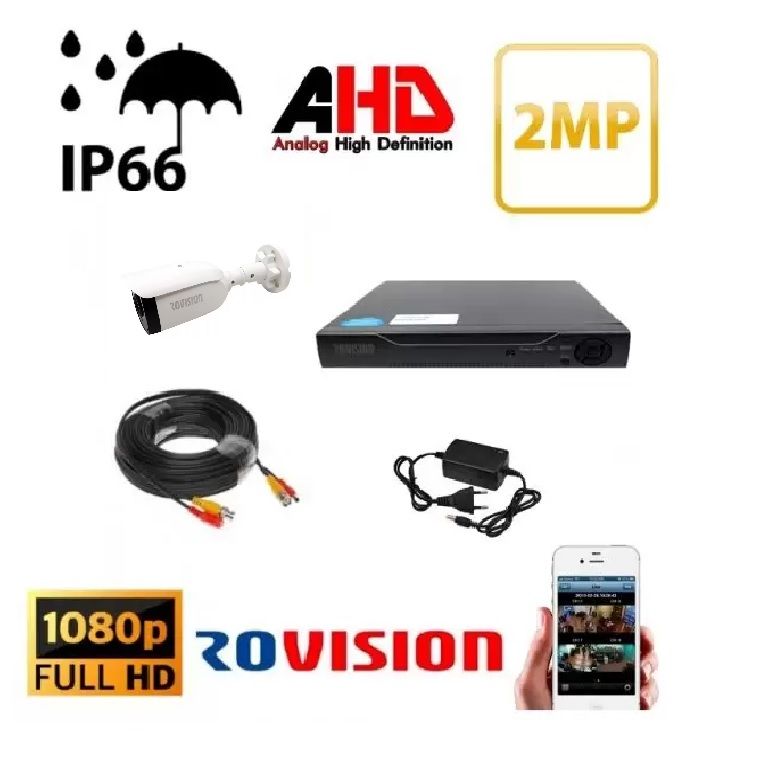

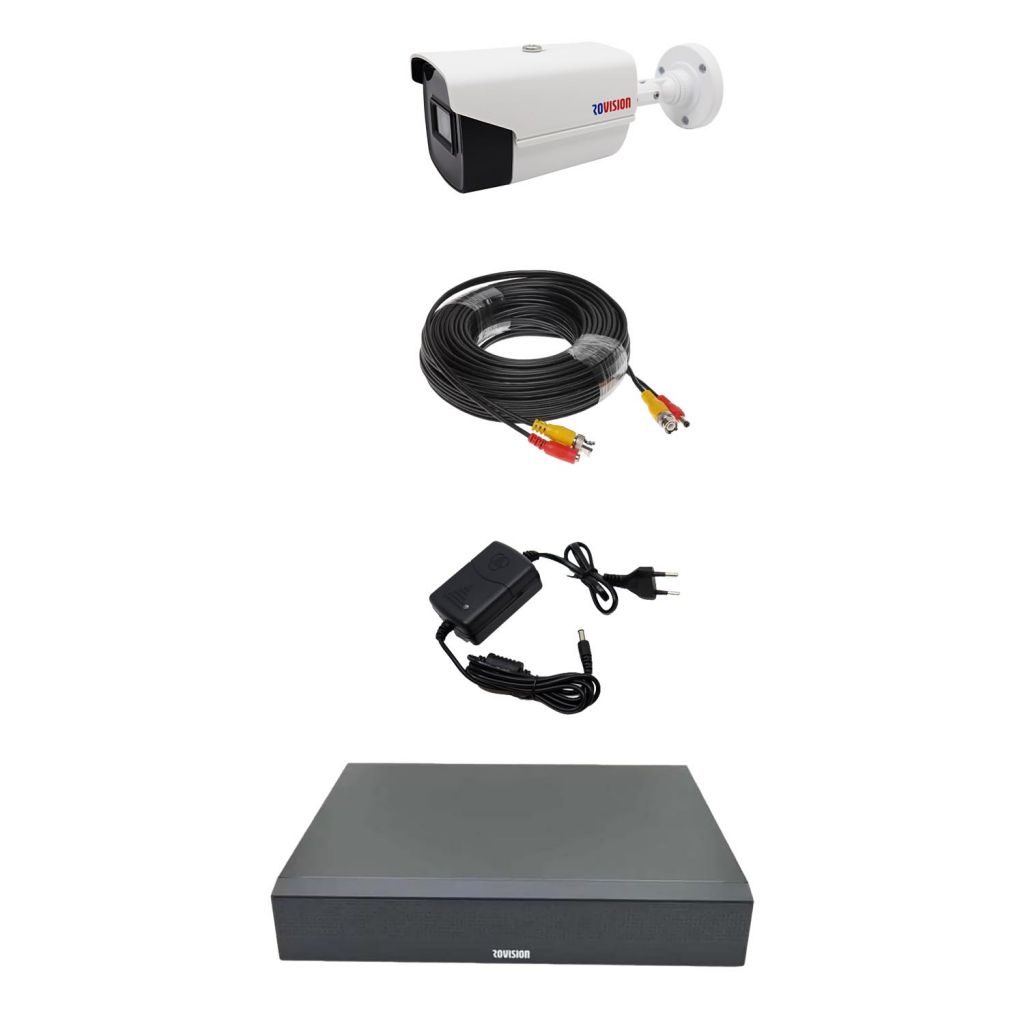

The system contains:
1 x outdoor surveillance cameras 1080P full HD AHD ZAN30W 20m IR-200
1 x DVR ROV504 5 megapixel N 4 channels Rovision 6 in 1 compression H265 (can be added three rooms)
1 x Power supply, power supply 12V 2A

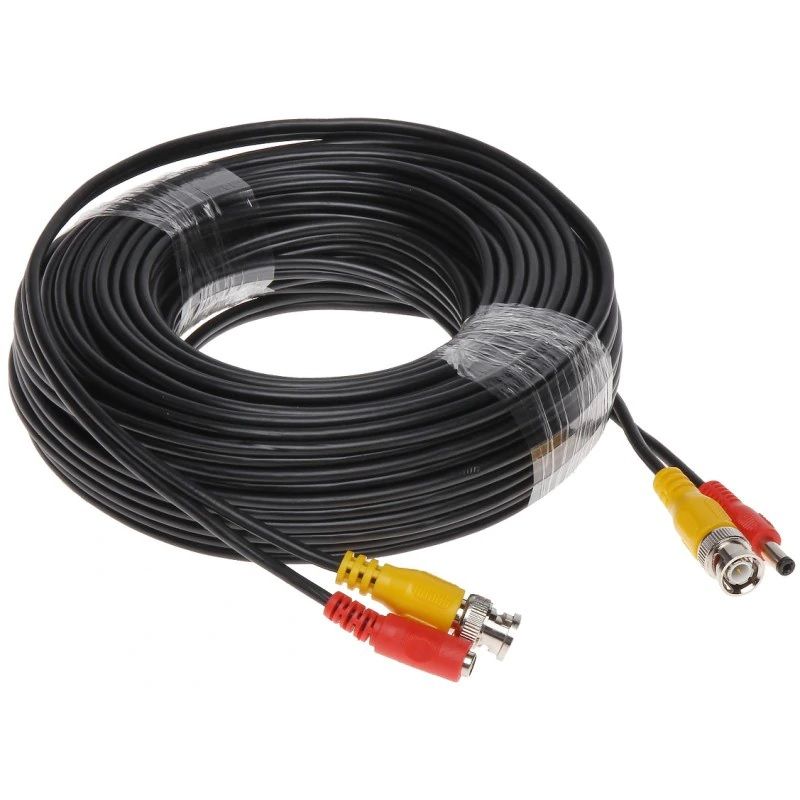

1 x 10 m cable crimping surveillance
(Kit does not contain Saved HDD storage, it can be purchased separately from the HERE )

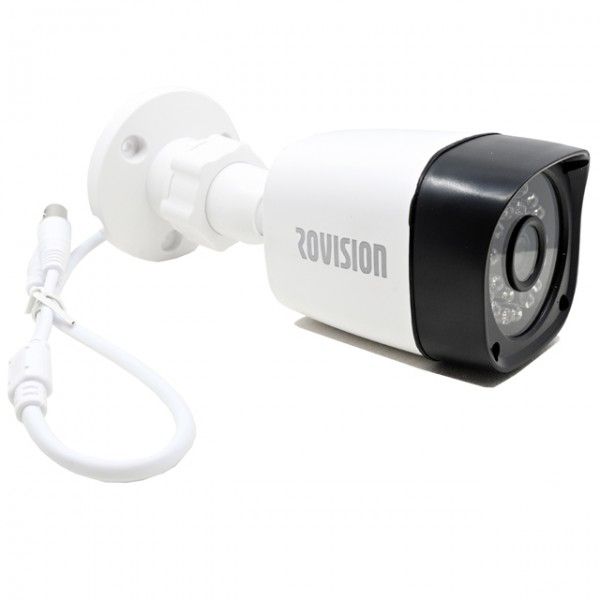

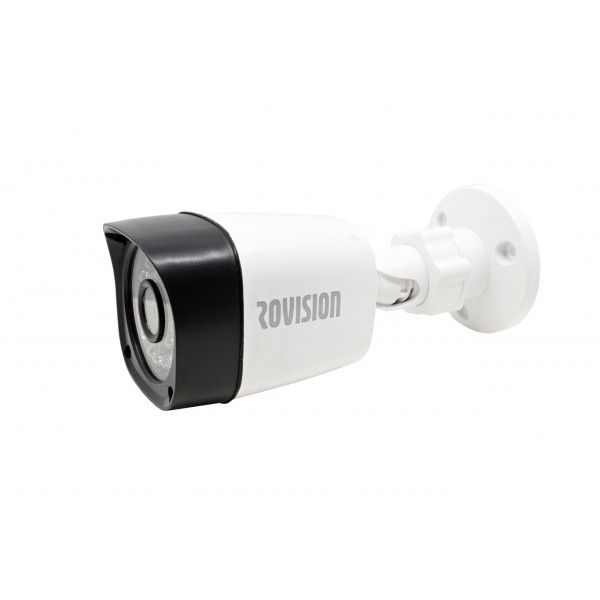

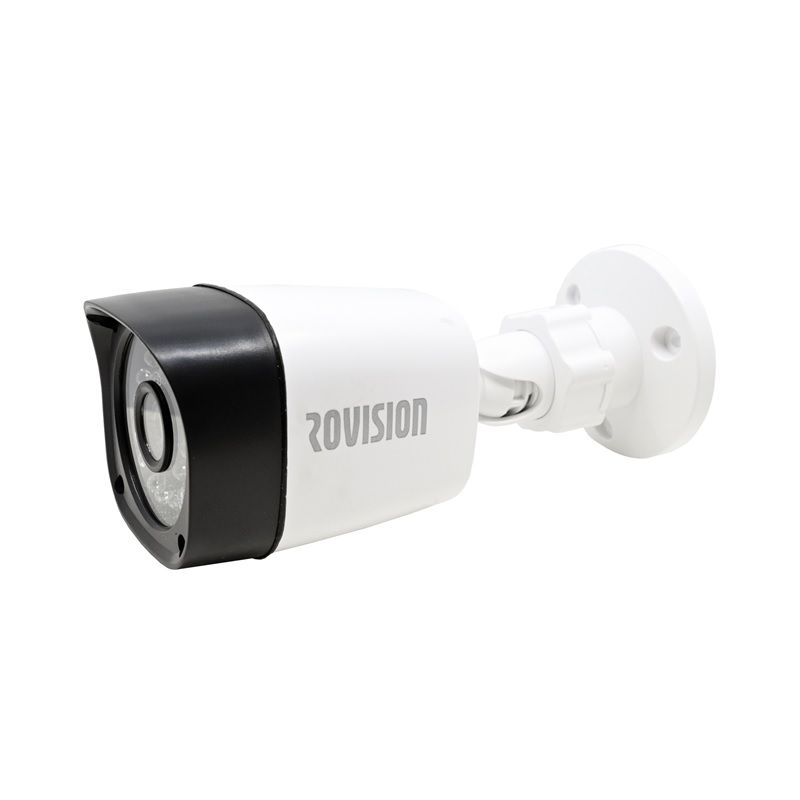

ZAN30W-200 is a surveillance camera for outdoor full HD 1080p lens fixed 20m infrared technology AHD.
Building on AHD, Surveillance Camera ZAN30W-200 is suitable for outdoor installation. It’s class weather protection IP66 , which can operate in temperatures ranging between -20 to +50 degrees Celsius. It includes a sensor 1 / 2.9 ” CCD Aptina FH8536 (V30E) + AR0337, 1920×1080 resolution being . It can transmit up to the maximum distance of 500m.
The camera comes with 3.6 mm fixed lens, which is useful for areas where objects are far away from the camera. This, along with special construction with plastic case metallic recommend room to monitor inputs in institutions or buildings, parking lots, shopping centers, garages office buildings.
room construction remark that improve performance LEDs 24 of the chamber during the night. IR sensor allows visibility of objects in the dark up to 20m.
It comes with the Backlight compensation , it can compensate for background lighting, the camera automatically optimizes exposure. It also has the function IR-Cut filter , that provides color images during the day. With the decrease in light during the day, the camera automatically switches to night mode using infrared light to provide black and white images of high quality.
We note function white balance camera that allows color adjustment so that the colors look more natural.
List functions continue to sensor present included , which increases versitilitatea room and allows shooting only motion detection.
Surveillance Camera Outdoor Weatherproof HD-200 ZAN30W CRIS 36 200N
Sensor 1 / 2.9 “CCD Aptina FH8536 (V30E) + AR0337
resolution of 1080P / 2MP
Low illumination 0.01Lux
transmission distance up to 500 m
fixed lens, 3.6 mm
metallic plastic casing
LED 24 pcs
infrared distance 20 m
operating temperature -20C + 50C
12V ± 10%, 450mA
Size 82mmx251mm (L)

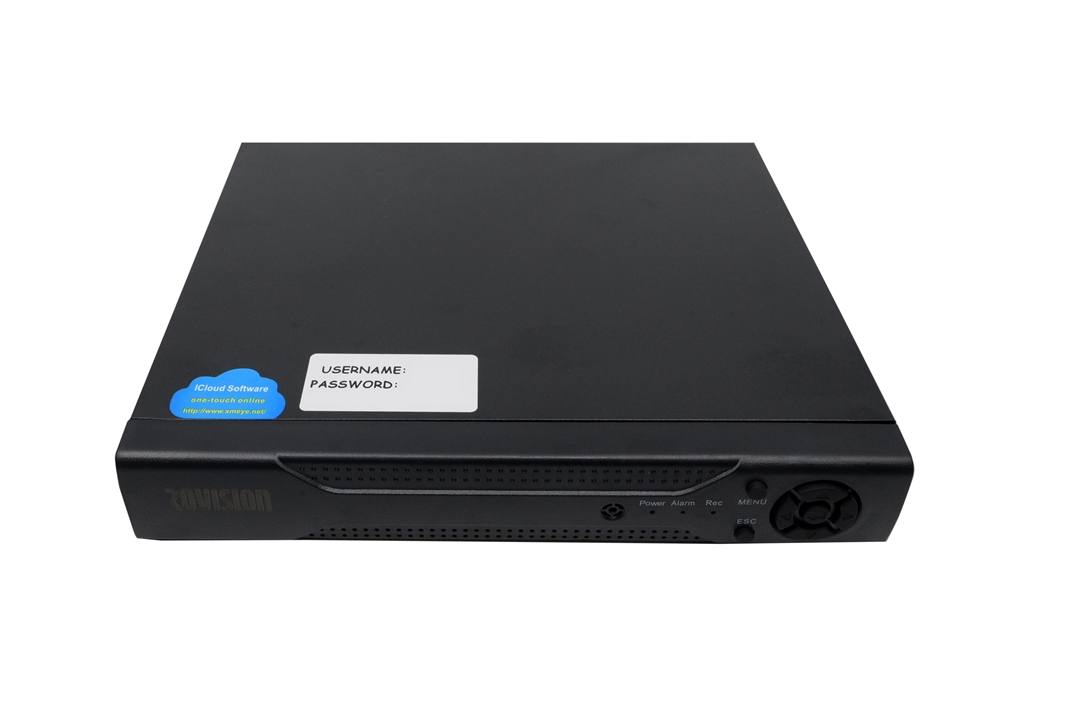

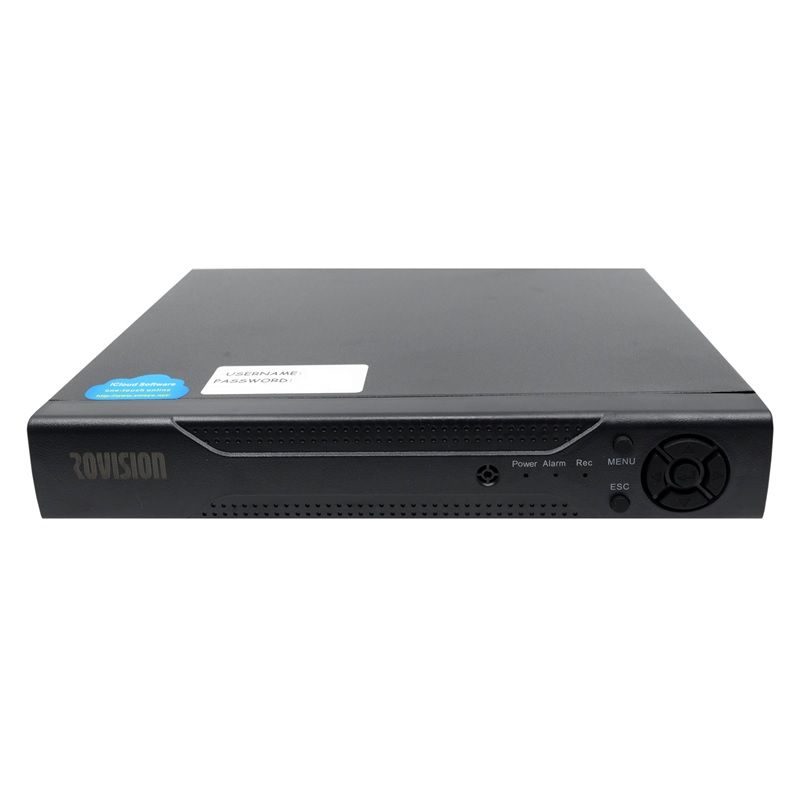

5 megapixel ROV504 DVR technology AHD-N 4 channels H.265 compression Rovision 6 in 1 AHD works with any chamber until 5 megapixels.
using an intuitive graphical interface icons
View real-time 25fps per channel at 1080P resolution and 5MP cameras AHD-N on all channels
Register 1080P / 14fps, 720P / 25fps, 960H / 25fps
Video compression H.265X (reduce file sizes and enable longer periods)
Storage HDD (up to 6TB) is not included
own software for live viewing on your phone by using the Cloud application downloaded from the app store for the phone
Ports VGA and HDMI for connecting to any TV / monitor
USB ports for peripherals and fast backup USB
RJ45 port for connecting to the Internet
Power 12V / 2A
Bolts for fixing HDD
Power 12V / 2.5A
energy consumption & lt; 15W (faraHDD)
Working Environment: Temperature: 0 ℃ – + 55 ℃, Humidity: 10% -90%, Atm: 86kPa-106kPa
Size 233x210x45 mm
Weight 510 g (without HDD)
Works with any cameras up to 5 megapixels AHD
ROOM efficiency in the dark
Because the image sensor art working with IR illuminator integrated cameras provide clear images without interference and in low light or nonexistent.
LIVE ON MONITORING TELEPHONE / PC / tablet
With some settings you will have access anywhere, via the internet, the video system using any smartphone, tablet, PC. You can watch live cameras or access stored records.
professional surveillance kit, very good price quality ratio, easy to install and configure with all accessories included. This kit can be added three rooms.
video surveillance sticker Add Rovision
