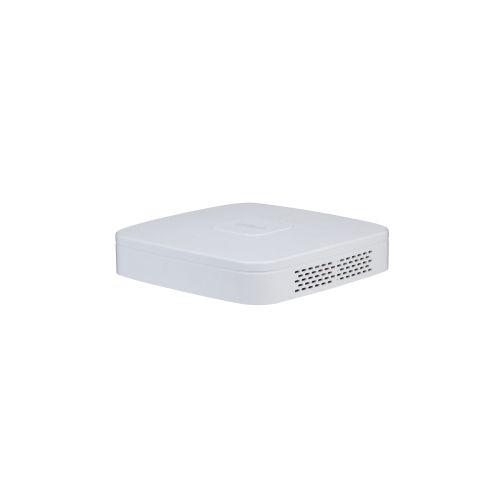

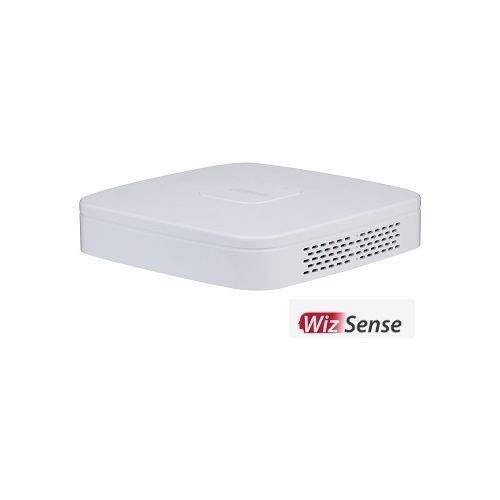

NVR Dahua WizSense NVR2104-I of the 4-channel 12MP, 80Mbps

NVR Dahua NVR2104 WizSense AI-I, 4-channel IP, Max. 12MP, 1xSATA, 1 VGA / HDMI 1 simultaneously, maximum resolution 4K HDMI, 1 RJ45 (100M), 2 USB
& gt; New user interface 4.0
& gt; Remote monitoring, live video and playback video on mobile app
& gt; Max. Decoding capacity: 4 × 1080p @ 30fps. Supports decoding adaptive
& gt; Supports ONVIF main rooms and RTSP protocols
& gt; H.264 / .H265 / Smart H.264 + / H.265 Smart + / MJPEG, H.265 automatically switch
& gt; One simultaneous video output VGA / HDMI 1 by default, the maximum resolution of HDMI 4K; and non-simultaneous video output is also supported, maximum resolution is 1080P
& gt; Face detection and recognition of the one channel (IA by NVR); or 2-channel perimeter detection (IM by NVR); or 4 channels MDS (IM in NVR); up to 10 database to 5000 images of the front and
& gt; Security Basic 2.1
Specifications:

system

Main Processor
industrial grade embedded processor

OS
Linux Embedded

Interface operating
Web / GUI operating local

Video

Channel Access
4 channels

bandwidth network
80 Mbps access 80 Mbps to 60 Mbps for storage and forwarding

Resolution
12M / 8M / 5M / 4T / 3T / 2T / 720p / D1

Capacity decoding
1 channel 8MP 30fps
4 channels 1080p @ 30fps

Output video
1 Simultaneous video output VGA / HDMI 1 by default, the maximum resolution of HDMI 4K

Multi-Screen Display
1/4

Third Party Access to room
ONVIF, RTSP

Compress

Video
H.264 / .H265 / Smart H.264 + / + Smart H.265 / MJPEG

Audio
PCM / G711 / G711U / G26 / AAC

Network

Network Protocol
HTTP, HTTPS, TCP / IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS

Access to mobile
Android, iOS

Interoperability
ONVIF (T section / profile S / G profile), CGI, SDK

Browser
Chrome, IE9 or above, Firefox

Record playback

Play multichannel
Play up to 4 channels

Recording mode
Priority Recording Mode: Manual Registration & gt; Alarm recording & gt; motion detection recording & gt; timer recording

Storage
local and network HDD

Backup
USB

playback function
1. Play, pause, stop, forward, backward fast rewind, play in the background
2. Full screen, Backup (cut / file), partial zoom, start / stop audio

SMD Plus

Performance
4 channels

Search AI
Search for target classification (human, vehicle)

Facial Recognition

Performance
Maximum Processing to 8 images / sec

Facial Recognition stream 1-channel video

Passing Stranger
Face Detection foreigners (not the face of the device database). Similarity threshold can be set manually

Search AI
Search to 8 face images of the target while the similarity threshold can be set for each target face image

Database Management
Up to 10 databases to 5,000 images in total. Name, gender, birthday, address, type of certificate, certificate number, and state ţările® can be added to each image of the face

Application Database
Each database can be applied independent video channels

Events triggering
Buzzer, inviting voice, Email, Snapshot, Recording, Alarm Out, PTZ activation etc.

Alarm Linkage
Video instantly log preset tour

Perimeter Protection

Performance
2 channel

Classification of objects
Recognize secondary human / vehicle and intrusion Tripwire

Search AI
Search for target classification (human, vehicle)

alarm

alarm triggered
motion detection, privacy masking, video loss alarm, PIR alarm IPC

Alarm anomaly
Device which disconnects the front, storage failure, storage full IP conflict, conflict MAC lock connection anomaly network security

Alarm Linkage
Video instantly log preset tour

External Port

HDD
1 Port SATA to 6 TB. The maximum capacity of the HDD according to the ambient temperature varies

USB
2 rear USB 2.0 ports

HDMI
1

VGA
1

Network
1 RJ – 45 (10/100)

RCA input
1

RCA
1

Parameter General

Power Supply
DC 12V, 1.5A

Consumption
Total output of NVR is ≤ 10W (without HDD)

Net weight
0.45 kg (0.99 lb)

product dimensions
204.6 mm × 206.4 mm × 48.1 mm (W x L x H)
8.06 inch x 8.13 inch x 1.89 inch (L × W × H)

Operating Temperature
-10 ° C to + 50 ° C

& nbsp;
hard disk for storing recordings is not included but you can choose from HERE.
