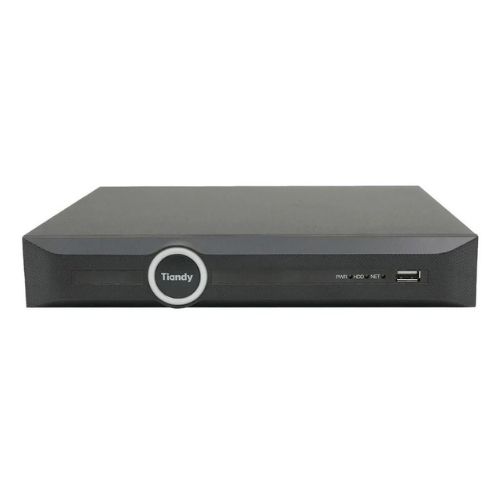

NVR 10 channels Lite series Tiandy TC-R3210-IBP8KV3.1, 8MP 4K, 8x PoE, 30W, AI functions, Audio support, 2x SATA slot

TIANDY
Availability:

In stock
Add to wishlist

Without VAT

€133,27

In stock

Bank transfer, Invoice with VAT or no VAT(VIES confirmation), VISA card, Mastercard credit card or cash on delivery. You can pay for your order comfortable cash on delivery in Bulgaria, Hungary, Greece, Poland, Slovakia, Slovenia, Czech Republic and Croatia. Easy Returns 14 days for return items. We ship from Europe. Shipping cost is starting at 10.64 euros without vat depending on the country and weight. Free shipping on orders over €500, oversized deliveries may incur additional shipping charges depending on product weight and dimensions

The Tiandy TC-R3210-IBP8KV3.1 NVR features 10 channels and supports resolutions up to 8MP, providing extremely clear images, ideal for capturing fine details. With a bandwidth of up to 64Mbps, this NVR allows live playback simultaneously with recording, ensuring optimal performance in the following configurations: 2 channels at 8MP (30fps), 2 channels at 6MP (30fps), 3 channels at 5MP (30fps), 4 channels at 4MP (30fps), 5 channels at 3MP (30fps), 8 channels at 1080p (30fps) and 10 channels at 720p (30fps).

Technical specifications Tiandy NVR 10 channels, 8xPoE, 8MP 4K – TC-R3210-IBP8KV3.1:

  • Access channel: 10
  • Input bandwidth: 160 Mbps
  • Output bandwidth: 64 Mbps
  • Resolution: 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Decoding preview: 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×10, 4CIF(30fps)×10
  • Playback decoding: 8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×10
  • Third-party camera access: ONVIF; RTSP
  • HDMI Output: Resolutions up to 4K (3840×2160, 30Hz)
  • VGA Output: Resolutions up to 1080P (1920×1080, 50/60Hz)
  • Multi-screen display: VGA and HDMI: up to 10 simultaneous windows
  • Audio input: 1 channel, 3.5 mm
  • Audio output: 1 channel, RCA
  • Bidirectional audio: 1 channel, 3.5 mm
  • Video: S+265; H.265; S+264; H.264
  • Audio: G711A; G711U; AAC; ADPCM_DIV4
  • Network protocol: IPv4/IPv6; HTTPS; SNMP; NTPs; RTSP; TCP/IP; UDP; And so on
  • Mobile phone access: Android; iOS; P2P
  • System Compatibility: ONVIF (Profile S/T/G); RTSP; SDK
  • Web: IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
  • Multi-channel playback: 10
  • Recording mode: Manual, scheduled, alarm
  • Storage method: Local HDD
  • Backup device: USB, network
  • Playback function: Pause, stop, slow, speed, digital zoom, etc.
  • Dual stream recording: Yes
  • Motion detection: Yes
  • Intelligent analysis: Tripwire, loiter, crowd detection, face detection, human/vehicle classification, etc.
  • HDD Capacity: Up to 10 TB per HDD
  • Disk group: 2
  • USB: 2×USB 2.0
  • HDMI: 1×HDMI (up to 4K)
  • VGA: 1×VGA
  • Network interface: 1×RJ-45, 10/100/1000 Mbps
  • SATA: 2×SATA
  • Alarm I/O: 4 inputs, 1 output
  • PoE interface: 8×RJ45
  • PoE budget: 120W
  • Power per PoE port: 30W
  • Standard: IEEE 802.3af/at
  • Power supply: 100~240V AC
  • Power consumption: <10W (without HDD and PoE)
  • Net weight: 2.85 kg
  • Dimensions: 440(L)×277(W)×47.5(H) mm
SKU: TC-R3210-IBP8KV3.1 Categories: ,
